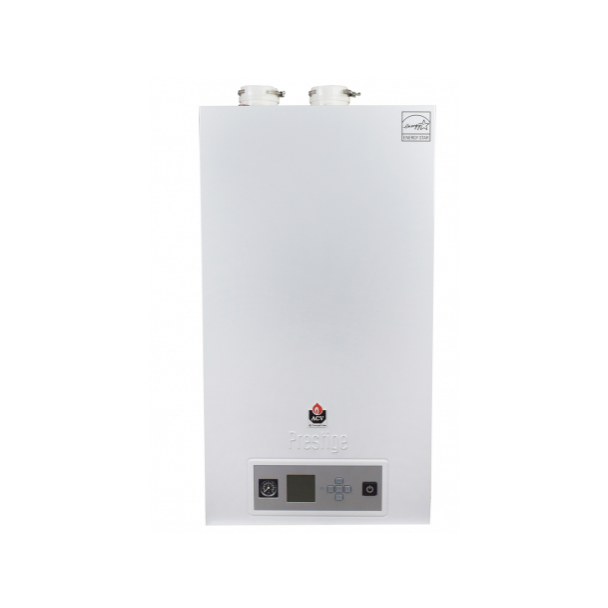

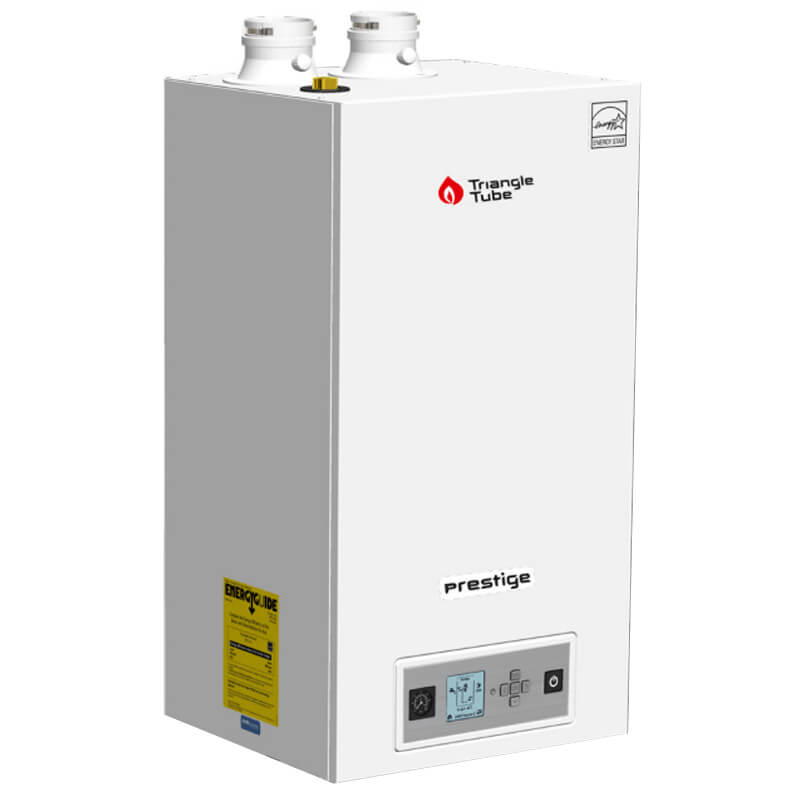

Triangle Tube PA299 Prestige Condensing Gas Boiler 278000 BTU (23 5/8 x 24 7/8 x 39 3/8 in)

Product Description

Triangle Tube PA299 is a wall-mounted Prestige Solo condensing gas boiler that delivers high-efficiency hydronic heating with a 95% AFUE and a DOE heating capacity of 278,000 BTU. The unit features a 439 stainless steel self-cleaning fire-tube heat exchanger, modulating burner with a 4.1:1 turndown, ACVMax control with outdoor reset capability, and an internal condensate trap for corrosion protection.

• 95% AFUE condensing operation with DOE heating capacity 278,000 BTU and maximum input 299,000 BTU
• 439 stainless steel self-cleaning fire-tube heat exchanger; ASME construction and internal condensate trap
• ACVMax control with 60-second setup, integrated cascade (up to 6 boilers), outdoor reset sensor and NG-to-LP conversion kit included

Product Highlights

Wall-mounted modulating condensing boiler; 95% AFUE; DOE 278,000 BTU; 4.1:1 turndown; ACVMax control and included outdoor reset sensor

Product Information

Standard Information

• Brand: TRIANGLE TUBE
• Manufacturer Part Number: PA299

Technical Specifications

• Brand: Triangle Tube
• MPN: PA299
• Product Line: Prestige Solo
• Product Type: Condensing gas boiler
• Boiler Type: Wall-mounted, heat-only (hydronic)
• Fuel Type: Natural Gas (propane conversion kit included)
• Maximum Input Capacity: 299000 BTU
• Minimum Input Capacity: 72500 BTU
• DOE Heating Capacity: 278000 BTU
• Net AHRI Capacity: 242000 BTU
• AFUE: 95%
• Turndown Ratio: 4.1:1
• Heat Exchanger Material: 439 stainless steel fire-tube (self-cleaning)
• ASME Stamped Heat Exchanger: Yes
• Vent Type: Direct vent; compatible with PVC, CPVC, polypropylene, stainless steel
• Vent Diameter: 4 inches (compatible with 2 to 4 inch venting)
• Gas Connection Size: 1 inch NPT
• Supply Connection: 1-1/2 inches NPT
• Return Connection: 1-1/2 inches NPT
• Condensate Drain: 3/4 inch NPT
• Water Volume: 7.4 gallons
• Maximum Altitude: 10000 Feet
• Minimum Altitude: 0 Feet
• Electrical Input Voltage: 120 V
• Electrical Phase: Single phase
• Electrical Frequency: 60 Hz
• Electrical Amperage: 10 A
• Power (Electrical): 1200 Watts
• Dimensions (Depth x Width x Height): 23 5/8 x 24 7/8 x 39 3/8 inches
• Weight: 200 Pounds
• Mounting Type: Wall
• Modulating/Staging: Modulating
• Combustion Type: Condensing
• Connection Type: NPT
• Included Items: Outdoor reset sensor, ACVMax control module, wall mounting bracket, NG-to-LP conversion kit
• Certifications: ETL listed, AHRI certified, ASME certified, Low NOx / 2012 SCAQMD
• Performance Features: Low pressure drop; internal condensate trap; multiple zone and circulator control; integrated cascade up to 6 boilers
• AHRI Reference Number: 9032834
