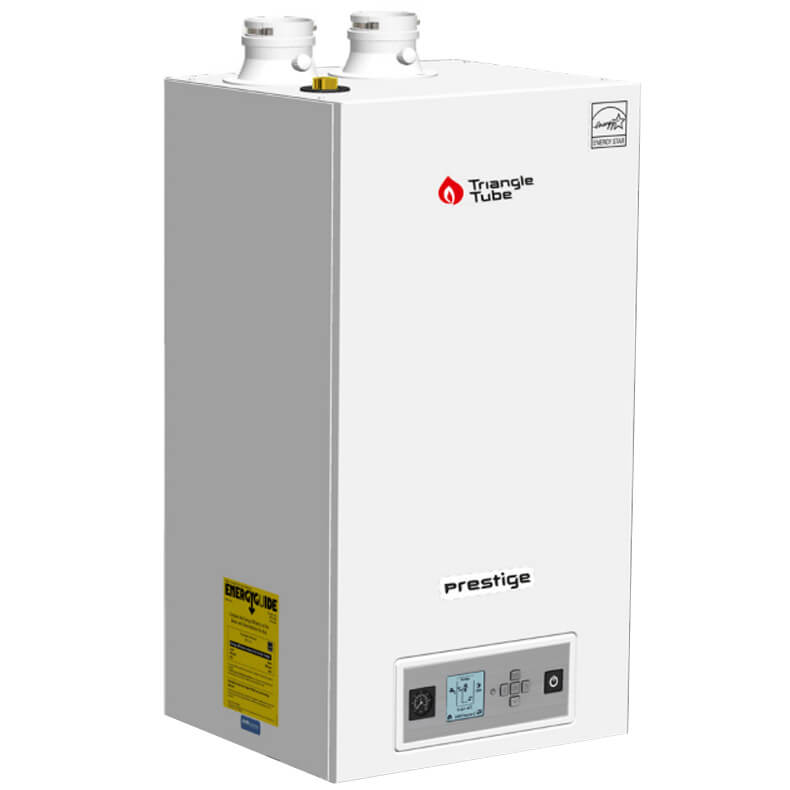

Triangle Tube PA250 Prestige Solo Condensing Gas Boiler 222K BTU (250) SOLO-250

Product Description

The Triangle Tube PA250 is a Prestige Solo condensing hot water boiler that delivers 95% AFUE efficiency using condensing technology and a stainless steel/titanium fire tube heat exchanger. The packaged unit includes ACVMax control, an outdoor reset sensor, wall mounting bracket, and an NG-to-LP conversion kit. It features a modulating burner with a 5.5:1 turndown and up to 240,000 BTU input for hydronic heating applications.

• 95% AFUE condensing boiler with stainless steel/titanium self-cleaning fire tube heat exchanger and internal condensate trap
• ACVMax control with multiple zone and circulator control, outdoor reset sensor, and integrated cascade support for up to six boilers
• Modulating burner with 43,600 to 240,000 BTU input range (5.5:1 turndown); 1-1/4" supply and return; 3/4" gas connection

Product Highlights

Wall-mounted, high-efficiency condensing boiler with ACVMax control and self-cleaning fire tube heat exchanger.

Product Information

Standard Information

• Brand: TRIANGLE TUBE
• Manufacturer Part Number: PA250
• Country of Origin: United States

Technical Specifications

• Brand: Triangle Tube
• MPN: PA250
• Series: Prestige Solo
• Product Category: Boiler
• AFUE: 95%
• DOE Heating Capacity: 222000 BTU
• Net IBR/Net AHRI Capacity: 193000 BTU
• Maximum Input (BTU): 240000 BTU
• Minimum Input (BTU): 43600 BTU
• Input Modulation Range (MBH): 43.6 to 240
• Turndown Ratio: 5.5:1
• Fuel Type: Natural Gas
• Combustion Type: Condensing
• Modulation: Modulating burner
• Heat Exchanger Material: Stainless steel/titanium fire tube
• Heat Exchanger Features: Self-cleaning design; internal condensate trap; ASME stamped (where specified)
• Medium / System Type: Hydronic (Hot Water)
• Includes Pump: Yes
• Ultra Low NOx Emissions: Yes
• Controls: ACVMax control with multiple zone and circulator control, two reset curves/set points, 6 preprogrammed applications, integrated cascade up to 6 boilers
• Includes: ACVMax control module, outdoor reset sensor, wall mounting bracket, NG-to-LP gas conversion kit
• Supply Connection: 1-1/4 Inches
• Return Connection: 1-1/4 Inches
• Gas Connection Size: 3/4 Inch
• Flue / Vent Diameter: 3 Inches
• Vent Type: Direct Vent (compatible with PVC, CPVC, polypropylene, stainless steel as specified)
• Water Volume: 4.5 gallons
• Power Supply: 120V, 60Hz
• Mounting Type: Wall-mounted
• Dimensions (Height x Width x Depth): 39 9/16 Inches x 19 3/4 Inches x 17 5/16 Inches
• Weight: 141 Pounds
• AHRI Reference Number: 2101288
• Maximum Altitude: 10000 Feet
• Minimum Altitude: 0 Feet
• Assembly Type: Packaged
• Replacement Models: SOLO-250, PT250
• Combustion Certification / Listings: ETL listed; AHRI certified; ASME certified; Low NOx (2012 SCAQMD certified)
