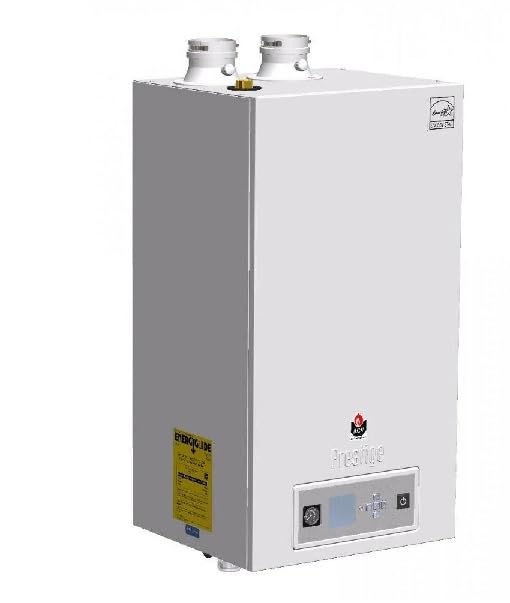

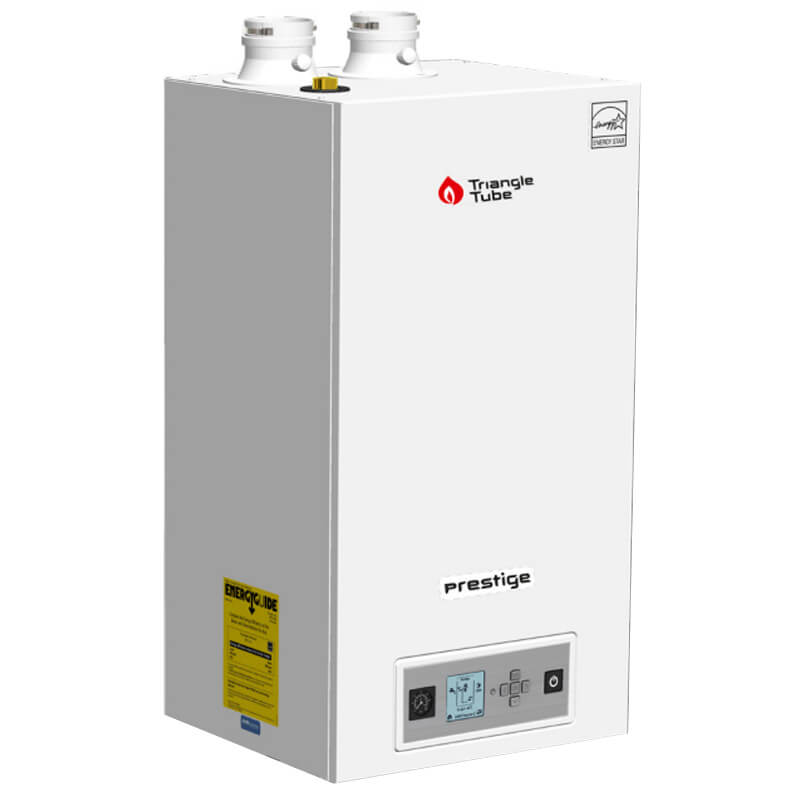

Triangle Tube PA175 Prestige Solo 157000 BTU (Wall Mount) PT175

Product Description

The Triangle Tube PA175 Prestige Solo is a condensing hot water boiler with 95% AFUE, a stainless steel 439 fire-tube heat exchanger, and an integrated ACVMax control. The modulating burner provides a 30,900 to 170,000 BTU input range with a 5.5:1 turndown ratio and a 137,000 BTU net AHRI capacity. The unit is wall-mounted, direct-vent capable, and includes an outdoor reset sensor and NG-to-LP conversion kit.

• High-efficiency condensing design: 95% AFUE with 439 stainless steel fire-tube heat exchanger and self-cleaning features
• Performance and controls: Input 30,900–170,000 BTU, net AHRI 137,000 BTU, turndown 5.5:1, ACVMax control with cascade and outdoor reset
• Connections and accessories: 1-1/4" supply/return, 3/4" gas connection, 3" flue connection, includes pump, outdoor temperature sensor, and NG-to-LP conversion kit

Product Highlights

Wall-mounted condensing boiler, 95% AFUE, ACVMax control with cascade capability, 30,900–170,000 BTU input range

Product Information

Standard Information

• Brand: TRIANGLE TUBE
• Manufacturer Part Number: PA175
• Country of Origin: United States

Technical Specifications

• Brand: Triangle Tube
• MPN: PA175
• Product Line: Prestige Solo
• Product Category: Boiler
• AFUE: 95%
• DOE Heating Capacity: 157000 BTU
• Net AHRI Capacity: 137000 BTU
• Maximum Input Capacity: 170000 BTU
• Minimum Input Capacity: 30900 BTU
• Turndown Ratio: 5.5:1
• Fuel Type: Natural Gas (configurable for Propane)
• Vent Type: Direct Vent (compatible with PVC, CPVC, Polypropylene, Stainless Steel)
• Mounting Type: Wall
• Combustion Type: Condensing
• Modulation Type: Modulating burner
• Includes Pump: Yes
• Heat Exchanger Material: 439 Stainless Steel (fire-tube)
• Heat Exchanger Type: ASME stamped fire-tube, self-cleaning design
• Water / Storage Volume: 14 Gallons
• Supply Connection: 1 1/4 Inches
• Return Connection: 1 1/4 Inches
• Gas Connection Size: 3/4 Inch
• Flue Connection Size: 3 Inches
• Control: ACVMax control module (includes outdoor reset sensor, multiple zone and cascade control up to 6 boilers)
• Includes Gas Conversion Kit: NG-to-LP conversion kit included
• Certifications: ETL Listed; ISO Certified; AHRI Certified; ASME Certified; Energy Star Listed; Ultra Low NOx
• AHRI Reference Number: 2101289
• Maximum Altitude: 10000 Feet
• Minimum Altitude: 0 Feet
• Dimensions (H x W x D): 39 9/16 Inches x 19 3/4 Inches x 17 5/16 Inches
