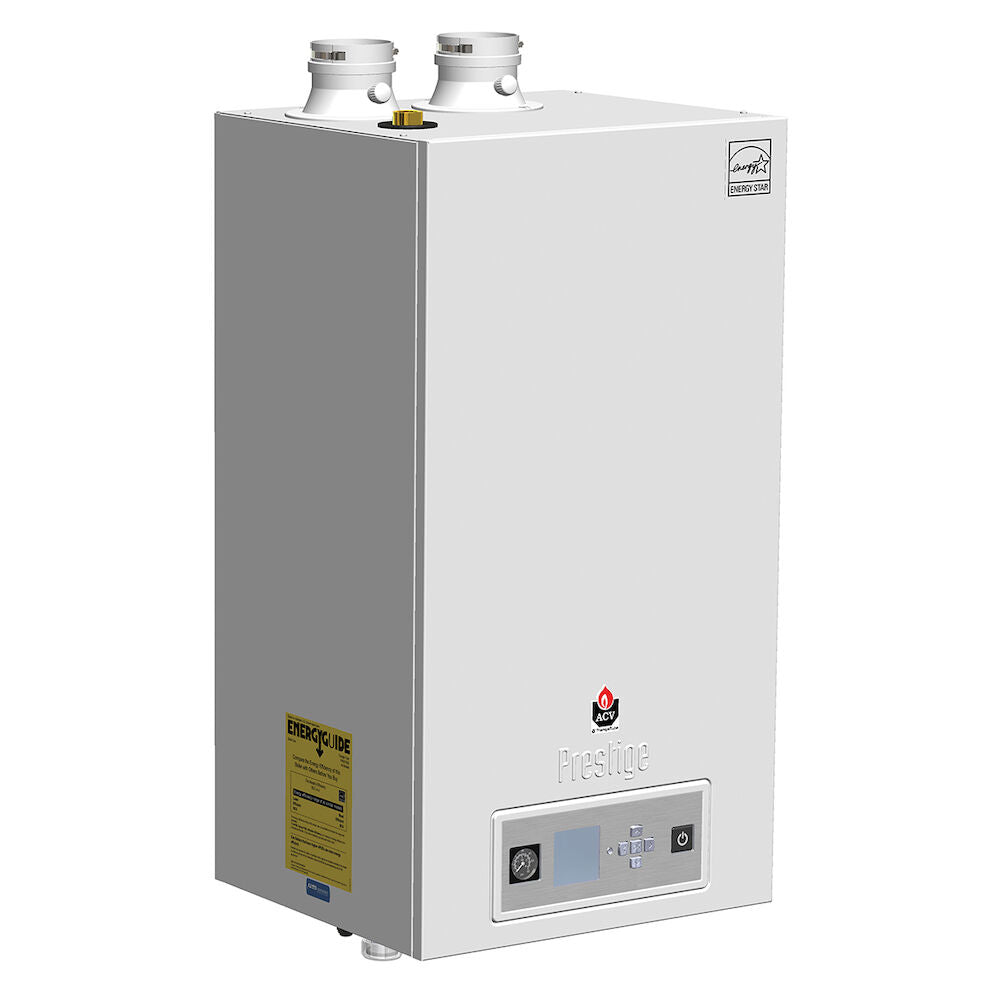

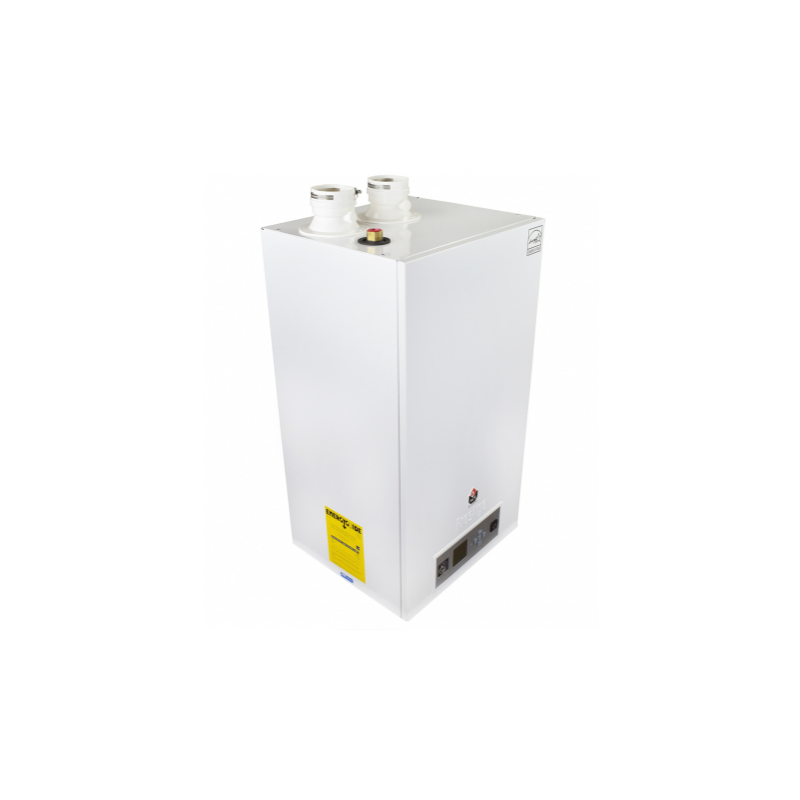

Triangle Tube PA110 Prestige Solo 102000 BTU (Wall Mount) SOLO-110LP

Product Description

Triangle Tube PA110 is a wall-mounted condensing gas boiler with a DOE heating capacity of 102,000 BTU and 95% AFUE. It uses a stainless steel fire-tube heat exchanger and a modulating burner with a 5.5:1 turndown ratio to match heat output to demand. The unit includes ACVMax control with outdoor reset capability and supports cascading up to six boilers.

• DOE heating capacity 102,000 BTU with 95% AFUE and 110,000 BTU maximum input
• Stainless steel fire-tube heat exchanger, modulating burner, turndown ratio 5.5:1
• ACVMax control with outdoor reset, multiple zone/circulator control and cascade up to 6 boilers
• Includes outdoor sensor, ACVMax module, wall bracket, and NG-to-LP conversion kit

Product Highlights

Wall-mounted condensing boiler; 95% AFUE; ACVMax control and cascade capability; NG-to-LP conversion kit included

Product Information

Standard Information

• Brand: TRIANGLE TUBE
• Manufacturer Part Number: PA110
• Country of Origin: United States

Technical Specifications

• Brand: Triangle Tube
• MPN: PA110
• Product Line: Prestige Solo
• Product Type: Boiler
• DOE Heating Capacity: 102000 BTU
• Net IBR Capacity: 89000 BTU
• Maximum Input Capacity: 110000 BTU
• Minimum Input Capacity: 20000 BTU
• AFUE: 95%
• Turndown Ratio: 5.5:1
• Fuel Type: Natural Gas
• Combustion Type: Condensing
• Modulating: Yes
• Includes Pump: Yes
• Flue Connection Size: 3 Inches
• Gas Connection Size: 1/2 Inch
• Supply Connection: 1 Inch
• Return Connection: 1 Inch
• Heat Exchanger: Stainless steel fire-tube (439)
• Control: ACVMax control (includes outdoor reset sensor and ACVMax module)
• Includes: Outdoor reset sensor, ACVMax control module, wall mounting bracket, NG-to-LP conversion kit
• Mounting Type: Wall
• Product Height: 39 9/16 Inches
• Product Width: 19 3/4 Inches
• Product Depth: 17 5/16 Inches
• Product Line / Category: Prestige Solo / Boiler
• Vent Type: Direct Vent
• Vent Diameter: 3 Inches
• Supply/Return Connections: 1 Inch
• Gas Connection: 1/2 Inch
• Water Volume: 2.1 Gallons
• Certifications: ETL Listed; Energy Star Listed; AHRI Certified; ASME Certified
• AHRI Reference Number: 2101291
• Ultra Low NOx Emissions: Yes
• Maximum Altitude: 10000 Feet
• Minimum Altitude: 0 Feet
