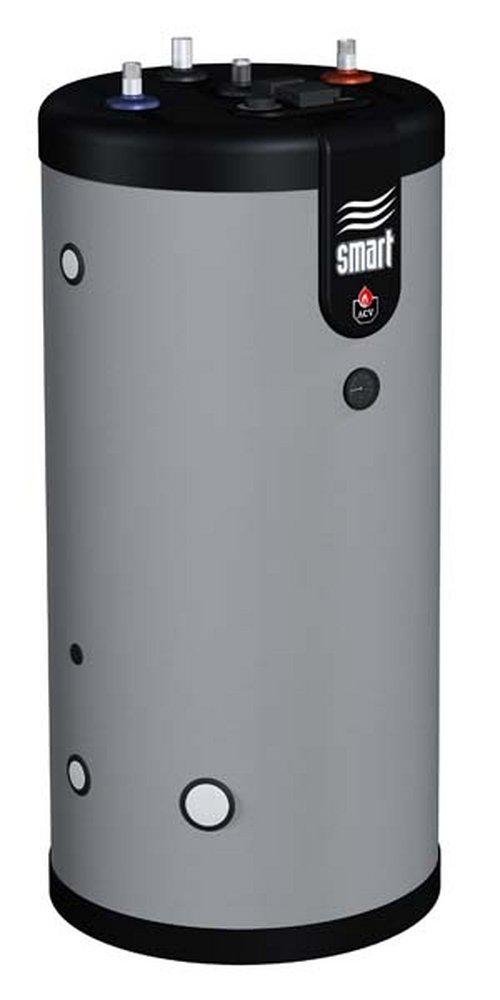

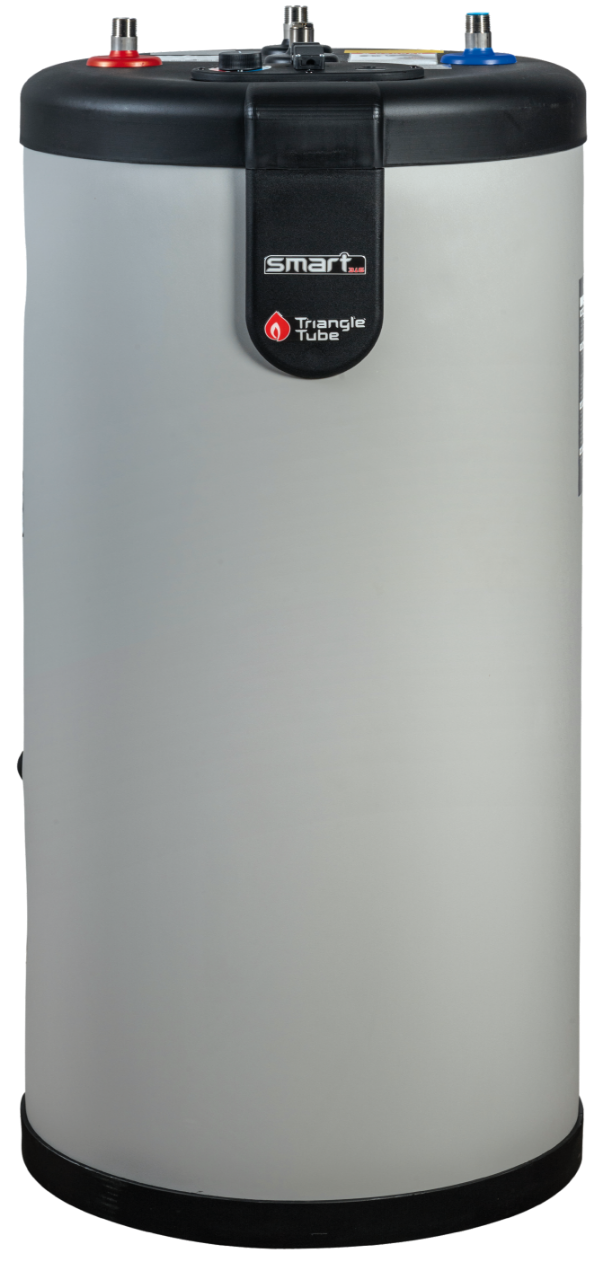

Triangle Tube P3SMART100 Smart Series Residential Indirect Water Heater 337 MBH (95 gal)

Product Description

Triangle Tube P3SMART100 is a Smart Series 95 gallon residential indirect water heater with a tank-in-tank 316L stainless steel intertank and a self-cleaning, self-descaling heat exchanger. Heated by boiler water, the unit provides a 337 MBH input and a first hour delivery of 525 gph, with continuous output rated at 7.5 gpm. It includes 2 inches of polyurethane foam insulation and NPT end connections for plumbing.

• 95 gallon storage; 337 MBH boiler input; first hour delivery 525 gph; continuous flow 7.5 gpm
• 316L stainless steel tank-in-tank construction with self-cleaning/self-descaling heat exchanger and 2 in polyurethane insulation
• Boiler/supply return and domestic inlet/outlet 1-1/2 in; NPT end connections; dimensions 26 in diameter x 78 in height; weight 362 lb

Product Highlights

Tank-in-tank 316L stainless steel design; 95 gal capacity; 337 MBH input; 525 gph first hour delivery

Product Information

Standard Information

• Brand: TRIANGLE TUBE
• Manufacturer Part Number: P3SMART100

Technical Specifications

• Brand: Triangle Tube
• Manufacturer Part Number: P3SMART100
• Model: TP3SMART316L100
• Series: Smart 316
• Capacity: 95 gal
• Heating Input (MBH): 337
• Heating Input (Btu/hr): 337,000
• First Hour Delivery (gph): 525
• Continuous Flow (gpm): 7.5
• 10 Minute Peak Flow (gal): 150
• Heating Water Capacity (gal): 25
• Heat Surface (sq ft): 36
• Construction: 316L stainless steel intertank (tank-in-tank)
• Insulation: 2 in polyurethane foam
• Boiler/Supply Return: 1-1/2 in
• Domestic Inlet/Outlet: 1-1/2 in
• End Connections: NPT x NPT
• Diameter: 26 in
• Height: 78 in
• Weight: 362 lb
• Application: Residential; Commercial
• Energy Star Compliant: No
• NSF Certified: No
• UL Listed: No
• Manuals Available: Installation & Operation Manual
