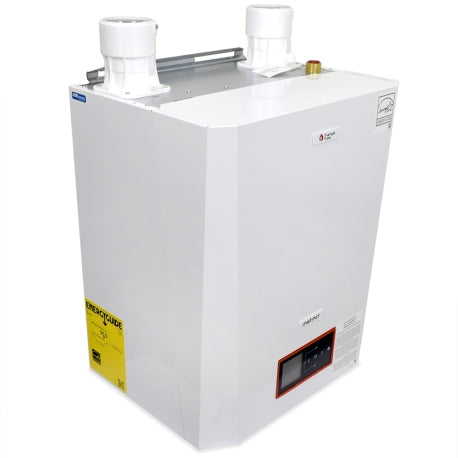

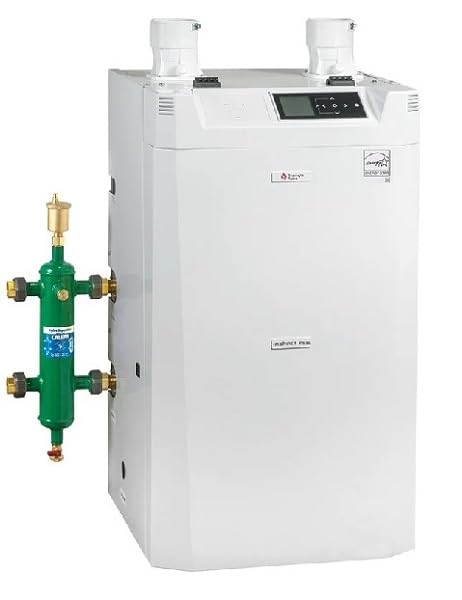

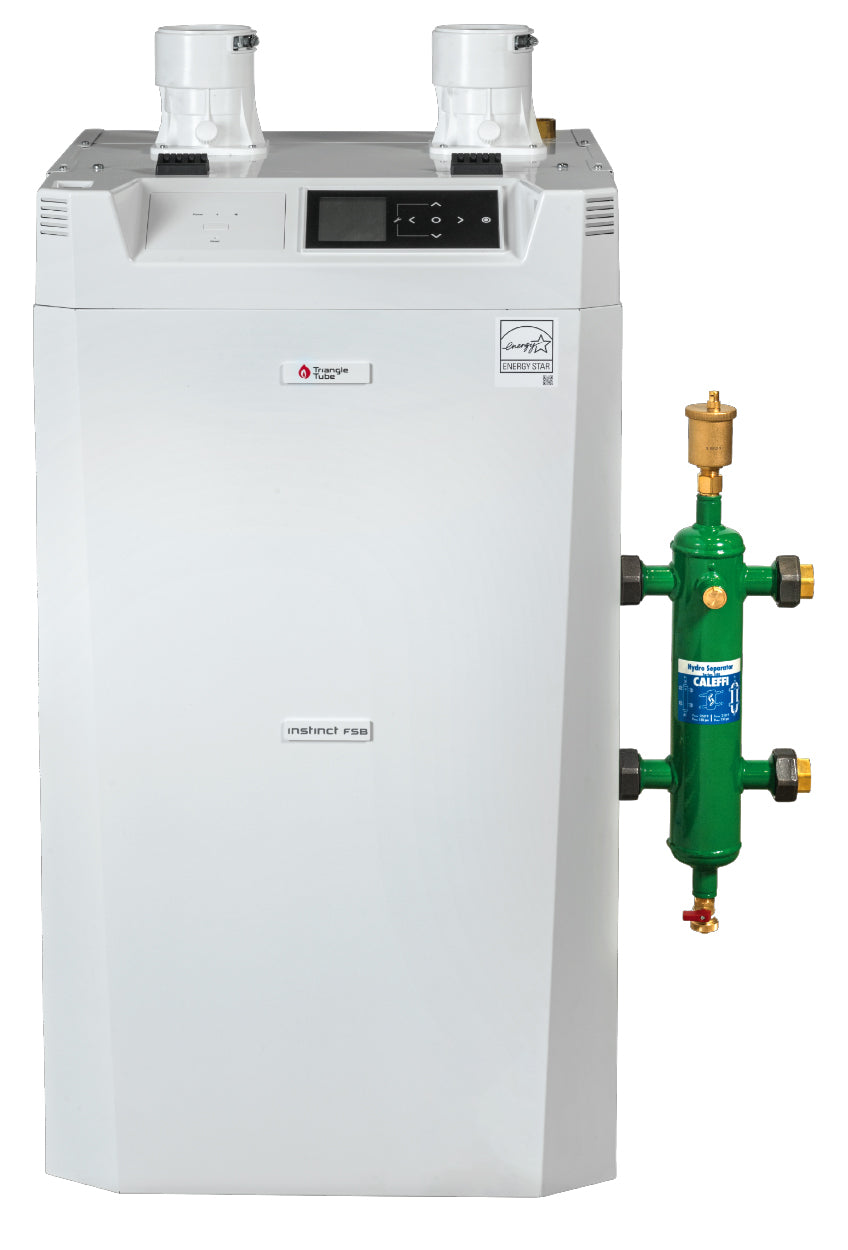

Triangle Tube INSFS199S Solo 199 Flr Boiler

Product Description

The TRIANGLE TUBE INSFS199S Solo 199 Flr Boiler is designed for floor mount applications. This high-efficiency boiler features a turndown ratio of 8:1 and an AFUE rating of 95%. It has a DOE heating capacity of 184 MBH and a net AHRI rating of 159 MBH. The unit includes a 3/4" gas connection and 1" supply/return connections.

• Turndown Ratio: 8:1
• BTU Min Input: 24,875
• BTU Max Input: 199,000
• AFUE Rating: 95%

Product Highlights

High-efficiency floor mount boiler with robust performance and versatile installation options for residential heating systems.

Product Information

Standard Information

• Brand: TRIANGLE TUBE
• Manufacturer Part Number: INSFS199S

Technical Specifications

• Turndown Ratio: 8:1
• BTU Min Input: 24,875
• BTU Max Input: 199,000
• AFUE Rating: 95%
• DOE Heating Capacity MBH: 184
• Net AHRI Rating MBH: 159
• Water Volume Gal: 4
• Supply / Return Connections (MNPT): 1"
• Gas Connection (MNPT): 3/4"
• Vent & Air Connections: 3"
• Connection Type: NPT
• Fuel Type: NG (Field Convertible - Kit Included)
• Input Capacity: 199,000 BTU/hr
• Manufacturer: Triangle Tube
• Manufacturer #: INSFS199S
• Mounting Type: floor
• Series: Instinct Solo
• Type: Gas Condensing Boiler
• Model Number: INSFS199S
• Fuel: NG & LP
• AHRI Net Rating (MBH): 159
• DOE Heating Capacity (MBH): 184
• Water Volume (Gallons): 4
• 2" Max Vent Length: -
• 3" Max Vent Length: 100'
• Vent/Air Connections (in.): 3"
• Supply/Return Connections (MNPT): 1"
• CH Max Flow Temp F (C): 185 (85)
• Integrated Cascade Function: up to 6
• Product Type: Boiler
• Installation Type: Floor Standing
• Combustion Type: Condensing
• Vent Type: Direct Vent
• Central Heat (CH) Max. Flow Temp. (°F/C): 185 / 85
• Connectivity: TSync WiFi
• Domestic Hot Water - DHW: No
• Input Capacity (Min. BTUs): 24875
• Input Capacity (Max. BTUs): 199000
• AFUE Efficiency %: 95
• DOE Heating Capacity (BTUs): 184000
• AHRI Net Rating (BTUs): 159000
• Gas Connection (in.): 3/4"
• Boiler Supply/Return (in.): 1"
• DHW Inlet/Outlet Connections (in.): NA
• DHW Output GPM (@70° rise): NA
• DHW Output GPM (@75° rise): NA
• DHW Output GPM (@80° rise): NA
• DHW Min. Flow Rate (GPM): NA
• DHW Max. Flow Temp (°F/C): NA
• DHW Max. Operating Pressure (PSI): NA
• Width (in.): 22
• Depth (in.): 22
• Height (in.): 41
• Certifications: ASME, Energy Star, ETL, AHRI, Low NOX
• Voltage: 110-120V
• Circuit Breaker Size (Amps): 15
• Input Modulation (BTU): 24,875 - 199,000
• DOE Rating (BTU): 184,000
• Net AHRI Rating (BTU): 159,000
• Efficiency (AFUE): 95%
• Turndown (Modulation) Ratio: 8 : 1
• Gas Supply Pressure: 5-13" WC (natural gas), 8-13" WC (propane)
• Max. Operating Pressure: 50 psi
• Vent/Air Size: 3"
• Vent Material: PVC, CPVC, PolyPropylene, St. Steel
• Power Supply: 120V, 60Hz
• Boiler Connections: 1" NPT
• Gas Connection: 3/4" NPT
• Brand: TRIANGLE TUBE
• Model: TRIANGLE TUBE INSFS199S
• MPN: INSFS199S
