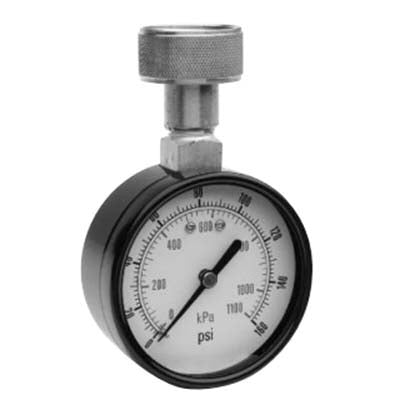

Trerice PWT122194 Water Test Pressure Gauge 0 - 160 psi/kPa 12 o'Clock

Product Description

The Trerice PWT122194 is a water test pressure gauge designed for precise measurement in hydraulic systems. With a maximum measuring range of zero to 160 psi or kPa, this gauge is essential for various pressure testing applications. It features a three-quarter inch NPT hose bib connection located at the twelve o'clock position for clear visibility and easy access during inspections.

• Wetted parts made of bronze tube and lead-free brass socket.
• Durable black-painted steel case and ring.
• Acrylic window for clear reading.

Product Highlights

This gauge is integral for passing building inspections, as it can indicate any system leaks through pressure drops on the dial. It is suitable for a variety of general applications.

Product Information

Standard Information

• Brand: Trerice
• Manufacturer: H O Trerice

Technical Specifications

• Accuracy: 3-2-3%, Grade B
• Connection Size: 3/4 inch
• Connection Type: Female Hose-Bib
• Depth: 1.1 inches
• Dial Size: 2-1/2 inches
• Diameter: 4.2 inches
• Finish: Black
• Material: Steel
• Measuring Range: 0 - 160 psi/kPa
• Model: 122
• Mounting: 12 o'Clock
• Temperature Rating: 150 degrees F
• Type: Utility
