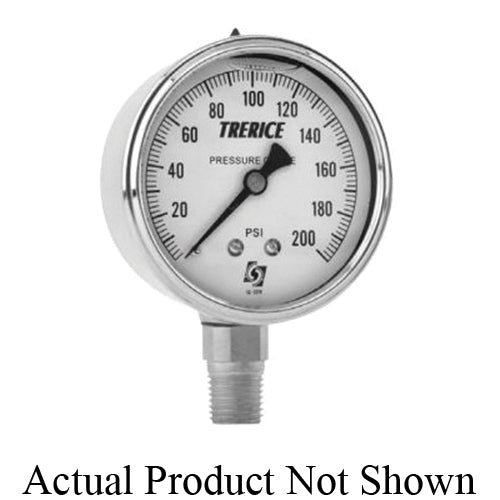

Trerice D83LFSS2502BA30/30 D80 Vacuum Utility Gauge, 30 in Hg to 30 psi Pressure

Product Description

The Trerice D80 Vacuum Utility Gauge, MPN D83LFSS2502BA30/30, is engineered for demanding applications. This liquid filled gauge features a robust stainless steel case and crimped ring for durability. The wetted parts consist of either a bronze tube with a brass socket or stainless steel, ensuring reliable performance.

• Center back MNPT connection
• Liquid filled with glycerin
• 304 stainless steel construction

Product Highlights

This gauge operates effectively in various conditions. It has a pressure range from thirty inches of mercury to thirty psi. The accuracy of this gauge is within +/- 1.6%, making it suitable for both industrial and commercial uses.

Product Information

Standard Information

• Brand: Trerice
• Manufacturer: H.O. Trerice

Technical Specifications

• Type: Vacuum
• Pressure Range: 30 in Hg to 30 psi
• Accuracy: +/- 1.6 %
• Connection Size: 1/4 in
• Dial Diameter: 2-1/2 in
• Dimensions: 2.68 in Dia
• Graduations: 10/5
• Liquid Filled: Glycerin
• Material: 304 Stainless Steel
• Mounting Type: Stem
• Temperature Rating: 150 deg F
• Series: D80
