Trerice D82LFB2502LA300 liquid filled pressure gauge 0-300 psi 2 1/2 inch dial 1/4 inch mpt lower mount

Product Description

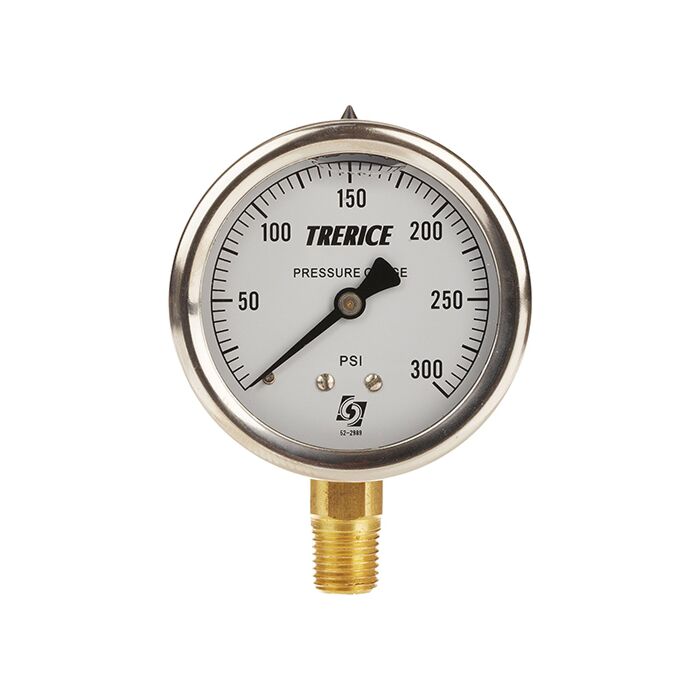

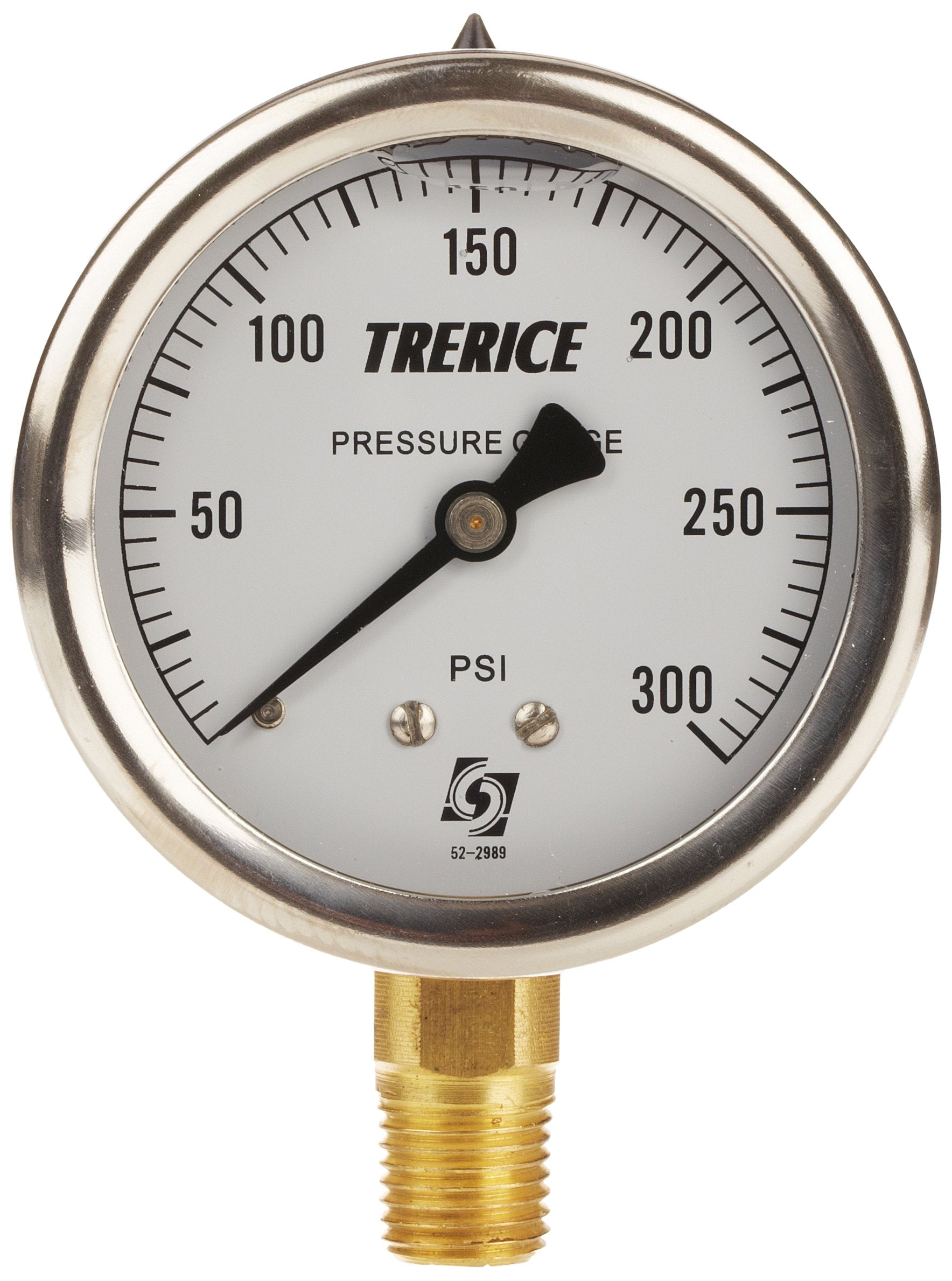

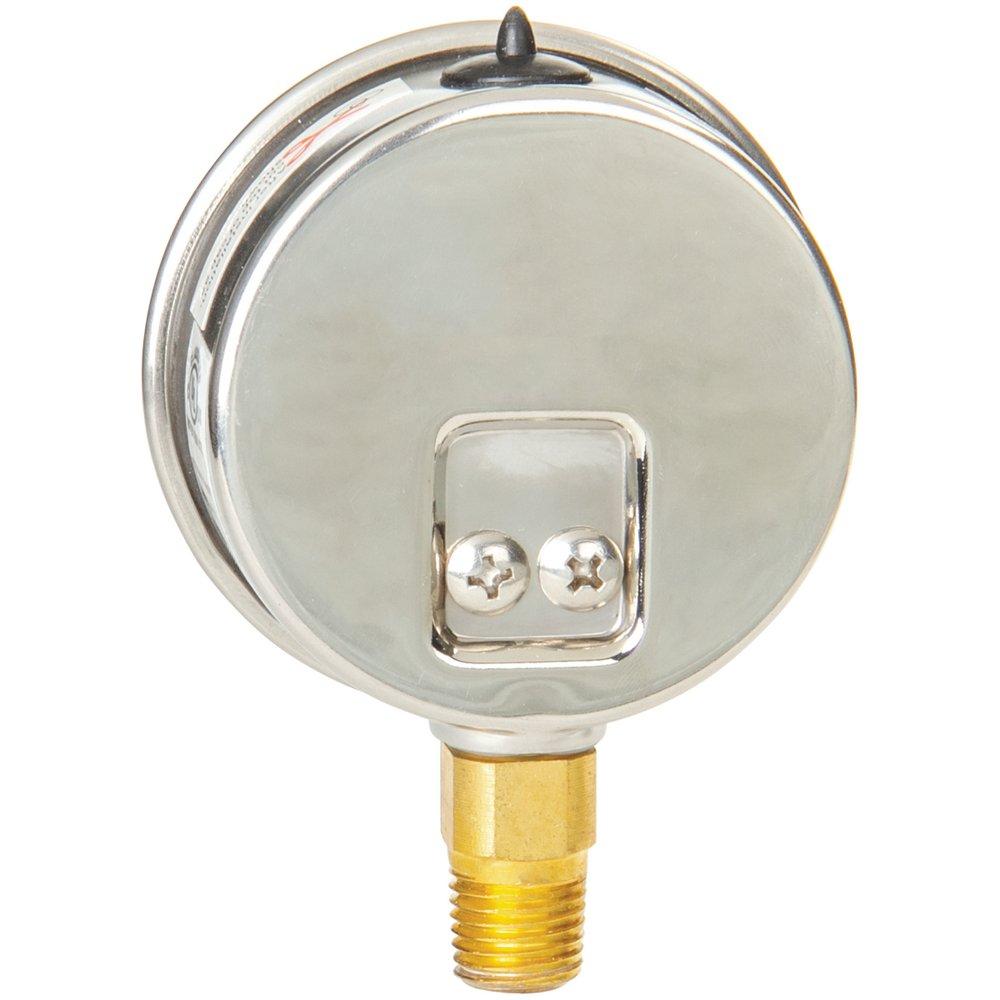

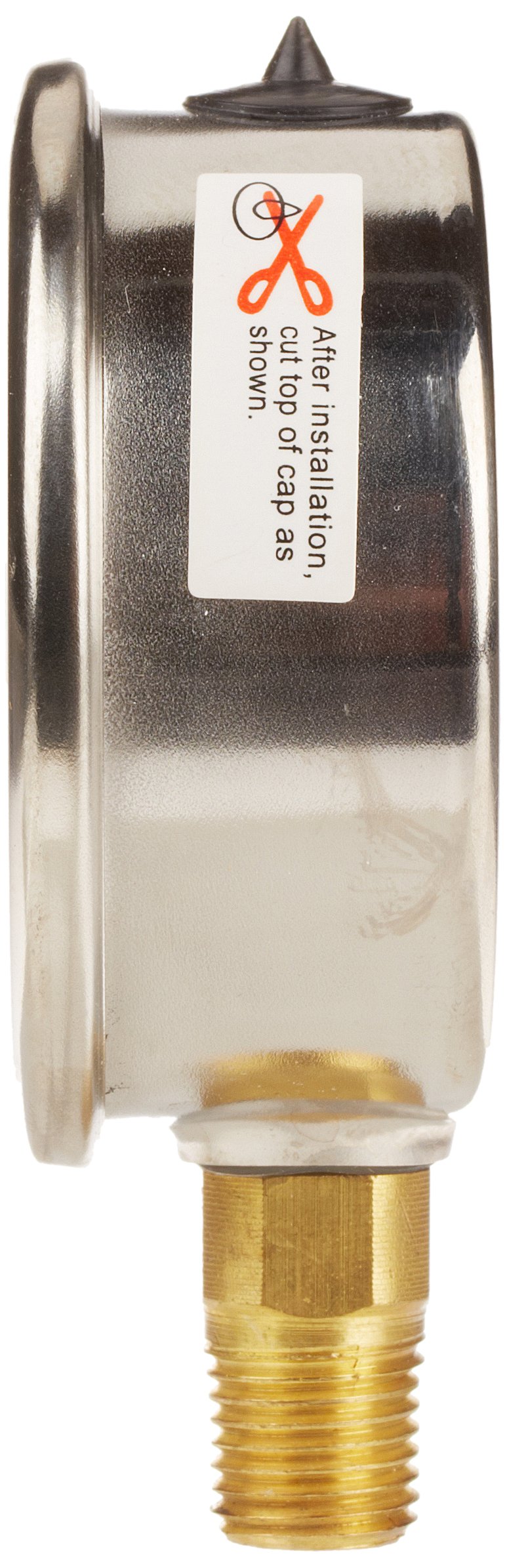

The Trerice D82LFB2502LA300 is a liquid-filled pressure gauge designed for rugged performance. This 2 1/2 inch dial gauge measures pressure from 0 to 300 PSI and features a 1/4 inch MPT lower mount brass connection. It is suitable for boiler applications and can be used in various industrial settings. Constructed with lead-free brass and a stainless steel case, it meets NSF/ANSI Standards 372 and 61, ensuring compliance for potable water applications. It provides +/- 1.6% full scale accuracy.

• Liquid Filled for enhanced durability and vibration dampening.
• 0 - 300 PSI range with a 2 1/2 inch dial size for clear readings.
• 1/4 inch MPT Lower Mount Brass connection, suitable for boiler applications.

Product Highlights

Rugged liquid-filled pressure gauge with 0-300 PSI range, 2 1/2 inch dial, and 1/4 inch MPT lower mount brass connection, meeting NSF/ANSI standards.

Product Information

Standard Information

• Brand: TRERICE
• Manufacturer Part Number: 842615101587

Technical Specifications

• MPN: D82LFB2502LA300
• UPC: 842615101587
• Dial Size: 2 1/2 inch
• Connection Size: 1/4 inch
• Connection Type: NPT
• Mounting Type: Lower Mount
• Pressure Range: 0-300 PSI
• Liquid Filled: Yes
• Case Material: Stainless Steel
• Connection Material: Lead Free Brass
• Accuracy: 1.60% Full Scale
• Maximum Operating Temperature: 250°F (121°C)
• Certifications: ANSI 61, ANSI 372, ASME B40.100, NSF 61, NSF 372, UL Listed
• Lead Law Compliance: Compliant and Certified
• Collection: D80 Series
• Model Number: D82LFB
