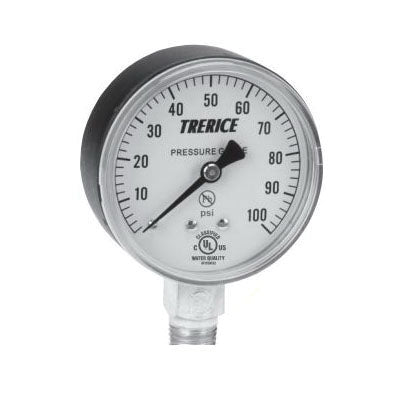

Trerice 800B4002LA100 800B Dry Utility Pressure Gauge, 0 to 100 psi Pressure, 1/4 in MNPT Connection, 4 in Dia Dial, 1.6 % Accuracy

Product Description

The Trerice 800B4002LA100 is a utility pressure gauge designed for accurate pressure measurements up to one hundred psi. It features a one-fourth inch MNPT connection and a four-inch diameter dial. This gauge is suitable for various industrial applications, including HVAC systems and boiler management.

• Pressure measurement range from 0 to 100 psi
• Durable construction with a steel case
• 1.6% accuracy rating for reliable readings

Product Highlights

The Trerice 800B pressure gauge is equipped with a bronze tube and lead-free brass socket for enhanced durability and safety. This model is appropriate for lower mounting solutions and operates at a temperature rating of 180 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Trerice
• Manufacturer: H.O. Trerice

Technical Specifications

• MPN: 800B4002LA100
• Type: Dry
• Connection Size: 1/4 in MNPT
• Dial Diameter: 4 in
• Dimensions: 3.94 in Dia x 1.38 in D
• Material: Steel Case
• Mounting Type: Lower
• Pressure Range: 0 to 100 psi
• Temperature Rating: 180 degrees Fahrenheit
• Accuracy: 1.6 %
• Series: 800B
