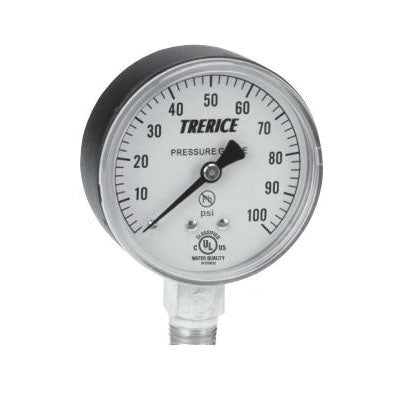

Trerice 800B2502LA30/30 800B Dry Utility Pressure Gauge, 30 in Hg to 30 psi Pressure, 1/4 in MNPT Connection, 2-1/2 in Dia Dial

Product Description

The Trerice 800B2502LA30/30 is a utility pressure gauge designed to meet general pressure indicating needs. This gauge provides economical and reliable service. Its wetted parts are made of bronze and Lead-Free brass for safety and durability.

This gauge features a pressure range from thirty inches of mercury to thirty pounds per square inch. It has a quarter-inch MNPT connection and a two and a half inches dial diameter. The gauge has an accuracy rating of one point six percent and operates effectively at a temperature of up to one hundred eighty degrees Fahrenheit.

• Versatile pressure range from 30 in Hg to 30 psi
• Durable dry gauge design with lower mount
• Designed for reliable, economical pressure indication

Product Highlights

The gauge is suitable for various applications requiring pressure monitoring.

Product Information

Standard Information

• Manufacturer: H.O. Trerice
• Type: Dry

Technical Specifications

• Pressure Range: 30 in Hg to 30 psi
• Connection Size: 1/4 in MNPT
• Dial Diameter: 2-1/2 in
• Accuracy: 1.6 %
• Material: Steel Case
• Mounting Type: Lower
• Temperature Rating: 180 deg F
• Dimensions: 2.48 in Dia x 1.16 in D
• Series: 800B
