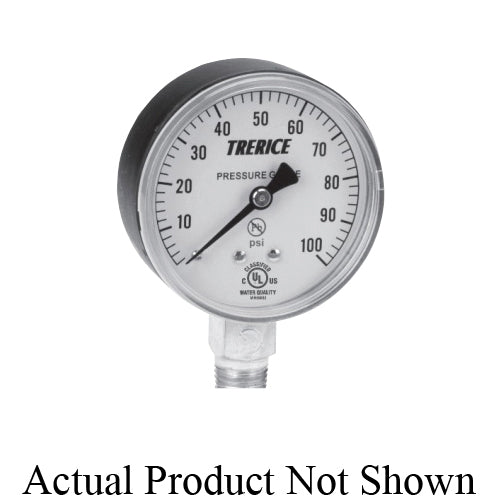

Trerice 800B1501BA160 800B Dry Utility Pressure Gauge 0 to 160 psi 1/8 in MNPT Connection

Product Description

The Trerice 800B1501BA160 is a dry utility pressure gauge designed for accurate pressure measurement in various applications. This gauge accurately measures pressure from zero to one hundred sixty pounds per square inch. It features a one eighth inch MNPT connection and a dial diameter of one and a half inches. The gauge has a maximum temperature rating of one hundred eighty degrees Fahrenheit. The wetted parts of the gauge include a bronze tube and lead-free brass socket for safe operation.

• Pressure range: 0 to 160 psi
• Connection size: 1/8 in MNPT
• Accuracy: 1.6%

Product Highlights

This gauge is commonly used in industrial settings where reliable pressure readings are necessary. The center back mount allows for easy installation in tight spaces. The robust steel case protects the internals from damage.

Product Information

Standard Information

• Brand: Trerice
• MPN: 800B1501BA160

Technical Specifications

• Pressure Range: 0 to 160 psi
• Connection Size: 1/8 in MNPT
• Dial Diameter: 1-1/2 in
• Dimensions: 1.57 in Dia x 1.15 in D
• Material: Steel Case
• Mounting Type: Center Back
• Temperature Rating: 180 deg F
• Accuracy: 1.6 %
• Type: Dry
