Product Description

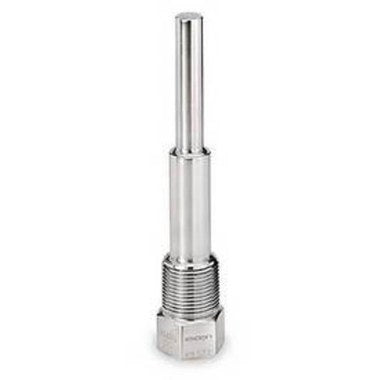

Trerice 764G2 is a brass thermowell designed for bi-metal thermometers and temperature sensors. This thermowell features a half-inch internal NPSM thread and three-quarter-inch external NPT thread. The stem has a length of four inches with a bore diameter of 0.26 inches. The shank diameter is 0.44 inches, and it has an insertion length of two and one-half inches with a wrench allowance of 0.4 inches. Its temperature rating goes up to 150 degrees Fahrenheit, and it holds a pressure rating of 3170 PSI. This product complies with CRN standards.
- Brass construction for durability
- Compatible with bi-metal thermometers
- Pressure rating of 3170 PSI
Product Highlights
This thermowell is suitable for applications that require reliable temperature measurement in various industrial settings.
Product Information
Standard Information
-
Manufacturer: Trerice
-
MPN: 764G2
Technical Specifications
-
Item Name: Thermowell
-
Internal Thread: 1/2 IN NPSM
-
External Thread: 3/4 IN NPT
-
Stem Length: 4 IN
-
Bore Diameter: 0.26 IN
-
Shank Diameter: 0.44 IN
-
Insertion Length: 2-1/2 IN
-
Wrench Allowance: 0.4 IN
-
Temperature Rating: 150 DEG F
-
Pressure Rating: 3170 PSI
-
Material: Brass
-
Industry Standards: CRN Approved
