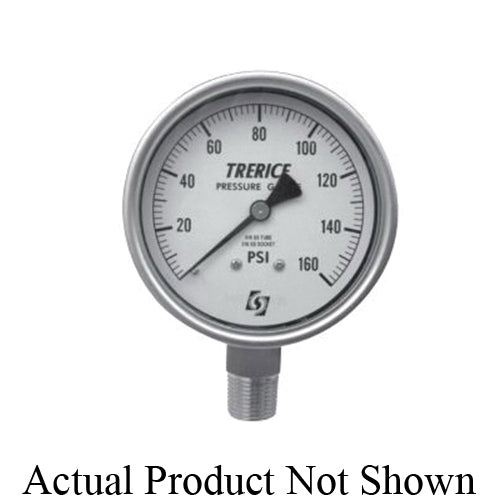

Trerice 700LFSS4002LA160 700 Pressure Gauge 0 to 160 psi 1/4 in Connection 4 in Dia Dial

Product Description

The Trerice 700 Pressure Gauge, model 700LFSS4002LA160, is suitable for industrial applications. It features a stainless steel case and ring for durability and has a liquid-fill capability for accuracy. The gauge is designed for pressures ranging from zero to one hundred sixty psi. It comes with options for wetted parts made of bronze with lead-free brass, stainless steel, or Monel, contributing to its versatility in various environments.

• Pressure Range: 0 to 160 psi
• Liquid Filled: Glycerin
• Dial Size: 4 inches

Product Highlights

This gauge is built for reliability in process environments where accuracy is essential.

Product Information

Standard Information

• Manufacturer: H.O. Trerice
• Brand: Trerice

Technical Specifications

• Accuracy: +/- 1 %
• Connection Size: 1/4 in
• Dial Diameter: 4 in
• Dimensions: 3.98 in Dia x 2.24 in D
• Finish: Satin
• Graduations: 20
• Liquid Filled: Glycerin
• Material: 304 Stainless Steel
• Mounting Type: Stem
• Temperature Rating: 150 deg F
