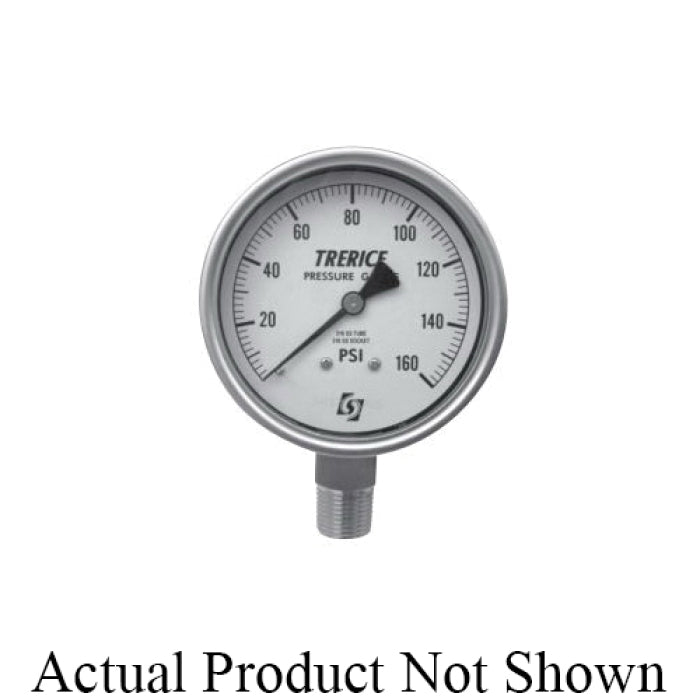

Trerice 700LFSS2502LA200 700 Industrial Pressure Gauge 0 to 200 psi 1/4 in MNPT

Product Description

The Trerice 700LFSS2502LA200 is an industrial pressure gauge designed for diverse industrial applications. It features a stainless steel case and ring, ensuring durability and reliability in various environments. The gauge's design allows field liquid fill without additional kits, enhancing its versatility. The wetted parts options include bronze tube with Lead-Free brass socket, stainless steel tube and socket, or Monel tube and socket.

• Series: 700
• Pressure Range: 0 to 200 psi
• Dial Diameter: 2-1/2 inches

Product Highlights

This gauge is suited for accurate pressure measurement in industrial settings. With a +/- 1% accuracy, and a glycerin liquid fill that operates effectively up to 150 degrees Fahrenheit, the Trerice gauge maintains precision under demanding conditions.

Product Information

Standard Information

• Manufacturer: H.O. Trerice
• Mounting Type: Lower

Technical Specifications

• Accuracy: +/- 1%
• Connection Size: 1/4 in MNPT
• Dimensions: 2.52 inches Dia x 1.42 inches D
• Finish: Satin
• Liquid Filled: Glycerin
• Material: 304 Stainless Steel Case
• Pressure Range: 0 to 200 psi
• Temperature Rating: 150 degrees Fahrenheit
