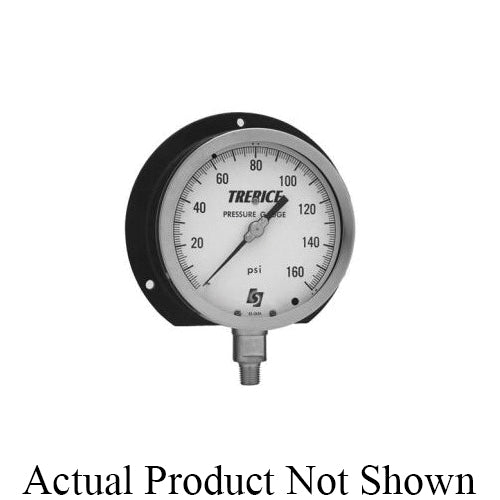

Trerice 500XB4502LD160 500X Industrial Pressure Gauge 0 to 160 psi/0 to 1100 kPa

Product Description

The Trerice 500XB4502LD160 is an industrial pressure gauge built for varied applications across multiple sectors. This model features a durable cast aluminum case and stainless steel ring, designed to withstand tough conditions. The wetted parts consist of a bronze tube with Lead-Free brass socket or a stainless steel tube and socket, ensuring reliable performance.

• Pressure range of 0 to 160 psi/0 to 1100 kPa
• 1/4 in MNPT connection
• Accuracy of +/- 0.5 %

Product Highlights

This gauge is suitable for lower mount applications and can handle temperature ratings up to 250 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: H.O. Trerice
• Brand: Trerice

Technical Specifications

• Series: 500X
• Connection Size: 1/4 in MNPT
• Dial Diameter: 4-1/2 in
• Dimensions: 5.88 in Dia x 2.06 in D
• Material: Cast aluminum case
• Mounting Type: Lower
• Temperature Rating: 250 degrees Fahrenheit
• Color: Black
• Features: Bronze tube, brass socket, stainless steel movement, clear glass window, surface mounted back flanged case with black finish, black graduations on white dial face, stainless steel ring
