Product Description

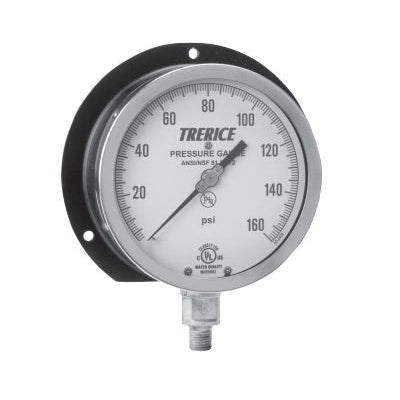

The Trerice 500X Pressure Gauge, MPN 500XB4502LA15, is built for industrial applications. It features a robust cast aluminum case with a stainless steel ring, designed to endure various working conditions. The wetted parts either consist of a bronze tube with Lead-Free brass socket or a stainless steel tube and socket allowing accurate pressure readings.
- Pressure range: 0 to 15 psi
- Connection size: 1/4 inch
- Dial diameter: 4.5 inches
Product Highlights
This gauge is suitable for surface mounting and features an accuracy of +/- 0.5 percent. It is designed to operate in temperatures up to 250 degrees Fahrenheit, making it versatile for many applications.
Product Information
Standard Information
-
Manufacturer: H.O. Trerice
-
Brand: Trerice
Technical Specifications
-
Accuracy: +/- 0.5 %
-
Color: Black
-
Connection Size: 1/4 in
-
Dial Diameter: 4-1/2 in
-
Dimensions: 5.88 in Dia x 2.06 in D
-
Graduations: 3
-
Material: Cast Aluminum
-
Mounting Type: Surface
-
Pressure Range: 0 to 15 psi
-
Series: 500X
-
Temperature Rating: 250 deg F
