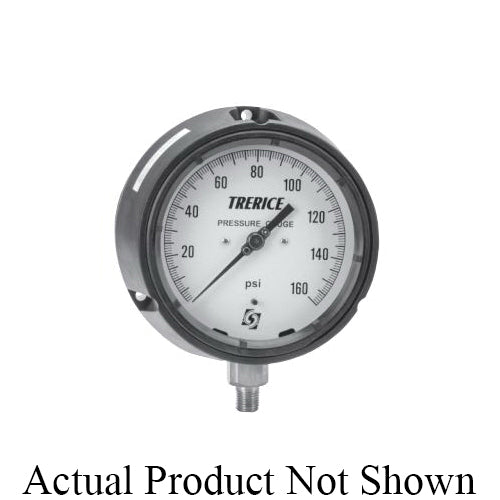

Trerice 450SS4504LA30 450 Dry Pressure Gauge 0 to 30 psi 1/2 in MNPT

Product Description

The Trerice 450SS4504LA30 is a dry pressure gauge designed for petrochemical and industrial process applications. This pressure gauge features a solid front and blow-out back design. Constructed with a fiberglass reinforced polypropylene turret case, it is durable and reliable for harsh environments. The gauge is field liquid-fill capable without requiring a special kit. This series maintains accuracy even under rugged conditions.

• Pressure range from 0 to 30 psi
• Fabricated with a fiberglass reinforced polypropylene case
• Suitable for lower mounting installation

Product Highlights

This gauge is engineered for precise measurements in demanding situations.

Product Information

Standard Information

• Brand: Trerice
• Manufacturer: H.O. Trerice

Technical Specifications

• Type: Dry
• Series: 450
• Accuracy: +/- 0.5 %
• Connection Size: 1/2 in MNPT
• Dial Diameter: 4-1/2 in
• Dimensions: 5.83 in Dia x 3.25 in D
• Material: Fiberglass Reinforced Polypropylene Case
• Mounting Type: Lower
• Pressure Range: 0 to 30 psi
• Temperature Rating: 250 deg F
