Product Description

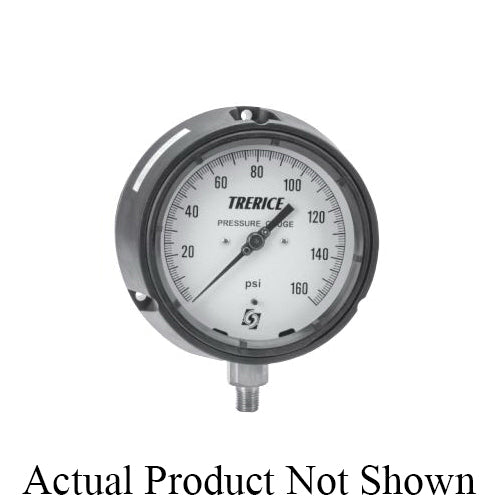

The Trerice 450SS4504LA15 is a reliable dry pressure gauge designed for use in petrochemical and industrial processes. It features a solid front and a blow-out back for safety. The sturdy fiberglass reinforced polypropylene turret case provides durability in harsh environments. This gauge is equipped with liquid-fill capabilities and requires no additional kits for setup. It is built to last and offers precise measurement accuracy.
- Dry pressure gauge with a range of zero to fifteen psi
- 1/2 inch MNPT connection for easy installation
- Sturdy fiberglass reinforced polypropylene construction
Product Highlights
The Trerice 450 Series gauge can withstand rugged industrial use while maintaining accuracy in pressure measurement.
Product Information
Standard Information
Technical Specifications
-
Pressure Range: 0 to 15 psi
-
Connection Size: 1/2 inch MNPT
-
Dial Diameter: 4-1/2 inches
-
Dimensions: 5.83 inches Diameter x 3.25 inches Depth
-
Material: Fiberglass Reinforced Polypropylene Case
-
Mounting Type: Lower
-
Temperature Rating: 250 degrees Fahrenheit
-
Accuracy: +/- 0.5%
