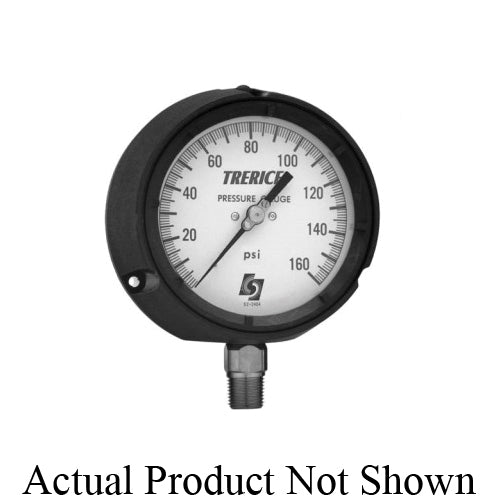

Trerice 450SS4502LA200 450 Dry Pressure Gauge 0 to 200 psi Pressure 1/4 in MNPT Connection

Product Description

The Trerice 450 Series process gauge, model 450SS4502LA200, is built for rigorous applications in petrochemical and industrial settings. This gauge features a solid front with a blow-out back, crafted from a fiberglass reinforced polypropylene case. Its sturdy design ensures durability in demanding environments. The gauge is also designed for field liquid-fill, eliminating the need for additional kits. With its precise accuracy, the Trerice gauge can handle the toughest industrial applications.

• Pressure range: 0 to 200 psi
• Connection type: 1/4 in MNPT
• Dial diameter: 4-1/2 in

Product Highlights

This pressure gauge is ideal for measuring internal pressure in industrial pipes and gas lines. It withstands temperatures up to 250 degrees Fahrenheit and features a lower mount design for ease of installation.

Product Information

Standard Information

• Category: Testing & Measuring
• Manufacturer: H.O. Trerice

Technical Specifications

• MPN: 450SS4502LA200
• Series: 450
• Accuracy: +/- 0.5%
• Material: Fiberglass Reinforced Polypropylene Case
• Dimensions: 5.83 in Dia x 3.25 in D
• Mounting Type: Lower
• Temperature Rating: 250 deg F
• Type: Dry
• Wetted Parts: Bronze tube/brass socket, stainless steel, or Monel
