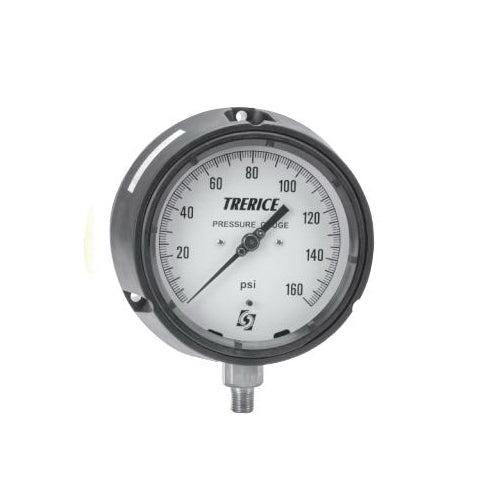

Trerice 450B4502LA30 450 Dry Pressure Gauge 0 to 30 psi 1/4 in MNPT

Product Description

The Trerice 450B4502LA30 is a dry pressure gauge designed by H.O. Trerice for industrial and petrochemical applications. Constructed with a fiberglass reinforced polypropylene case, this pressure gauge ensures durability in harsh environments.

• Pressure range from 0 to 30 psi
• Accuracy of +/- 0.5 percent
• Lower mounting with a 1/4 in MNPT connection

Product Highlights

This gauge features a blow-out back design to enhance safety and a field liquid-fill capability, which allows for easy maintenance without special kits. It is equipped with a sturdy bronze tube and brass socket for reliable operation.

Product Information

Standard Information

• Manufacturer: H.O. Trerice
• Brand: Trerice

Technical Specifications

• Type: Dry
• Series: 450
• Pressure Range: 0 to 30 psi
• Accuracy: +/- 0.5%
• Connection Size: 1/4 in MNPT
• Dial Diameter: 4-1/2 in
• Mounting Type: Lower
• Material: Fiberglass Reinforced Polypropylene Case
• Temperature Rating: 250 deg F
• Dimensions: 5.83 in Dia x 3.25 in D
