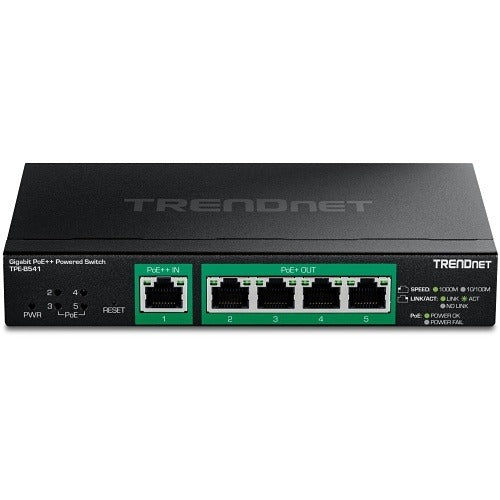

Trendnet TPE-B541 4-port Gigabit Poe+ Switch

Product Description

The TRENDNET TPE-B541 is a compact, PoE-powered Gigabit switch designed for enterprise and commercial network installations. It provides four 802.3at PoE+ ports and one 802.3bt PoE++ uplink port, allowing the unit itself to receive up to 60 watts of power over Ethernet from an upstream PSE switch or injector — no local AC power connection required. This makes it well suited for deployments where running separate power is not practical, such as ceiling-mounted access points, security camera clusters, or remote IDF closets. Network technicians and low-voltage installers are the primary trades working with this device.

The TPE-B541 fits residential and commercial network environments where a small, remotely powered switch is needed to extend PoE connectivity to endpoints. Typical installation scenarios include distributing power and data to IP cameras, VoIP phones, wireless access points, or other 802.3af/at-compliant devices from a single upstream PoE++ source port. The unit operates as an enterprise PoE device in structured cabling systems and is packaged as a single unit (sold individually).

Key Features

• Four Gigabit 802.3at PoE+ downstream ports for powering connected devices
• One Gigabit 802.3bt PoE++ port receives up to 60 watts to power the switch itself
• No local AC power required — fully PoE-powered for flexible remote placement
• Gigabit throughput on all five ports for full-speed data delivery
• Compact form factor suited for ceiling, wall, or junction-box mounting near endpoints

Compatibility

Designed for use with 802.3bt PoE++ upstream switches or injectors capable of supplying at least 60 watts on the uplink port; downstream ports support 802.3af and 802.3at PoE-compatible end devices.

Installation Notes

Installation is typically performed by a low-voltage network technician or structured cabling installer. Verify that the upstream PSE port is rated for 802.3bt PoE++ and can supply sufficient wattage to power both the switch and its connected devices before deployment. Follow TIA-568 cabling standards and local low-voltage codes when routing Ethernet runs to and from the unit. Do not exceed the total PoE budget across all downstream ports simultaneously without confirming the upstream source capacity.
