Transolid twk363696-ki31h Shower Wall Kit Savanna Grey

Product Description

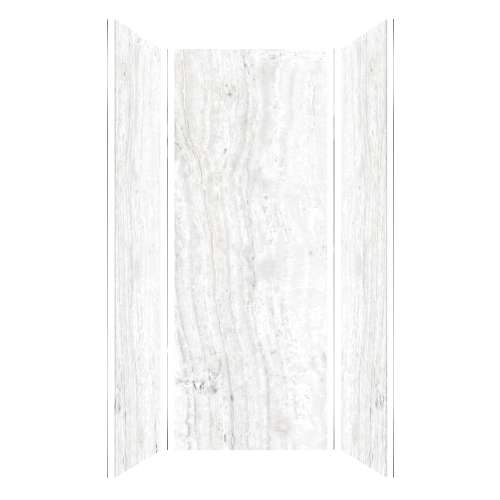

The TRANSOLID twk363696-ki31h is a trimmable shower wall kit from the Titan collection, designed for glue-up installation over existing surfaces in residential and commercial settings. The kit includes seven pieces: one 39-inch back panel, two 39-inch side panels, two aluminum inside corner trim pieces, and two aluminum edge trim pieces. Each panel measures 4mm (0.1575 inches) thick and is built with three layers — an aluminum face, a mineral resin core, and an aluminum backing — delivering a scratch-resistant, water-resistant surface with a smooth honed finish in Savanna Grey. Licensed contractors and experienced installers typically handle this type of panel work.

This kit fits shower enclosures with an opening size of 36 inches, accommodating front-to-back dimensions of 33 to 40 inches and left-to-right dimensions of 35 to 40 inches, with a top-to-bottom height of 95 inches or greater. The trimmable panels make it suitable for both new construction and remodel projects. Beyond shower enclosures, the panels can also be applied to bathroom walls, laundry room walls, accent walls, and kitchen backsplashes. The faucet cutout can be positioned on the left or right side to suit the existing rough-in layout.

Key Features

• Three-layer panel construction: aluminum surface, mineral resin core, and aluminum backing for rigidity and scratch resistance
• Trimmable panels accommodate front-to-back dimensions of 33 to 40 inches and left-to-right dimensions of 35 to 40 inches
• Glue-up installation bonds directly over existing wall surfaces without the need for demolition
• Smooth honed Savanna Grey finish mimics natural stone with a consistent, low-maintenance surface
• Kit includes all seven pieces needed for a three-wall shower enclosure, including corner and edge trim
• Rated for both residential and commercial use; faucet panel position is left or right

Compatibility

Designed as an OEM-style replacement and new-installation kit for three-wall shower enclosures with a 36-inch opening. Optional shelving and storage accessories (sold separately) compatible with this system include models STH5814, STH4614, STH3414, STH1414, STV5814, STV4614, STV3415, SSC, SS17, JGBS20, and JGBS30. Suggested Transolid Trimslate bases (sold separately) include models FZS4836C, FZS5140C, FZS6032, FZS6032C, FZS6036, FZS6036C, FZS6040, FZS6040C, FZS6332, FZS6332C, FZS6336, FZS6336C, FZS6340, and FZS6340C.

Installation Notes

Installation is performed by a qualified tile setter, remodeling contractor, or licensed general contractor using standard glue-up methods. Before starting, shut off the water supply and ensure the existing substrate is clean, dry, flat, and structurally sound. Panels must be trimmed to the final opening dimensions prior to adhesive application; follow the adhesive manufacturer's cure time before exposing the surface to water. Local building codes govern substrate requirements and waterproofing standards — verify compliance before installation.

Technical Specifications

• Width: 39 inches
• Length: 36 inches
• Height: 96 inches
• Thickness: 0.1575 inches (approximately 4mm)
• Opening Size: 36 inches
• Front to Back Dimension: 33 to 40 inches
• Left to Right Dimension: 35 to 40 inches
• Top to Bottom Dimension: 95 inches or greater
• Weight: 102 pounds
• Material: Aluminum and Mineral Resin
• Wall Pattern: Smooth Honed
• Color: Savanna Grey
• Shape: Rectangular
• Number of Pieces: 7
• Installation Method: Glue Up
• Faucet Panel Position: Left or Right
• Shower Faucet Included: No
• Residential or Commercial: Residential and Commercial
• Warranty: 10-year limited residential, 3-year limited commercial

Standard Information

• Brand: TRANSOLID
• Manufacturer Part Number: twk363696-ki31h
