Transolid fpt6036l-sw Pre-tiled Shower Base 60x36 Left Drain

Product Description

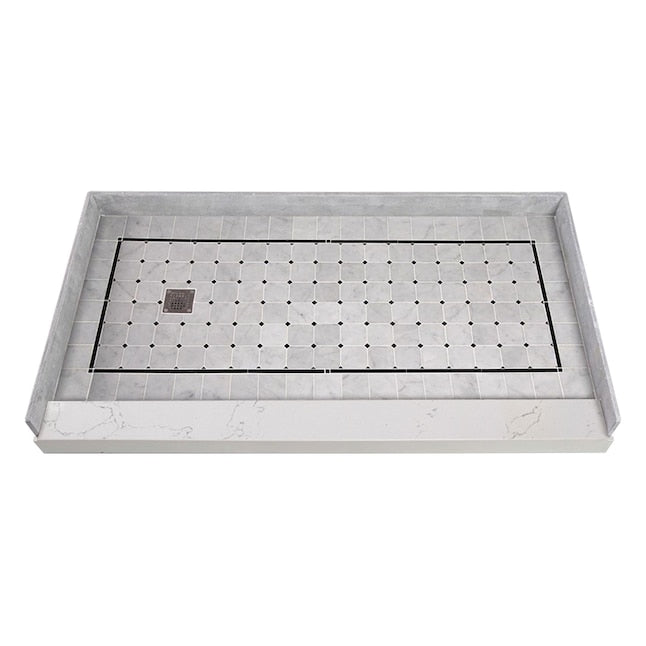

The TRANSOLID fpt6036l-sw is a 60-inch by 36-inch pre-tiled, pre-grouted shower base designed for alcove installations with a left-hand drain configuration. Real marble tile is hand-set onto an SMC (Sheet Molding Compound) base using a flexible epoxy adhesive and grout, eliminating the need for field tiling. The base arrives pre-leveled and pre-sloped, ready to be set over a thinset mortar bed. Key structural specs include a 3.5-inch threshold height, 4.5-inch threshold depth, and a 2-inch compatible drain size. At 210 pounds, the unit is built for long-term residential and commercial use, with a stated weight capacity of 1,763.7 pounds.

The fpt6036l-sw is suited for new construction and remodel alcove shower installations in both residential and light commercial settings. The off-white hexagon marble tile surface includes natural brown and grey tone variations. An integrated 6-inch tiling flange is built into the perimeter to create a water-managed transition between the base and wall surround. The base pairs with Transolid Titan, Prodigy, Expressions, and SaraMar wall kits for a coordinated shower system. A polished stainless-steel drain assembly with a 2-inch PVC solvent-weld or flexible connection is included, along with an off-white quartz threshold with a subtle swirl pattern.

Key Features

• Real marble tile hand-set with flexible epoxy grout onto an SMC base for a pre-finished surface
• Pre-leveled and pre-sloped deck installs directly over a thinset mortar bed
• Integrated 6-inch tiling flange manages the base-to-wall water transition
• Structural ribbing radiates from the drain opening to create a flex-free, water-tight foundation when mortared
• Polished stainless-steel 2-inch drain assembly included with PVC solvent-weld or flexible connection option
• Off-white quartz threshold included, 3.5 inches tall and 4.5 inches deep, compatible with most standard shower doors

Compatibility

Designed for alcove shower installations and confirmed compatible with Transolid Titan, Prodigy, Expressions, and SaraMar wall kits. Drain connection accepts 2-inch PVC solvent-weld or flexible fittings.

Installation Notes

Installation is typically performed by a licensed plumber or tile contractor. Power down any adjacent GFCI-protected circuits and shut off water supply to the work area before beginning rough-in. The base must be set in a full bed of thinset mortar to activate the structural ribbing system and achieve a flex-free, watertight result — do not install over an unsupported subfloor. Rough-in drain placement and alcove framing dimensions should be confirmed against the manufacturer spec sheet and installation PDF before setting the base.

Technical Specifications

• Dimensions: 60 inches x 36.25 inches
• Threshold Height: 3.5 inches
• Threshold Depth: 4.5 inches
• Weight: 210 pounds
• Weight Capacity: 1763.7 pounds
• Material: Marble tile on SMC base
• Drain Size: 2 inches
• Drain Location: Left
• Configuration: Left
• Threshold: Single
• Color: White Square
• Color Family: White
• Shape: Rectangle
• Installation Type: Alcove
• Drain Assembly Included: Yes
• Hardware Included: Yes
• Integrated Seat: No
• ADA Compliant: No
• Residential and Commercial Use: Yes
• Warranty: 5-Year Limited Residential / 3-Year Commercial
• Country of Origin: China

Standard Information

• Brand: TRANSOLID
• Manufacturer Part Number: fpt6036l-sw
