Transolid fpt6036l-ho Pre-tiled Shower Base 60x36 Left Drain

Product Description

The TRANSOLID fpt6036l-ho is a pre-tiled, pre-grouted shower base measuring 60 inches long by 36.25 inches wide with a 3.5-inch threshold height. It is built on an SMC structural core with real marble tile hand-installed using a flexible epoxy adhesive and grout. The base is pre-leveled and pre-sloped for direct installation over a thinset mortar bed, eliminating field tiling. It ships with a polished stainless-steel drain assembly sized for a 2-inch PVC solvent-weld or flexible connection. At 210 pounds, the unit is rated for a weight capacity of 1,763.7 pounds and is suited for both residential and commercial alcove installations.

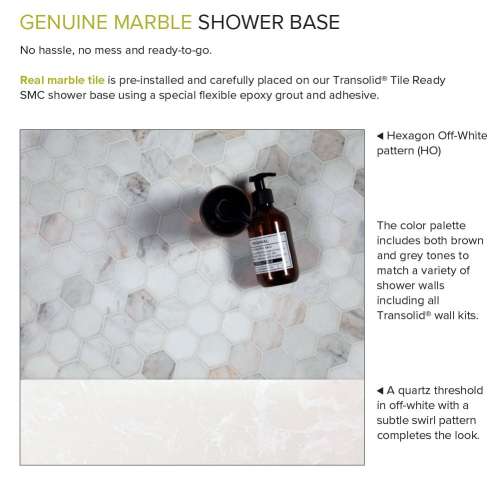

This base is designed for alcove shower installations in new construction or remodel applications. The left-hand drain configuration and rectangular shape fit standard 60-inch alcove openings. The off-white hexagon marble tile surface includes brown and grey tonal variation, making it compatible with a wide range of wall finishes. A quartz threshold in off-white with a subtle swirl pattern is included and measures 3.5 inches high by 4.5 inches deep, accommodating most standard shower door assemblies. Rated for both residential and commercial use, this base suits projects where a finished tile appearance is required without field-applied tile work.

Key Features

• Real marble tile pre-installed by hand using flexible epoxy adhesive and grout — no field tiling required
• Integrated 6-inch tiling flange with a waterproof envelope prevents water migration at the base-to-wall joint
• Structural SMC core with radiating underside ribs creates a flex-free, water-tight foundation when set in thinset mortar
• Includes polished stainless-steel drain assembly with 2-inch PVC solvent-weld or flexible connection
• Quartz threshold included — 3.5-inch height and 4.5-inch depth fits most standard shower door frames
• Weight capacity of 1,763.7 pounds; rated for residential and commercial use
• Covered by a 5-year limited residential warranty and a 3-year commercial warranty

Compatibility

Designed for alcove installations with a 60-inch opening. Compatible with Transolid Titan, Prodigy, Expressions, and SaraMar wall kit systems. Drain outlet accepts a 2-inch PVC solvent-weld or flexible connection.

Installation Notes

Installation is typically performed by a licensed plumber or tile contractor familiar with shower pan systems. Power down any relevant electrical circuits and shut off water supply before beginning work in the shower area. The base must be set into a thinset mortar bed on a structurally sound, level subfloor — do not install over an unsupported or uneven surface. Local plumbing codes govern drain connection requirements; consult the applicable IPC or local equivalent before roughing in the drain.

Technical Specifications

• Length: 60 inches
• Width: 36.25 inches
• Threshold Height: 3.5 inches
• Threshold Depth: 4.5 inches
• Drain Size: 2 inches
• Weight: 210 pounds
• Weight Capacity: 1,763.7 pounds
• Material: Marble tile over SMC base
• Shape: Rectangle
• Color: Off-White Hexagon
• Drain Location: Left
• Installation Type: Alcove
• ADA Compliant: No
• Residential/Commercial: Residential and Commercial
• Warranty: 5-Year Limited Residential / 3-Year Commercial

Standard Information

• Brand: TRANSOLID
• Manufacturer Part Number: fpt6036l-ho
