Transolid fpt6032c-sw 60x32 Pre-tiled Shower Base White

Product Description

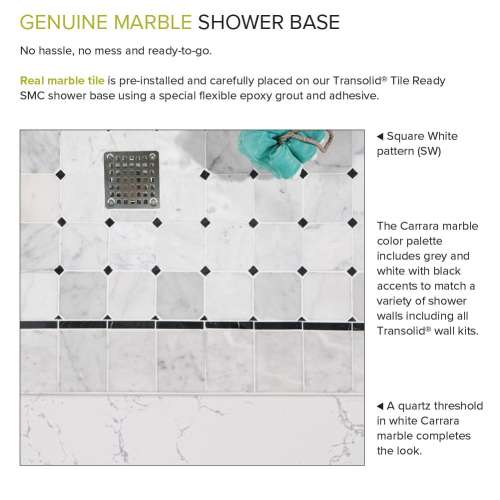

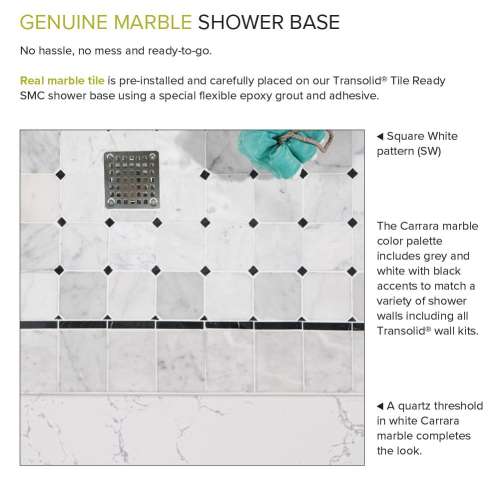

The TRANSOLID fpt6032c-sw is a pre-tiled, pre-grouted shower base designed for alcove installations in both residential and commercial settings. Measuring 60 inches in length by 32.25 inches in width, it combines real marble tile with an SMC (sheet molding compound) base bonded using a flexible epoxy adhesive and grout. The marble tile is hand-installed, with natural stone variation adding character to each unit. A polished stainless-steel center drain with a 2-inch PVC solvent-weld or flexible connection is included. The base ships pre-leveled and pre-sloped, reducing on-site labor during installation. Licensed plumbers and tile contractors are the typical installers for this product type.

The fpt6032c-sw suits alcove shower configurations in new construction or remodel projects. It is designed for pairing with Transolid Titan, Prodigy, Expressions, or SaraMar wall kits, offering color coordination across product lines. The color palette includes off-white with brown and grey tones suited to a wide range of wall finishes. A quartz threshold in off-white with a subtle swirl pattern is included, measuring 3.5 inches in height and 4.5 inches in depth, accommodating most standard shower door assemblies. The base carries a weight capacity of 1,763.7 pounds and is rated for both residential and commercial use.

Key Features

• Real marble tile pre-installed by hand onto an SMC base using flexible epoxy grout and adhesive
• Pre-leveled and pre-sloped surface installs directly over a thinset mortar bed
• Integrated 6-inch tiling flange and waterproof envelope prevent water infiltration between base and walls
• Structural ribs on the underside radiate from the drain opening, creating a flex-free, watertight foundation when set in mortar
• Center drain with 2-inch PVC solvent-weld or flexible connection included
• Quartz threshold included at 3.5 inches height and 4.5 inches depth
• Rated for residential and commercial applications with a 1,763.7-pound weight capacity

Compatibility

Designed for alcove shower installations and confirmed compatible with Transolid Titan, Prodigy, Expressions, and SaraMar wall kits. Accepts a 2-inch drain connection via PVC solvent weld or flexible coupling.

Installation Notes

Installation should be performed by a licensed plumber or qualified contractor familiar with IPC-compliant shower base installation procedures. Power down any in-wall electrical and shut off the water supply before beginning work. The base is set in a thinset mortar bed — do not install over an unsupported or hollow subfloor cavity. Verify drain rough-in alignment to the center drain location prior to setting the base.

Technical Specifications

• Length: 60 inches
• Width: 32.25 inches
• Height: 3.5 inches
• Material: Marble / SMC
• Drain Location: Center
• Drain Size: 2 inches
• Threshold Height: 3.5 inches
• Threshold Depth: 4.5 inches
• Weight: 200 pounds
• Weight Capacity: 1763.7 pounds
• Shape: Rectangle
• Color / Finish: White Square
• Installation Type: Alcove
• Drain Assembly Included: Yes
• ADA Compliant: No
• Residential / Commercial: Residential and Commercial
• Warranty: 5-Year Limited Residential / 3-Year Commercial

Standard Information

• Brand: TRANSOLID
• Manufacturer Part Number: fpt6032c-sw
