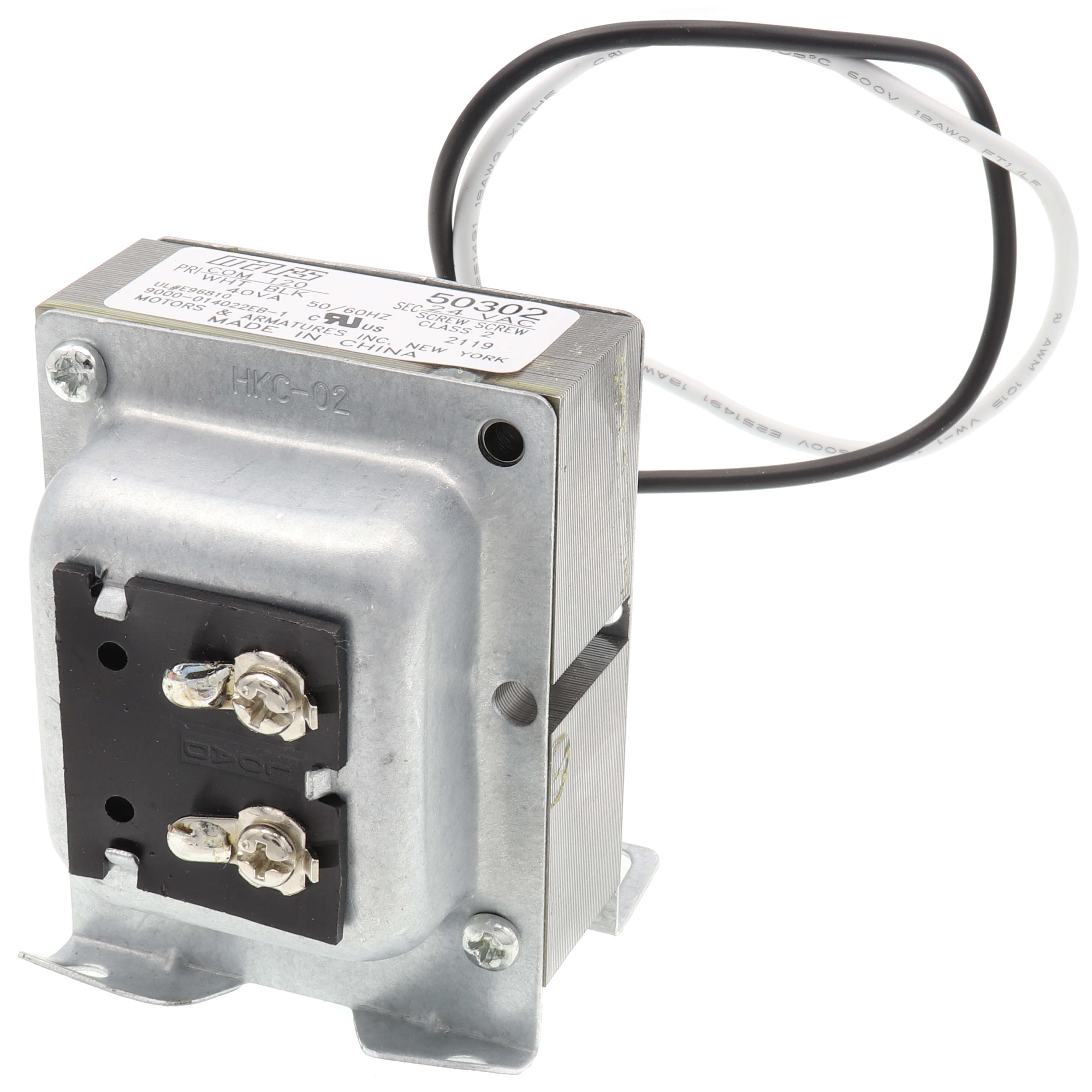

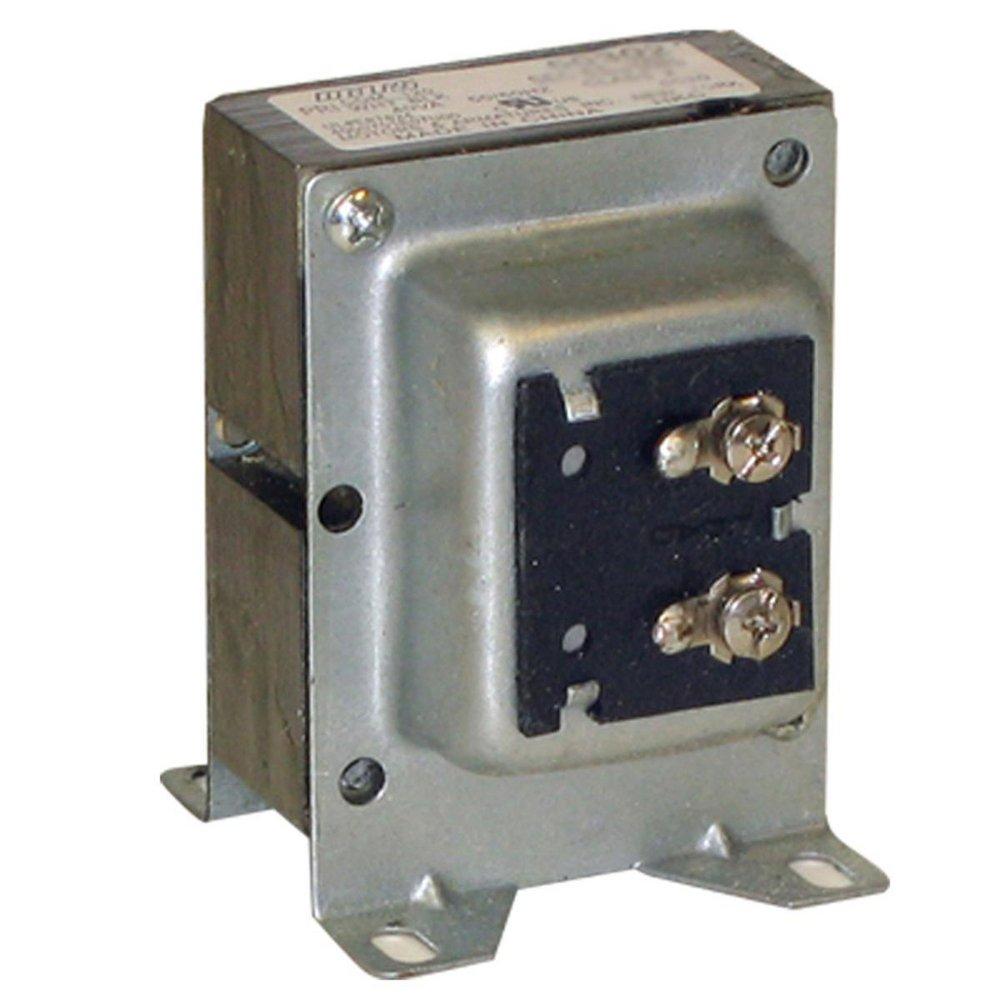

MARS 50302 Series 503 120V 3-way Transformer 40VA 120V

Product Description

The MARS Series 503 120V 3-way Transformer, model 50302, is designed for converting primary voltage to low secondary voltage, making it suitable for HVAC applications. This transformer features color-coded leads for easy installation and is recognized for its UL class. It can be mounted in various configurations, enhancing its application versatility.

• Low heat generation due to its effective design.
• Can be mounted using various methods, including plate mounting.
• Recognized for UL Class 2 safety standards.

Product Highlights

This transformer is ideal for HVAC systems, air conditioning, heating, and refrigeration applications.

Product Information

Standard Information

• Brand: MARS
• MPN: 50302
• Part Number: MAR50302

Technical Specifications

• Primary Voltage: 120 VAC
• Secondary Voltage: 24 VAC
• Power Rating: 40 VA
• Mounting Type: Multi-mount
• Dimensions: 2.52 inches W x 2.937 inches H
• Weight: 1.7 lbs
• Frequency Rating: 60 Hz
• Certifications: UL 5085 Class 2
