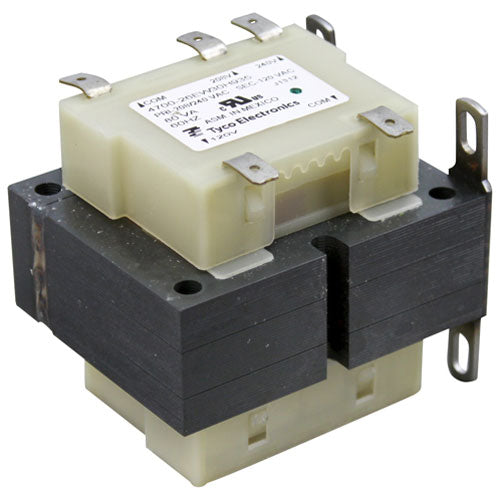

Transformer 80VA (3.25 x 2.875 x 2.625) HT2.17.004.00 for Hatco HT2.17.004.00

Product Description

This item for Hatco HT2-17-004-00 is a transformer designed for converting voltage. It operates on a primary voltage of 208/240V and provides a secondary output of 120V with a power rating of 80VA. This transformer is useful in various applications that require efficient voltage regulation.

• Rated for primary input of 208/240V.
• Secondary output of 120V.
• Features four mount holes for easy installation.

Product Highlights

This transformer is enclosed and comes with a sturdy design.

Product Information

Standard Information

• Product Notes: Includes primary 208/240V to secondary 120V conversion; enclosed coil design.
• Dim Weight: 0.11991

Technical Specifications

• Weight: 3
• Length: 3.25 inches
• Width: 2.875 inches
• Height: 2.625 inches
• Mounting Holes: 4 (2-1/8 x 2-1/4)
• Connection Tabs: 5, 1/4 inch tabs
• Compatible Models: C-12, C-13, C-15, C-17, C-18, C-24, C-27, C-30, C-39, C-4, C-45, C-5, C-54, C-58, C-6, C-7, C-9, S-12, S-13, S-15, S-17, S-18, S-24, S-27, S-30, S-36, S-39, S-40, S-45, S-54, S-57, S-58, S-6, S-9
