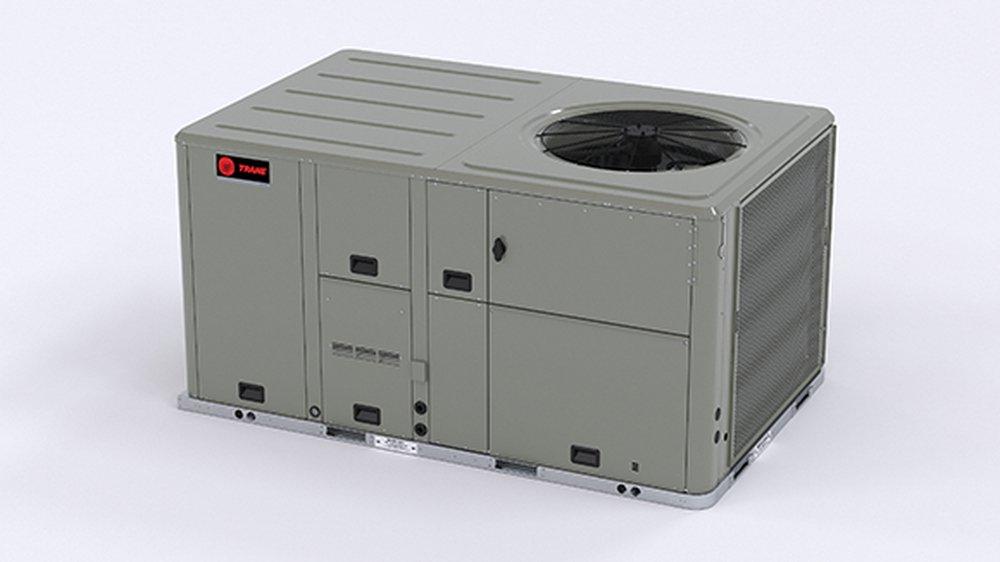

Trane YSJ090A3S0L0001* Precedent™ 7.5 Ton, 230V 3 Phase Convertible Standard Efficiency Low Heat Econo Packaged Gas/Electric Unit

Product Description

The TRANE YSJ090A3S0L0001* is a Precedent™ 7.5 Ton, 230V 3 Phase Convertible Standard Efficiency Low Heat Econo Packaged Gas/Electric Unit designed for commercial applications. This unit meets a wide range of needs, from standard efficiency to ultra high efficiency. It features gas pack-electric cooling plus gas heating and all models meet DOE 2023 minimum efficiency regulations. The unit uses R-410A refrigerant and has a micro-channel coil type.

• Meets a wide range of needs, from standard efficiency to ultra high efficiency
• Feature-rich and cost-effective
• Cooling only with optional electric heat -all electric

Product Highlights

Commercial HVAC unit with gas/electric functionality, 7.5-ton capacity, and compliance with DOE 2023 efficiency standards.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YSJ090A3S0L0001*

Technical Specifications

• A2L Compatible: No
• Application: Commercial
• BTU Cooling Rating: 91000 Btu/h
• BTU Heat Rating: 120000 Btu/h
• Blower Type: Direct Drive
• CFM: 2475 ft3/min
• Coil Type: Micro-channel
• Collection: Precedent™
• Compressor Type: Scroll
• Configuration: Convertible
• Decibel Rating (dB): 86 dB
• EER: 11.0
• Energy Star Compliant: No
• Fuel Type: Natural Gas, Propane
• Horsepower: 4.3 hp
• Max Fuse Size: 50
• Phase: Three Phase
• Power Source: Gas
• Refrigerant: R-410A
• Stages: Three
• Tonnage: 7.5 Ton
• UL Listed: Yes
• Volts: 208/230V
• Watts: 8.18 kW
