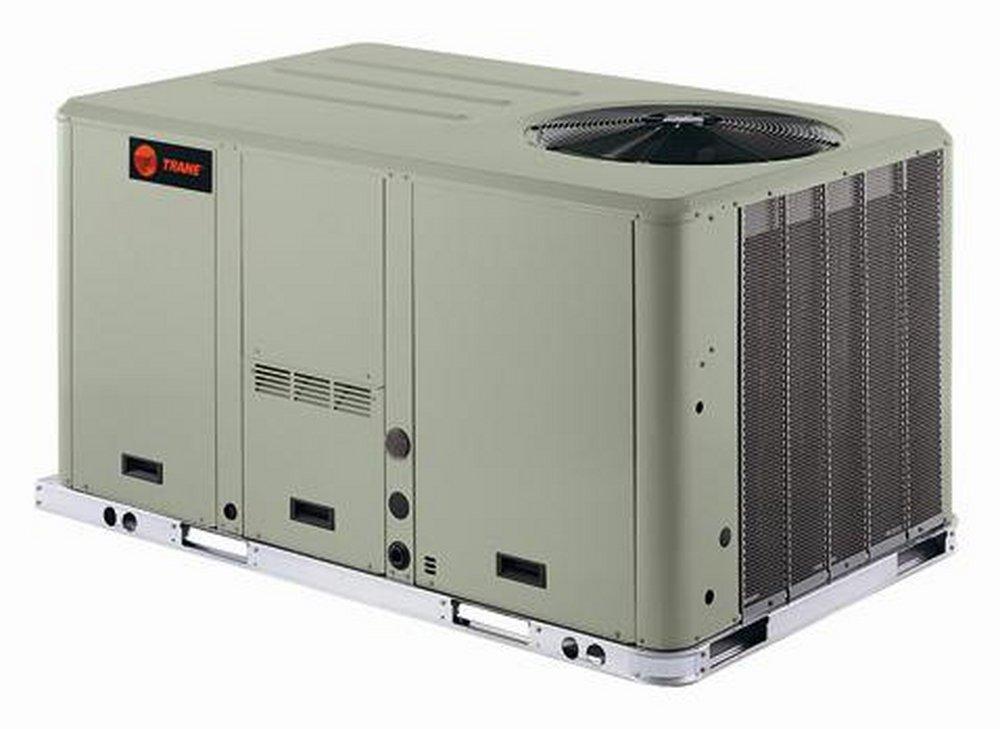

Trane YSJ090A3S0L0000 Precedent 7.5 Ton 230V 3 Phase

Product Description

The TRANE YSJ090A3S0L0000 Precedent™ is a 7.5 Ton, 230V, 3-Phase convertible packaged gas/electric unit that meets a wide range of needs, from standard efficiency to ultra-high efficiency. It features cooling with optional electric heat, gas pack-electric cooling plus gas heating, and heat pump-all-electric refrigerant-system cooling and heating. All models meet DOE 2023 minimum efficiency regulations.

• Meets a wide range of needs, from standard efficiency to ultra high efficiency
• Feature-rich and cost-effective
• Cooling only with optional electric heat -all electric

Product Highlights

This Trane Precedent unit provides reliable compressors and computer-aided run testing to ensure systems provide the best quality and meet long-term comfort needs.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YSJ090A3S0L0000*
• Country of Origin: United States

Technical Specifications

• A2L Compatible: No
• AMP: 110, 16.4, 58, 9.2
• Application: Light Commercial, Retail, Restaurant, Church and Office
• BTU: 91000
• BTU Cooling Rating: 91000 Btu/h
• BTU Heat Rating: 120000 Btu/h
• Blower Type: Direct Drive
• CFM: 2475 ft3/min
• Coil Type: Micro-channel
• Collection: Precedent™
• Compressor Type: Scroll
• Configuration: Convertible
• Decibel Rating (dB): 86 dB
• EER: 11.0
• Energy Star Compliant: No
• Fuel Type: Natural Gas, Propane
• Horsepower: 4-3/10 hp
• MBH: 91
• Max Fuse Size: 50
• Phase: Three Phase
• Power Source: Gas
• RPM: 3500
• Refrigerant: R-410A
• Stages: Single
• Tonnage: 7.5 Ton
• UL Listed: Yes
• Volts: 230V
• Watts: 8.18 kW
• Enclosure Finish: Zinc Coated
• Enclosure Material: ASTM B117/672 Heavy Gauge Galvanized Steel
• Frequency Rating: 60 Hertz
• Operating Temperature: 0 to 125 Deg F
• Power Rating: 8.18 Kilowatt
• Temperature Control Type: Thermostat
• Type: Convertible From DownFlow & Horizontal
• Voltage Rating: 208/230 Volt AC
• Number of Phases: 3
• Refrigerant Control Type: Thermostatic Expansion Valve
• Motor Type: 1850 RPM Direct Drive/Variable Speed
• Connection Size: 3/4 Inch (Gas Pipe)
• Heating Capacity: 84000 to 120000 BTU/Hour (Input), 68000 to 97200 BTU/Hour (Output)
• Energy Efficiency: 11 EER/14.6 IEER
• Air Flow Rating: 2475 CFM
• Furnished Filter Type: Throwaway
• Number of Rows: 1
• Fins per Inch: 23
• Noise Level: 86 Decibel
• Includes: Symbio 700 Control System
• Applicable Standard: AHRI 210-240, ANSI Z21.47
• Number of Cool Speeds: 1
• Number of Fan Motors: 1
• Number of Compressors: 1
• System Configuration: Downflow or Horizontal
• Number of Zones: 5 or More
• Model: YSJ090A3S0L0000
• Country of Origin: United States
