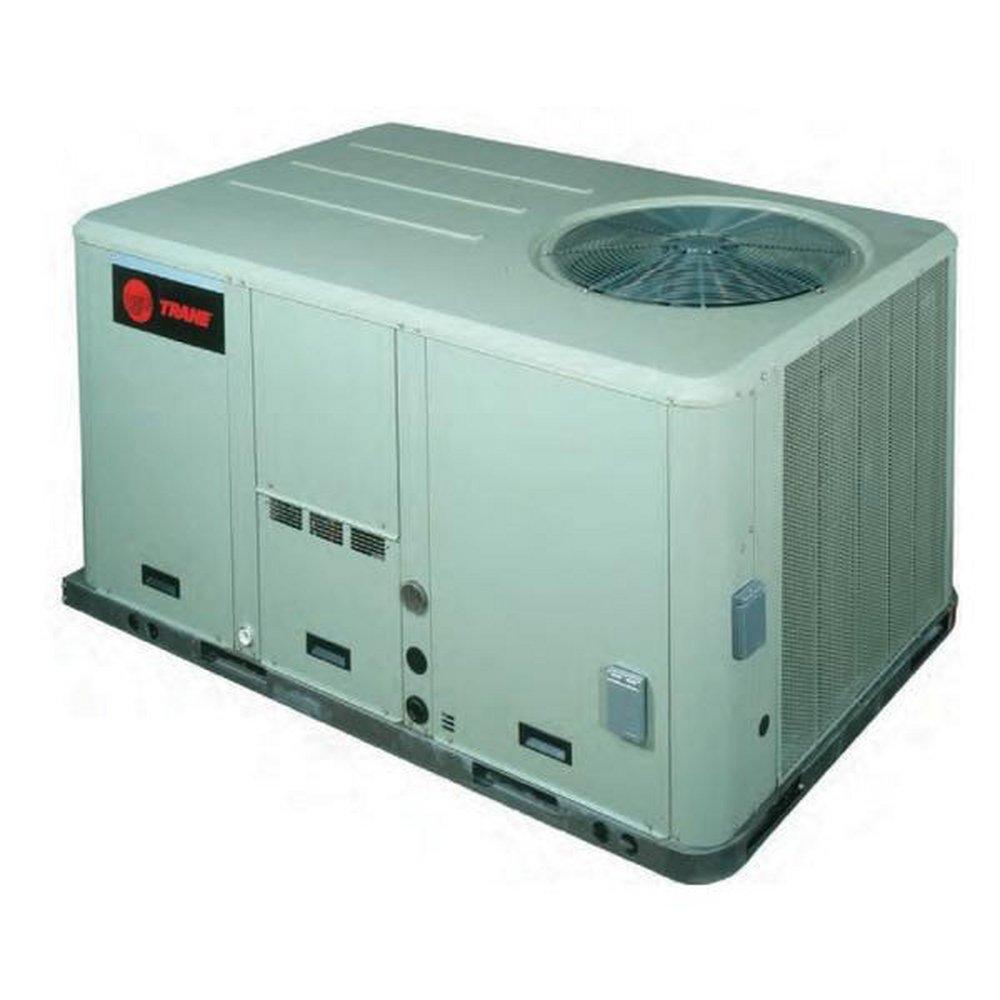

Trane YHC067E3RHA204U YHC Series 5 Ton Commercial Packaged Rooftop Gas/Electric Unit 230V

Product Description

The TRANE YHC067E3RHA204U is a YHC Series 5 Ton commercial packaged rooftop gas/electric unit operating at 230V. Designed for commercial and rooftop applications, this unit features a two-stage compressor and a direct drive blower. It uses R-410A refrigerant and has a SEER2 rating of 17.5.

• BTU Cooling Rating: 60000 Btu/h
• Fuel Type: Propane, Natural Gas
• Compressor Type: Scroll

Product Highlights

Ideal for commercial use, this TRANE rooftop unit provides efficient cooling and heating with a robust design.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YHC067E3RHA204U

Technical Specifications

• Application: Commercial, Rooftop
• BTU Cooling Rating: 60000 Btu/h
• BTU Heat Rating: 104000 Btu/h
• Blower Type: Direct Drive
• CFM: 2000
• Coil Type: Lanced
• Collection: YHC Series
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Configuration: Convertible
• Decibel Rating (dB): 87 dB
• EER: 13.0
• Fuel Type: Propane, Natural Gas
• Gas Connection Size: 1/2
• Heat Exchanger Type: Aluminized Steel
• Horsepower: 1 hp
• IEER: 13
• IEER Range: 0 - 13.0
• Ignition System: Direct Spark Ignition
• Lock Rotor Amps (LRA): 110
• Max CFM: 3953
• Max Fuse Size: 45
• Minimum Circuit Ampacity (MCA): 33
• Number of Compressors: 1
• Number of Condenser Fan Motors: 1
• Phase: Three Phase
• Power Source: Electric, Gas
• RPM: 1075
• Rated Load Amps (RLA): 16.2
• Refrigerant: R-410A
• Refrigeration Control Type: TXV
• SEER: 17.5
• SEER2: 17.5
• SEER2 Range: 15.2 - 40.0
• Stages: Single
• Tonnage: 5 Ton
• Volts: 230V
• Weight: 822
