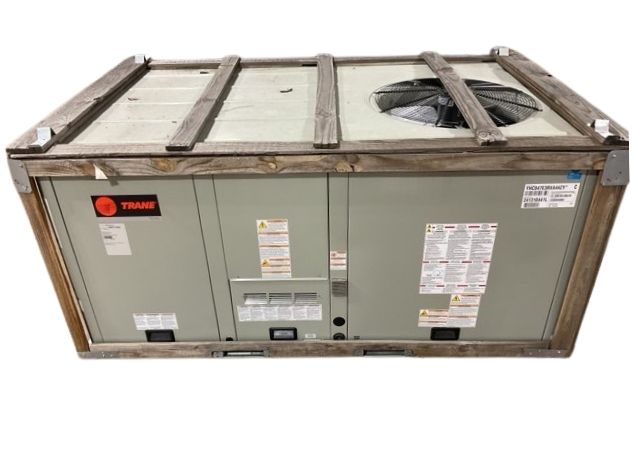

Trane YHC047E3RXA44ZY 4 Ton Two-Stage Convertible Natural Gas/Electric Packaged Unit, 17.5 SEER

Product Description

The TRANE YHC047E3RXA44ZY is a 4 Ton Two-Stage Convertible Natural Gas/Electric Packaged Unit with a 17.5 SEER rating. It operates at 208-230V, 60Hz, and 3-phase, using R410A refrigerant with a factory charge of 10.8 lbs. The unit delivers 1920 CFM, with a BTU input of 60,000 and output of 49,000 for heating, and a cooling BTU of 50,500.

• Two-stage convertible natural gas/electric packaged unit
• High SEER rating of 17.5 for energy efficiency
• Operates on 208-230V, 60Hz, 3-phase power

Product Highlights

Efficient and powerful, this packaged unit provides both heating and cooling for residential or commercial applications.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YHC047E3RXA44ZY

Technical Specifications

• Application: PACKAGED GAS/ELEC UNIT
• Cabinet Size: 88.625
• Capacity: 4
• Circuit Phase: 3
• Circuit Voltage: 208-230
• Maximum Hertz: 60
• Stage: 2
• Refrigerant: R410A
• Factory Charge: 10.8 lbs
• EER: 13
• Department of Energy Guide SEER (Range): 17.5
• CFM: 1920
• BTU Input: 60,000
• BTU Output: 49,000
• Cooling BTU: 50,500
• Heating BTU: 60,000
