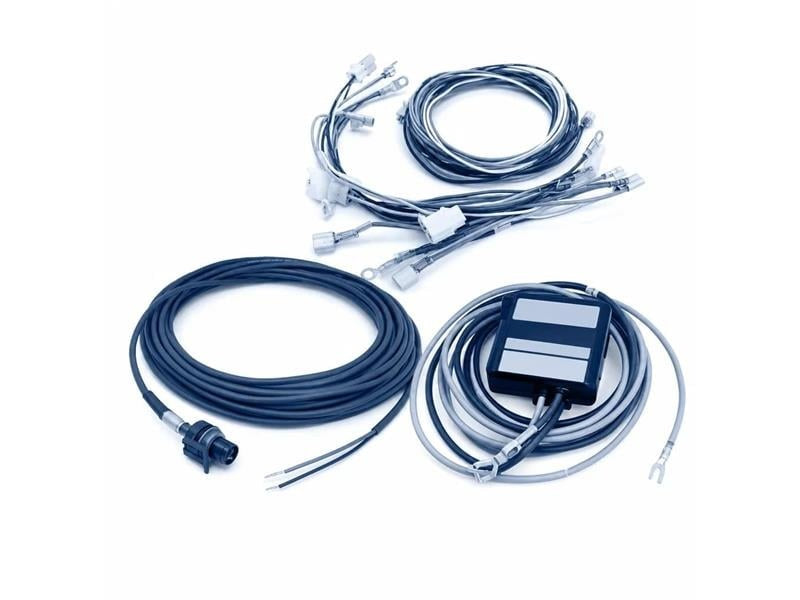

Trane wir13337 Wire Harness Compressor Shield Assembly

Product Description

The TRANE wir13337 is a wire harness and compressor shield assembly designed for use in TRANE HVAC systems. This component routes and protects electrical connections associated with the compressor circuit, helping to maintain safe and reliable operation within the refrigeration or air conditioning system. It is typically installed by licensed HVAC technicians during compressor service, replacement, or electrical troubleshooting procedures. The assembly keeps wiring organized, reduces the risk of chafing or contact with hot surfaces, and ensures connections remain secure throughout the compressor operating cycle.

This wire harness and compressor shield assembly is suited for residential and light commercial HVAC applications where TRANE compressor wiring protection is required. It is installed as part of the compressor electrical circuit and is typically accessed during refrigerant system service or compressor replacement. Technicians replacing a failed harness or damaged shield will install this assembly to restore the original wiring configuration and protection level.

Key Features

• OEM wire harness and compressor shield assembly for TRANE HVAC systems
• Protects compressor wiring from abrasion, heat, and contact with adjacent components
• Maintains proper electrical routing within the compressor circuit
• Designed as a direct OEM replacement to simplify installation and ensure fit

Compatibility

Designed as an OEM-style replacement wire harness and compressor shield assembly for TRANE HVAC systems requiring part number wir13337.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all electrical power to the unit and recover refrigerant per EPA Section 608 requirements before accessing the compressor compartment. Ensure all wiring connections are fully seated and the shield is properly positioned before restoring power. Follow applicable NEC guidelines for electrical connections within the equipment.
