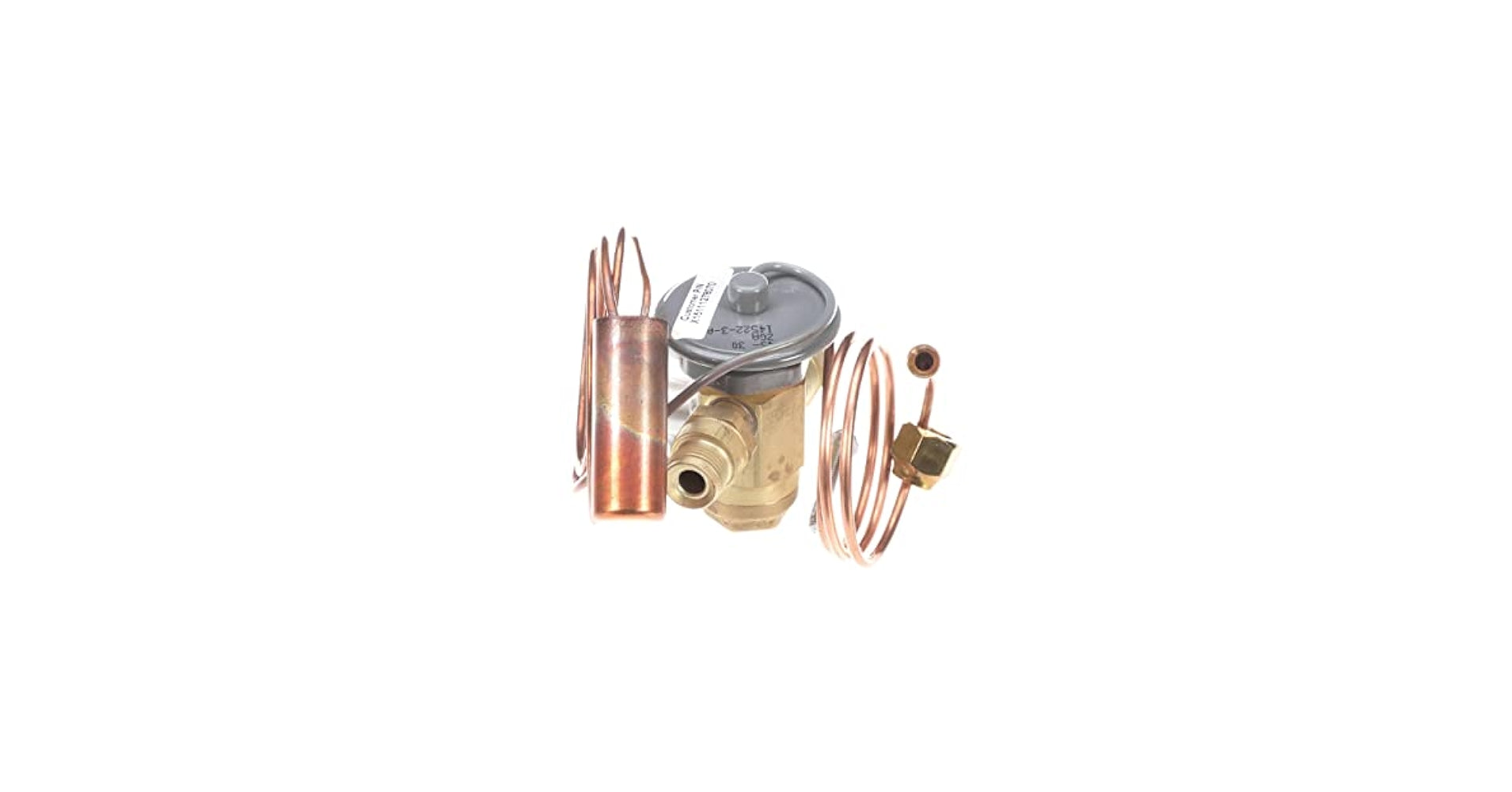

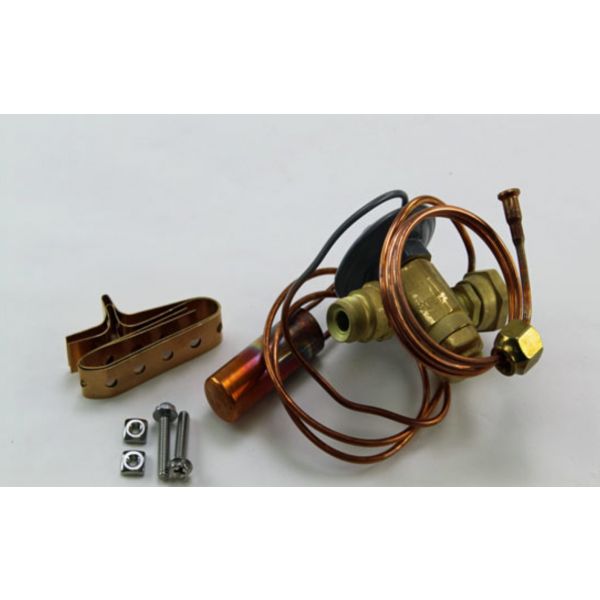

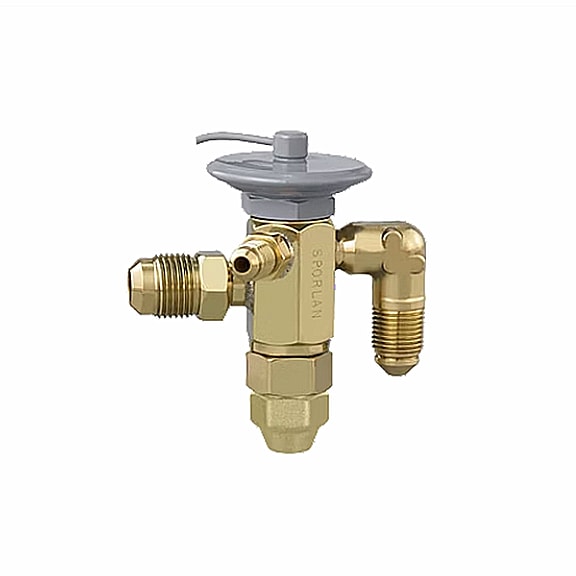

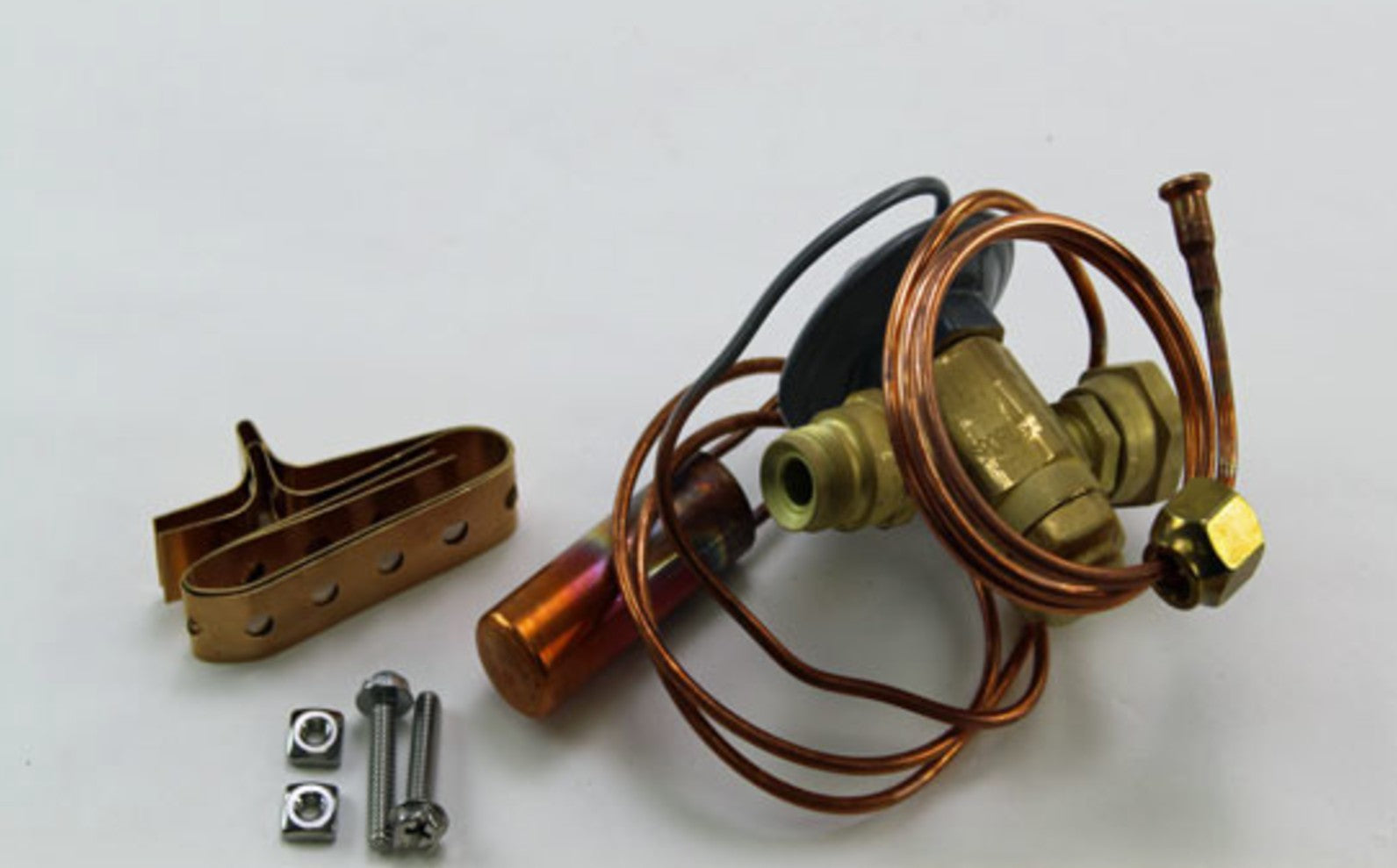

Trane VAL8620 Thermal Expansion Valve R-22 5 Ton

Product Description

The Trane VAL8620 is a thermostatic expansion valve tailored for HVAC systems. This model is specifically designed for those utilizing R-22 refrigerant and is suitable for five-ton applications. The valve expertly regulates the flow of refrigerant entering the evaporator coil, adjusting as the refrigerant shifts from liquid to gas. This process ensures temperature stability and efficiency in your HVAC system.

• Regulates refrigerant flow for optimized performance.
• Compatible with R-22 refrigerant for varied HVAC setups.
• Mechanical fittings ensure easy installation and functionality.

Product Highlights

This valve manages refrigerant flow to maintain consistent temperatures in evaporators.

Product Information

Standard Information

• Brand: Trane
• MPN: VAL8620

Technical Specifications

• Valve Type: Expansion Valve
• Refrigerant: R-22
• Capacity: 5 Ton
• Connection Type: Male x Female
• Flow Control: Non-bleed
• Inlet Size: 0.625 inches
• Outlet Size: 0.625 inches
• Length: 5.5 inches
• Weight: 1.15 lbs
• Super Heat: 90/86 PSIG
• Connection Size: 1/8 OD x 20.00 inches
• External Equalizer: .125 OD x 20.00 long
