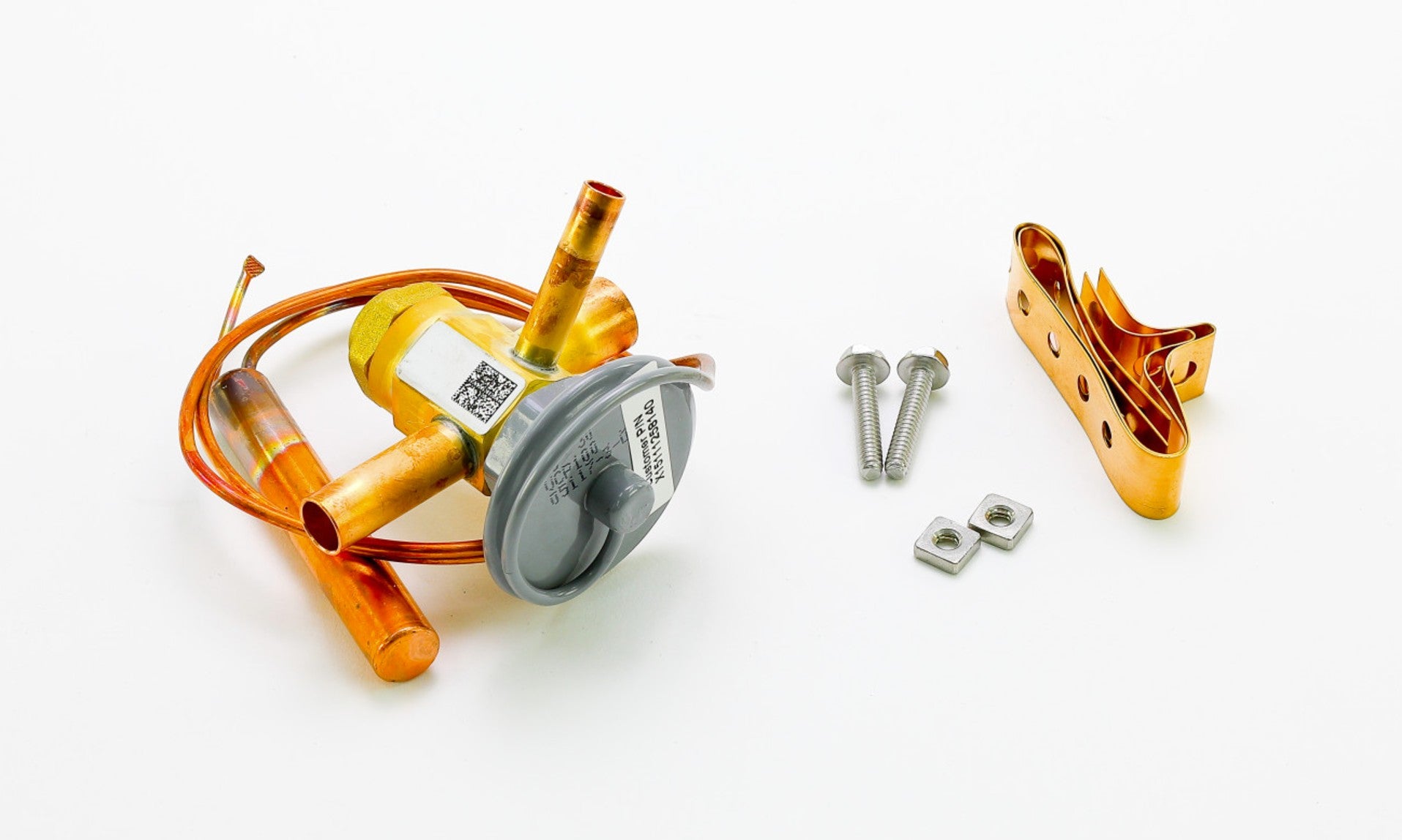

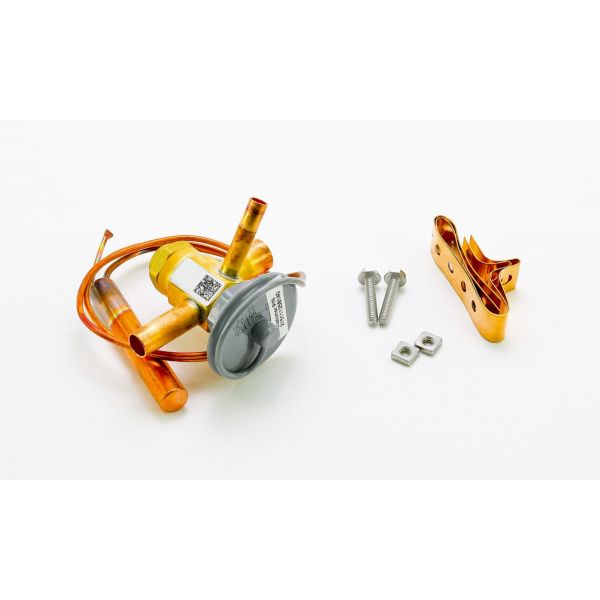

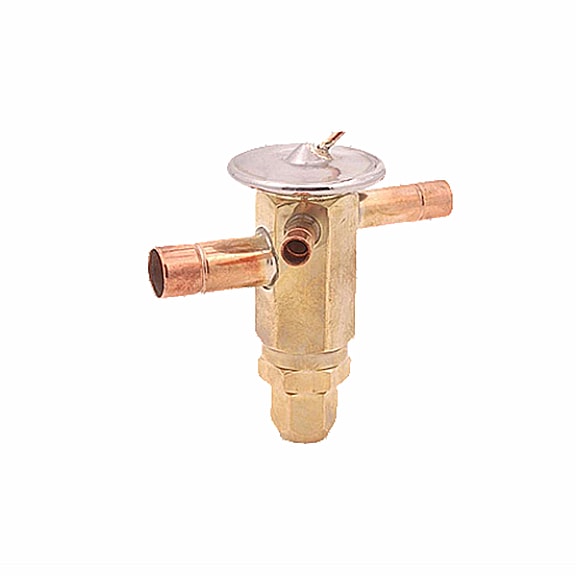

Trane VAL7629 Thermal Expansion Valve (TXV) - 2 Ton R22, 1/2 x 3/8

Product Description

The Trane VAL7629 is a thermal expansion valve designed for HVAC systems using R-22 refrigerant. This valve efficiently regulates refrigerant flow into the evaporator coil based on temperature, ensuring optimal system performance. Made from robust brass, it features sweat connections for easy installation.

The valve includes a thermal actuator with a thirty-inch capillary tube, suitable for systems with a two-ton capacity and a pressure setpoint of fifty-two over forty-eight PSI.

• Compatible with R-22 refrigerant
• Inlet size: one-half inch, outlet size: three-eighths inch
• Designed for two-ton cooling systems

Product Highlights

This valve is essential for accurate refrigerant flow control and energy efficiency in HVAC applications. It is a reliable choice for HVAC professionals.

Product Information

Standard Information

• Brand: Trane
• MPN: VAL7629

Technical Specifications

• Capacity: 2 Ton
• Refrigerant: R-22
• Inlet Size: 1/2 inch
• Outlet Size: 3/8 inch
• Connection Type: ODS
• Valve Type: Expansion Valve
• Actuator Type: Thermal
• Capillary Tube Size: 30 inches
• Material: Brass
• Flow Control: Non-bleed
• Pressure: 52/48 PSI Super Heat Setpoint
• Type: Sweat
• Size: 1/2 x 3/8 inch
• Tonnage: 2
• Length: 4.3 inches
