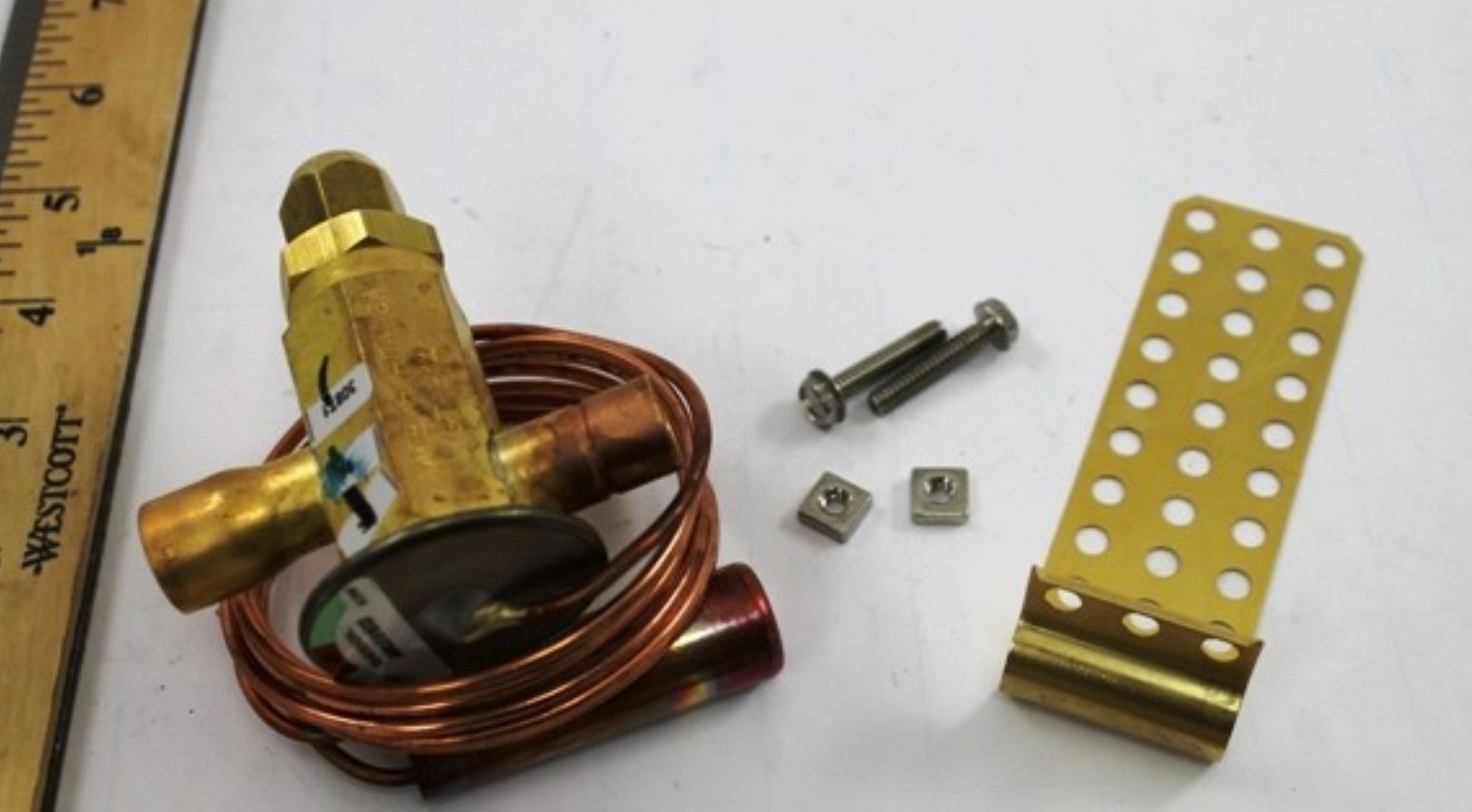

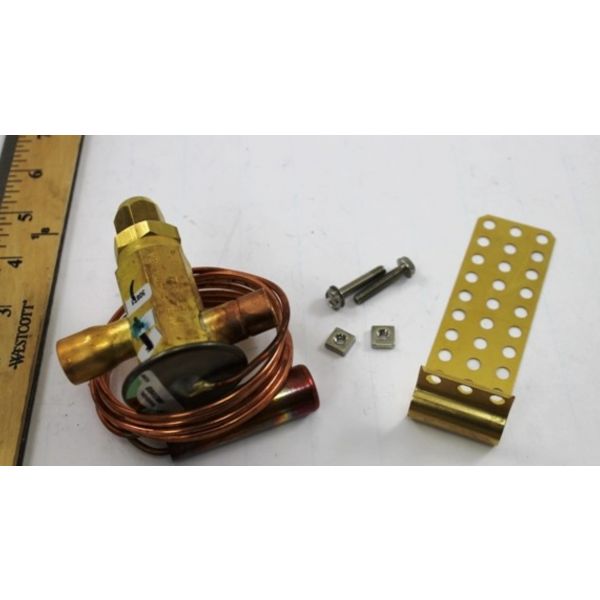

TRANE VAL2377 Thermal Expansion Valve

Product Description

The Trane VAL2377 is a thermal expansion valve designed for HVAC systems that use R-22 refrigerant. This valve controls the flow of refrigerant to ensure efficient cooling and prevent freezing of the evaporator coil. It lowers the pressure of high-pressure liquid refrigerant, converting some to vapor, which helps absorb heat and generate a cooling effect. The device includes a sensor bulb to monitor the temperature at the evaporator exit, ensuring precise operation of the valve.

• Designed specifically for R-22 refrigerant use
• Controls refrigerant flow for effective cooling
• Includes a sensor bulb for accurate temperature measurement

Product Highlights

The Trane VAL2377 Thermal Expansion Valve is essential for maintaining optimal HVAC system performance.

Product Information

Standard Information

• Brand: Trane
• MPN: VAL2377

Technical Specifications

• Refrigerant: R-22
• Capacity: 5 Ton
• Inlet Size: 1/2 inches
• Outlet Size: 5/8 inches
• Capillary Tube Size: 60 inches
• Connection Type: ODF
• Type: Sweat
• Body Material: Stainless Steel
• Configuration: Straight Through
• Pressure: 700 MWP PSI
• Flow Control: 15% Bleed
• Temperature: 300 °F
• Length: 4.9 inches
• Weight: 1.21 lbs
