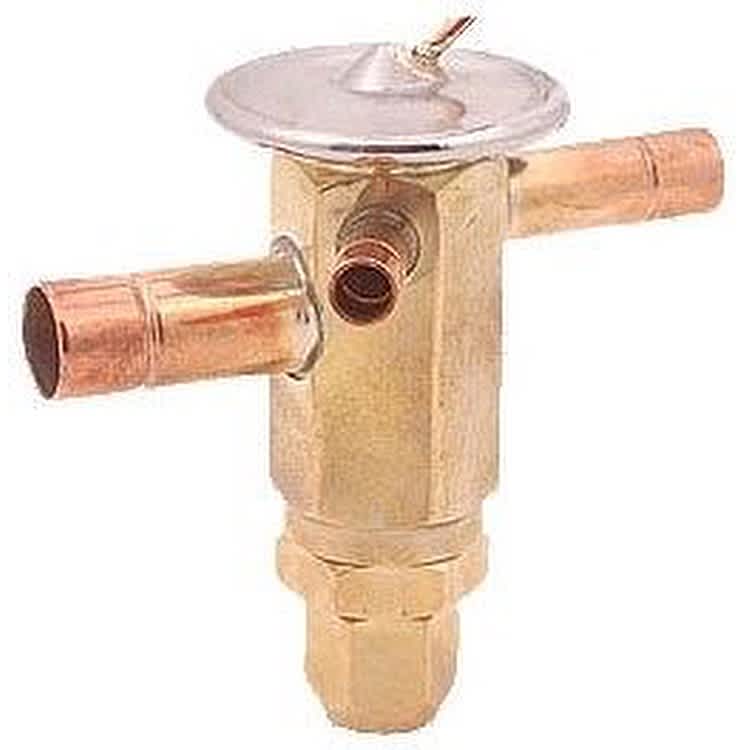

TRANE VAL08322 Thermal Expansion Valve R-22 Refrigerant

Product Description

The TRANE VAL08322 Thermal Expansion Valve is designed for use with R-22 refrigerant. It has a nominal capacity of 2 tons and features an external equalizer. This valve comes with a capillary length of thirty inches and is rated for pressures up to fifty-two, forty-eight, and seven hundred psi. Constructed from stainless steel, this valve offers durability and a longer service life.

• Capillary Length: 30 inches
• Pressure Rating: 52/48/700 psi
• Nominal Capacity: 2 tons

Product Highlights

This valve is suitable for use with TRANE air handlers, specifically models 2TXCB031AS3HCAA and 2TXAB031AS3HUAA. The stainless steel housing prevents corrosion, contributing to reliability in performance.

Product Information

Standard Information

• Refrigerant Type: R-22
• Equalizer Type: External

Technical Specifications

• Housing Material: Stainless Steel
• Additional Information: 1/8 in OD x 24 in L External Equalizer, Non-Bleed Port, Non-Adjustable Type
• Suitable For Use With: 2TXCB031AS3HCAA, 2TXAB031AS3HUAA Air Handlers
