Trane VAL07182 valve 3-way modulating 3-wire floating non-spring general temperature no options 24 VAC 50/60 Hz 1/2 inch TRNVAL7182

Product Description

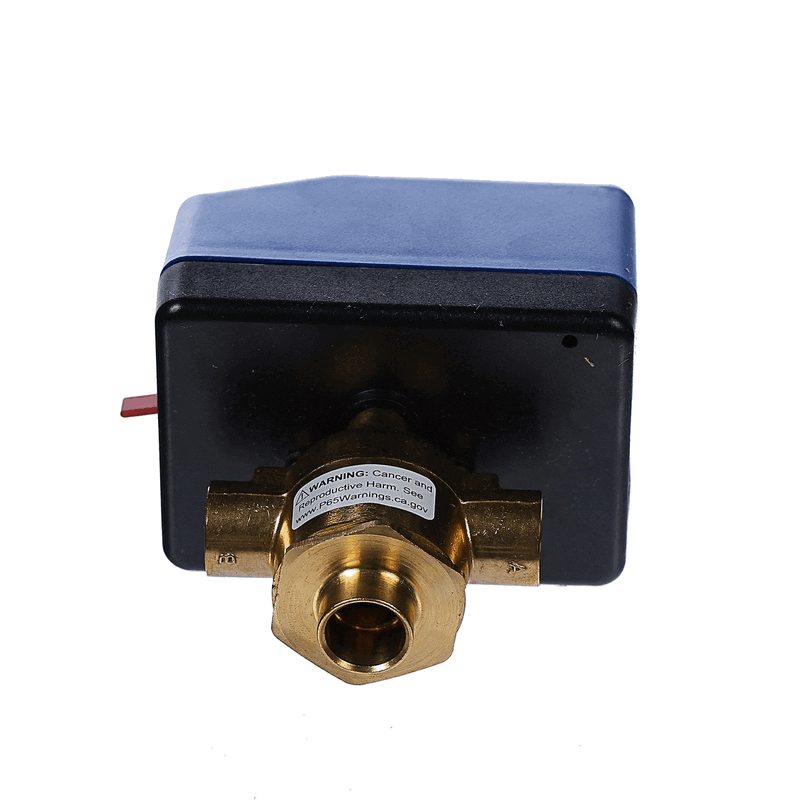

The TRANE VAL07182 is a 3-way modulating valve with 3-wire floating control, designed for general temperature applications. It features a non-spring return mechanism and regulates flow to maintain stable temperature control. This valve operates on 24 VAC at 50/60 Hz, has a 1.0 CV rating, and a 1/2 inch connection.

• 3-Way valve design with modulating control for precise flow regulation.
• Features 3-wire floating control and a non-spring return mechanism.
• Suitable for general temperature applications, operating on 24 VAC at 50/60 Hz.

Product Highlights

3-way modulating valve with 3-wire floating control for general temperature applications.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: VAL07182
• Country of Origin: United States

Technical Specifications

• Brand: Trane
• MPN: VAL07182
• Valve Type: 3-Way
• Control Type: Modulating
• Wiring: 3-Wire Floating
• Actuator Type: Non-Spring
• Temperature Application: General Temperature
• Options: No Options
• Previous Part Number: TRNVAL7182
• Connection Size: 1/2 inch
• Connection Type: Sweat
• Body Material: Forged Brass
• Media Type: Water/Steam
• Standards: UL
• Model: VM3312T13A00T
• CV Rating: 1.0
• Input Voltage: 24 VAC
• Frequency: 50/60 Hz
