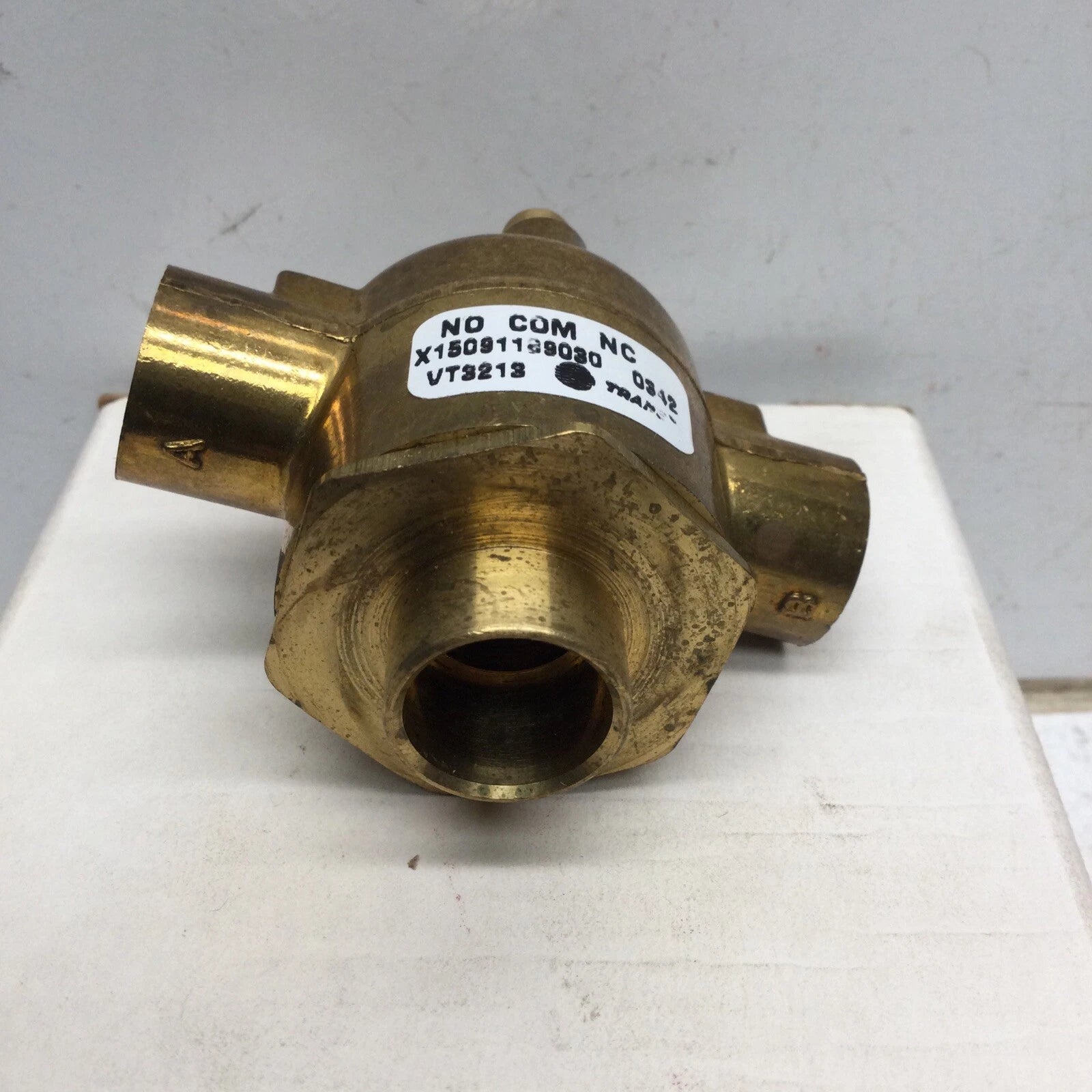

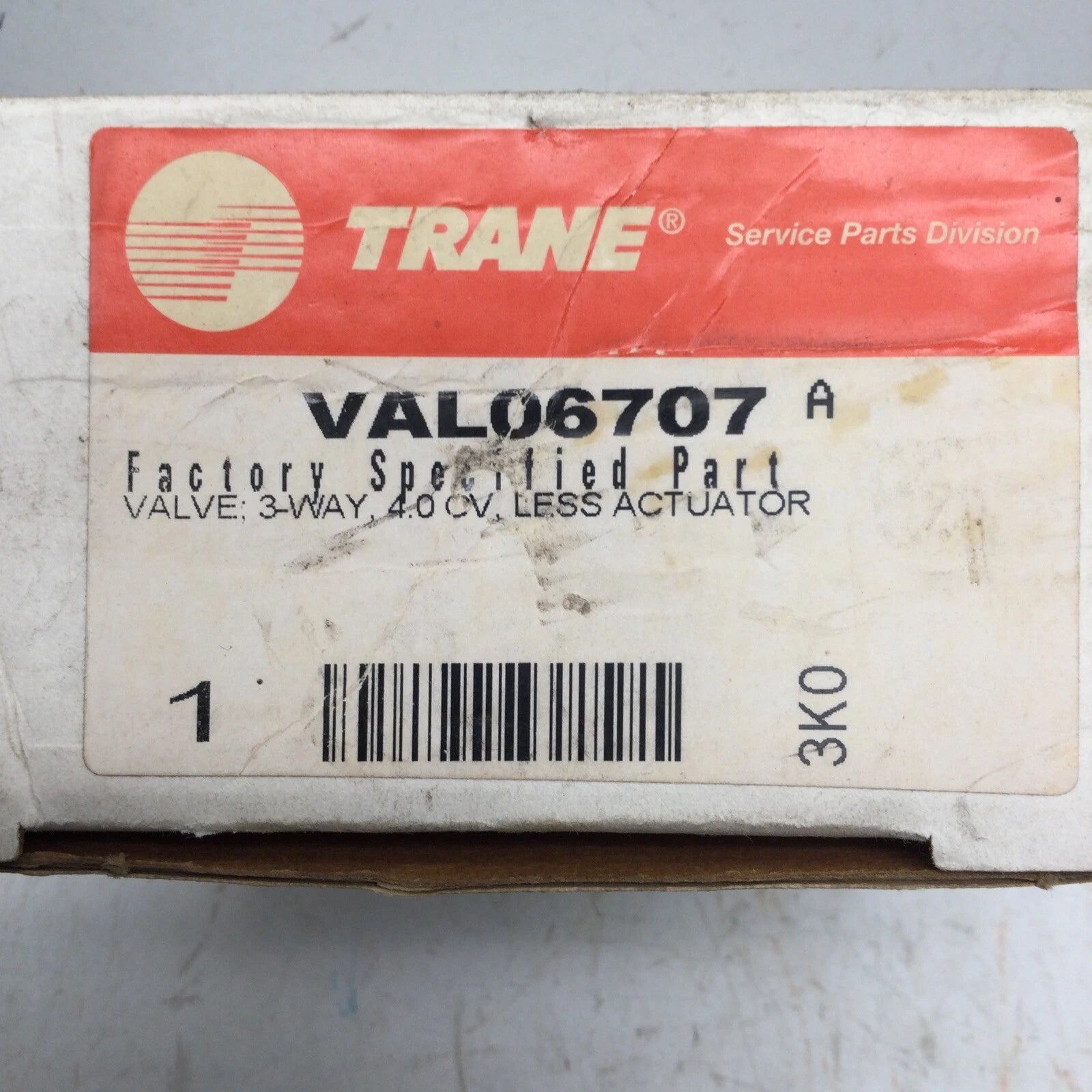

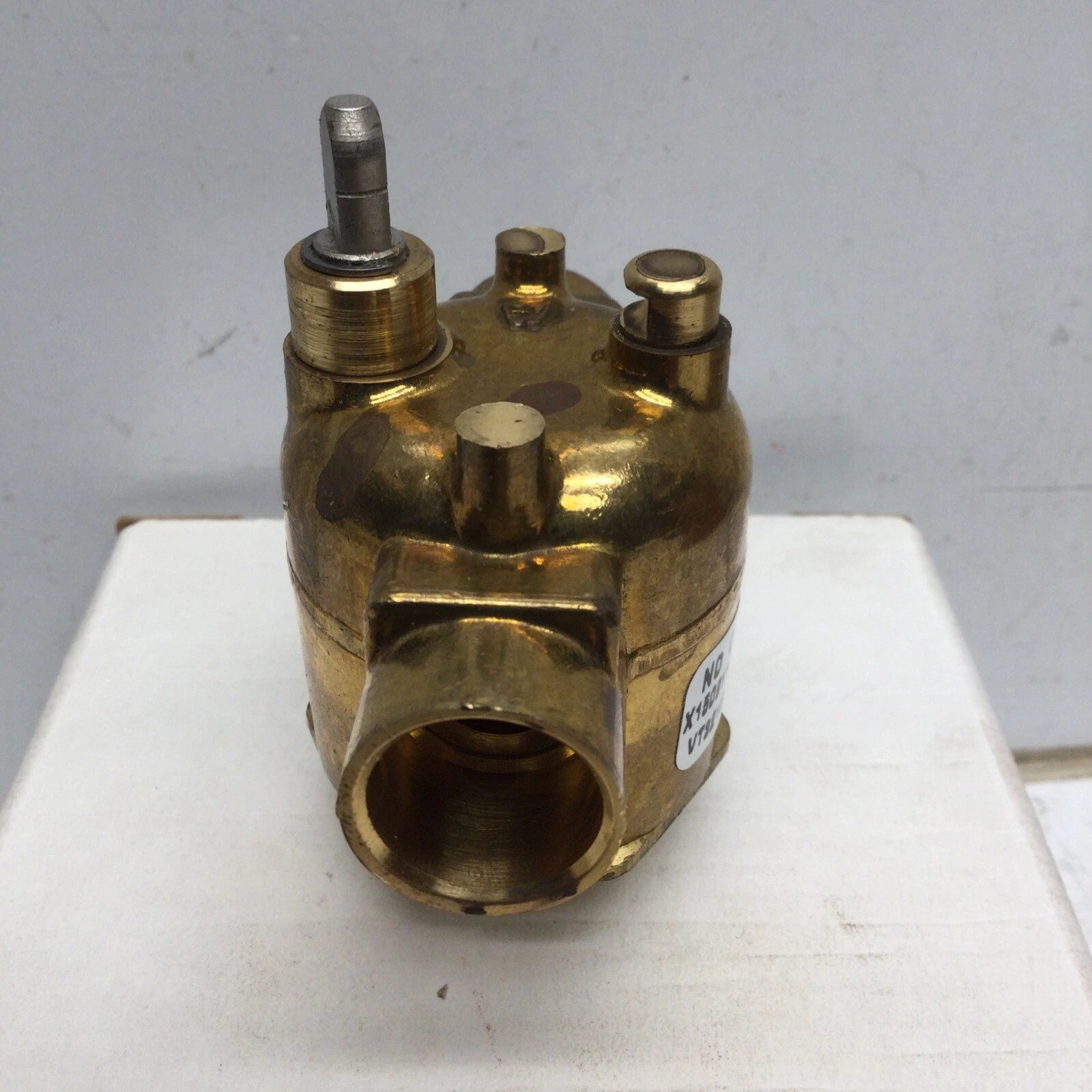

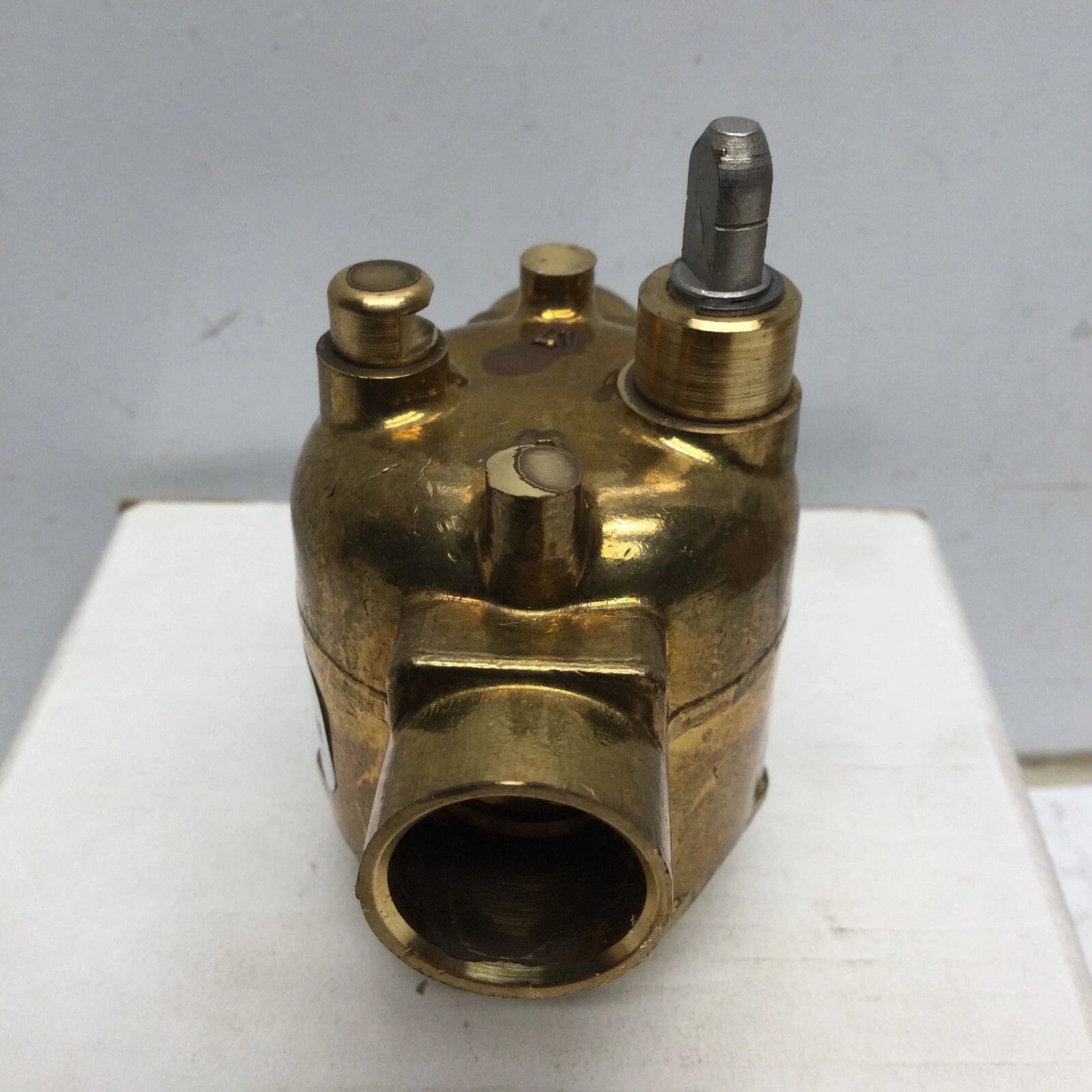

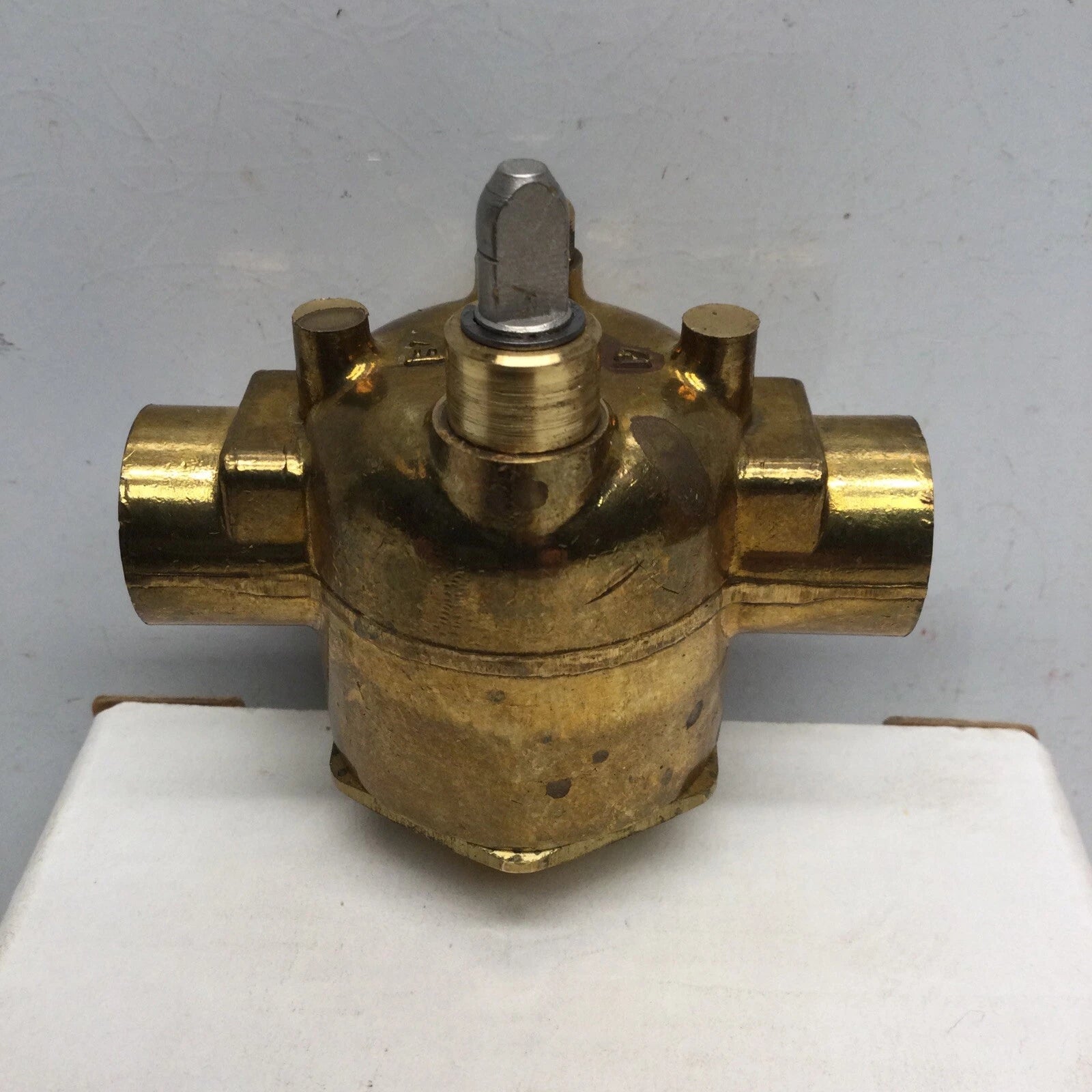

Trane VAL06707 3-Way Valve 4.0 Cv Less Actuator

Product Description

The Trane VAL06707 is a 3-way valve that provides effective flow control in HVAC systems. This valve is built with a flow capacity of four Cv, making it efficient for managing chilled and hot water systems. The robust construction features forged brass with a brass seat and a nickel-plated stem, ensuring durability and reliability in various applications. This valve operates without an actuator, simplifying installation and maintenance.

• 3-Way configuration for versatile flow control
• Flow capacity of 4.0 Cv suitable for different water types
• Constructed from forged brass for long-lasting performance

Product Highlights

This valve is suitable for both hot and chilled water applications, making it ideal for various HVAC settings.

Product Information

Standard Information

• Brand: Trane
• MPN: VAL06707

Technical Specifications

• Configuration: 3-Way
• Connection Type: Sweat
• Flow Capacity (Cv): 4
• Pressure Rating: 300 PSI
• Size: 1/2 in.
• Temperature Rating: 32 to 200 Deg. F
• Stem Material: Nickel Plated
• Type: Zone
