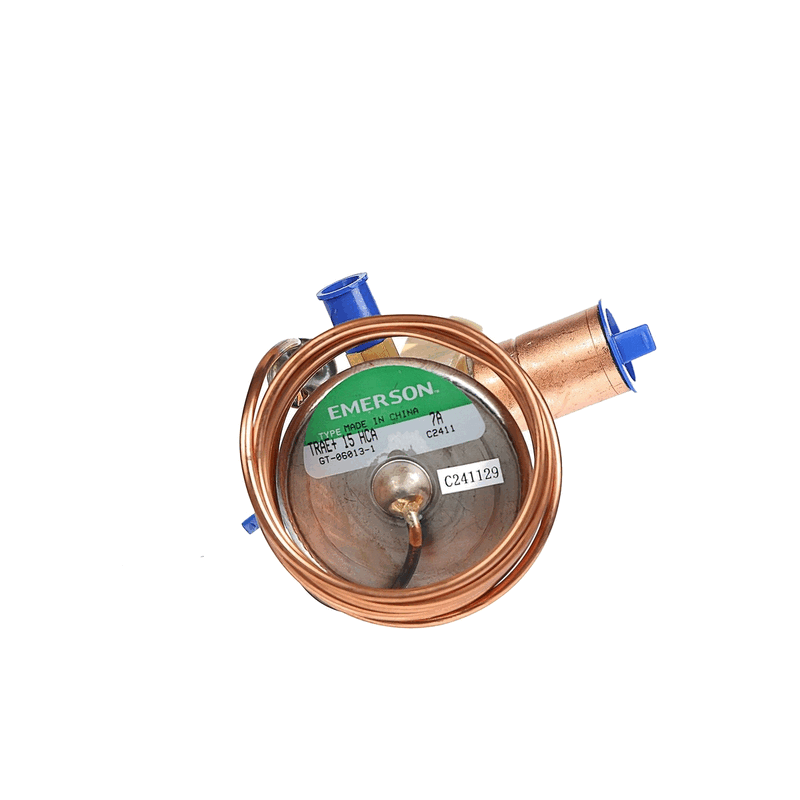

Trane VAL06607 Expansion Valve, TRAE+15 HCA SAE EE 15 Ton 5FT

Product Description

The TRANE VAL06607 Expansion Valve, model TRAE+15 HCA SAE EE, regulates refrigerant flow for stable cooling performance and efficient system operation. It features a 5-foot capillary tube and 5/8 inch by 7/8 inch ODF solder connections. Designed for a maximum service working pressure of 450 PSIG and a maximum service working temperature of 300 degrees Fahrenheit, this valve is compatible with R22 refrigerant, ensuring precise control in HVAC systems.

• Regulates refrigerant flow for stable cooling performance.
• Ensures efficient operation across the system.
• Features real OEM construction for precise fit and leak-free connections.

Product Highlights

Optimized for R22 refrigerant, this expansion valve provides stable cooling performance and efficient operation with a 450 PSIG SWP and 300°F SWT.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: VAL06607

Technical Specifications

• Type: Expansion Valve
• Model: TRAE+15 HCA SAE EE
• Capillary Tube Length: 5 FT
• Connection Type: ODF Solder
• Connection Size: 5/8 inch x 7/8 inch
• Max Service Working Pressure: 450 PSIG
• Max Service Working Temperature: 300 DEG F
• Refrigerant Compatibility: R22
• Configuration: Straight Through
• Nominal Capacity: 15ton
• Features: External Equalized
