Trane VAL03630 Valve 2.5 ton R22 3/8in x 1/2 out 1/4 ODF ext

Product Description

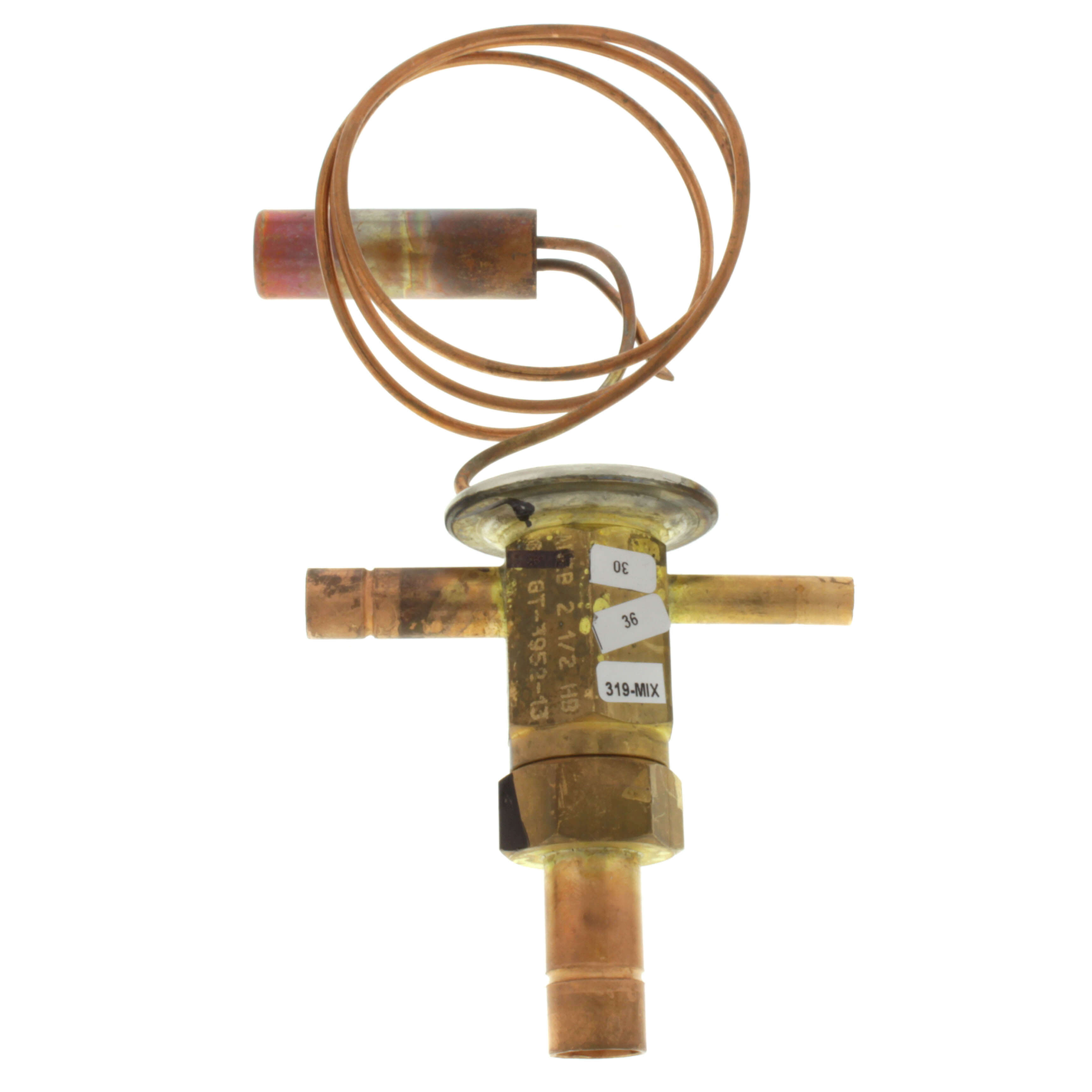

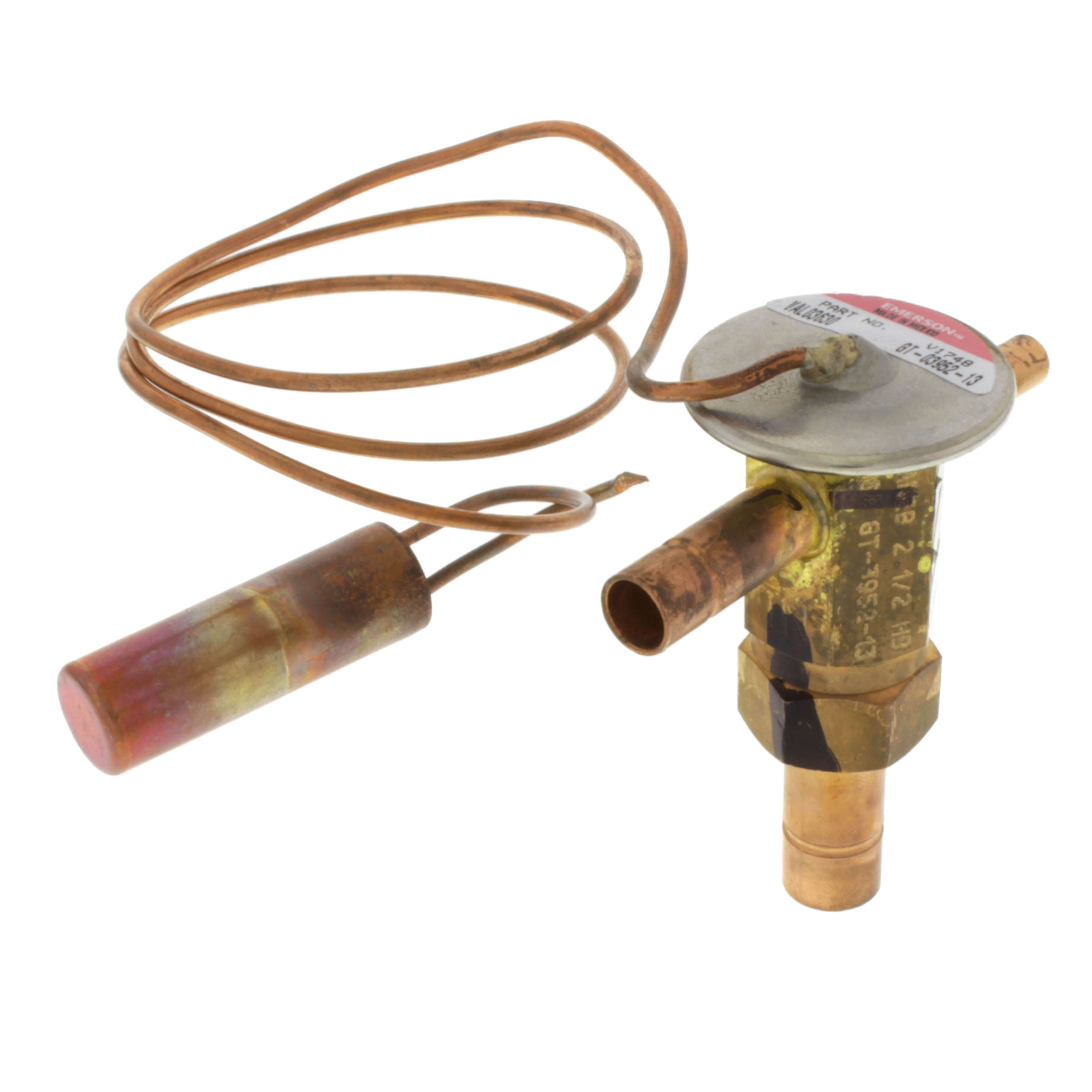

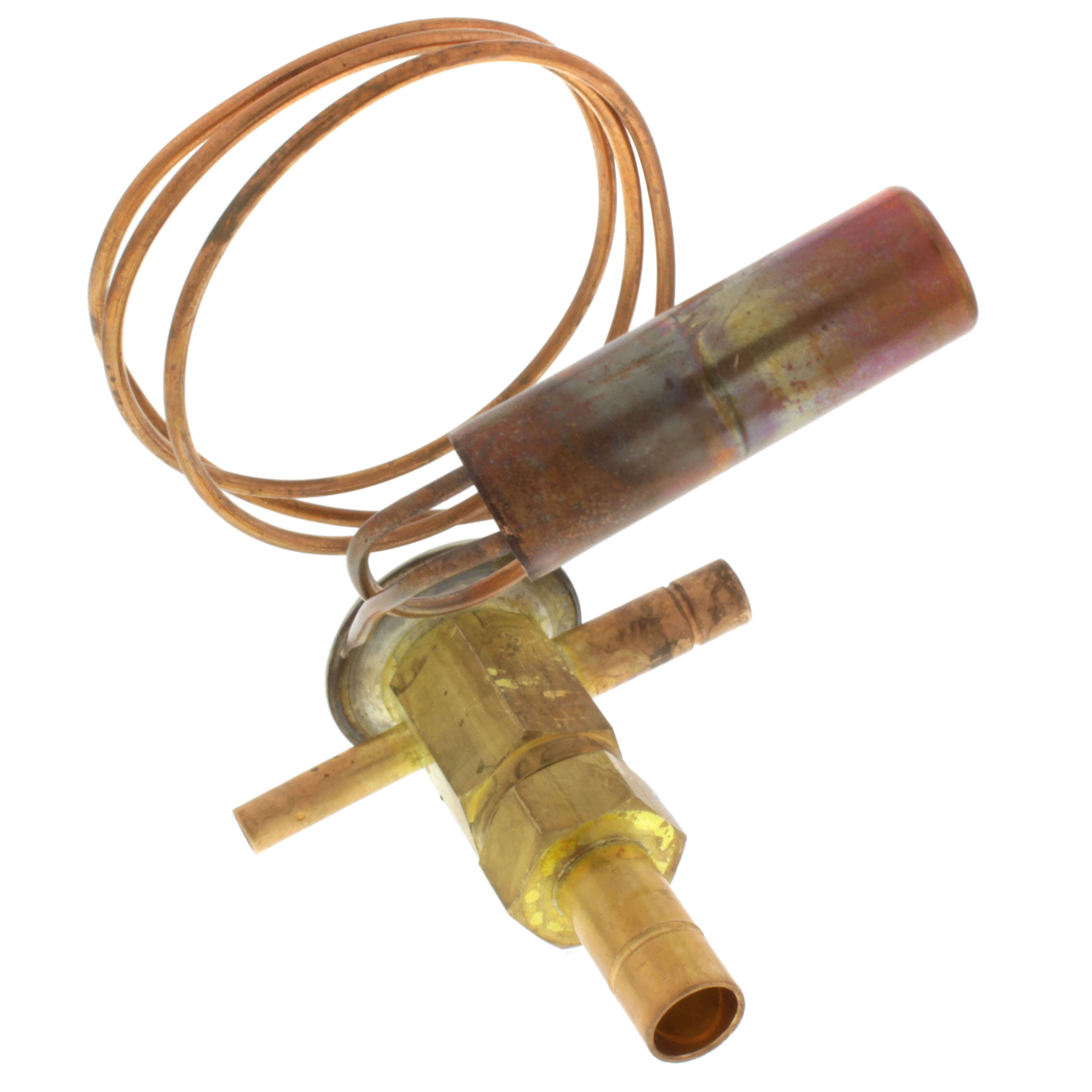

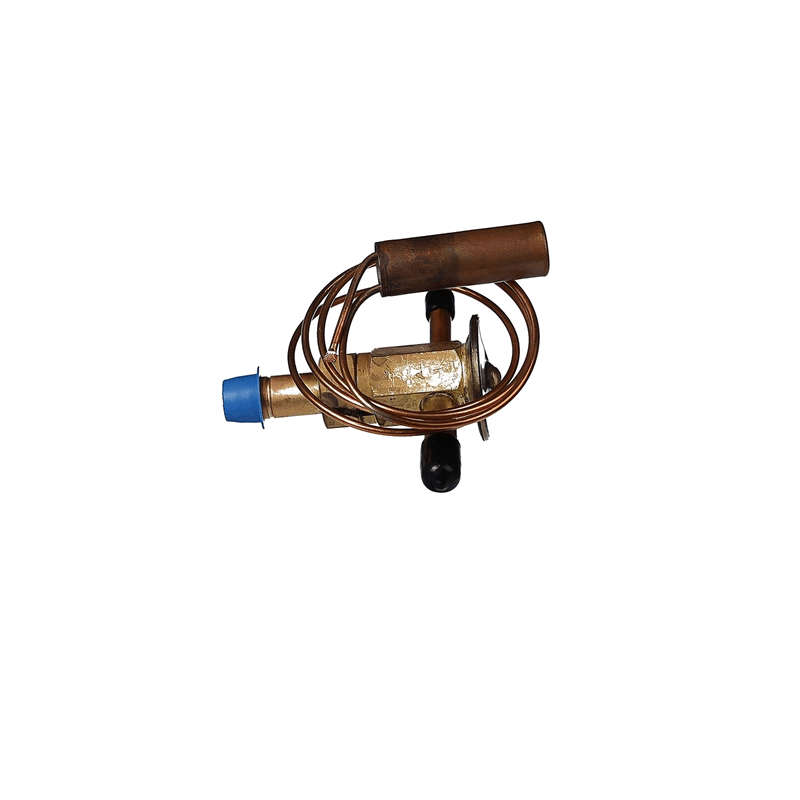

The TRANE VAL03630 is a Thermostatic Expansion Valve designed for HVAC systems. This 2.5 ton capacity valve is compatible with R22 refrigerant, featuring a 3/8 inch inlet and a 1/2 inch outlet with a 1/4 ODF external connection. It regulates refrigerant flow to maintain steady cooling performance and system efficiency, ensuring optimal working temperature in air conditioning units.

• 2.5 Ton capacity for R22 refrigerant systems.
• Features 3/8 inch inlet, 1/2 inch outlet, and 1/4 ODF external connection.
• Includes a 30 inch capillary tube for precise control.

Product Highlights

This OEM Thermostatic Expansion Valve regulates refrigerant flow for steady cooling performance and dependable system efficiency, ensuring optimal working temperature and extended service life.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: VAL03630

Technical Specifications

• MPN: VAL03630
• Brand: TRANE
• Capacity: 2.5 Ton
• Refrigerant Type: R-22
• Connection Size: 3/8 inch x 1/2 inch outlet x 1/4 ODF external
• Capillary Tube Length: 30 inch
• Compatible With: 6C0060A300A3, 6H0060A100A4, 6H2060B100A0, 6H4060B100A0, AWA060C300A1, AWA072C400A1, TWA050CD00B0
• Product Type: Expansion Valve
• Configuration: Angle
