Trane VAL02370 Valve, Expn. 2 ton 3/8 inches in 1/2 inches out 1/4 inches ext equ

Product Description

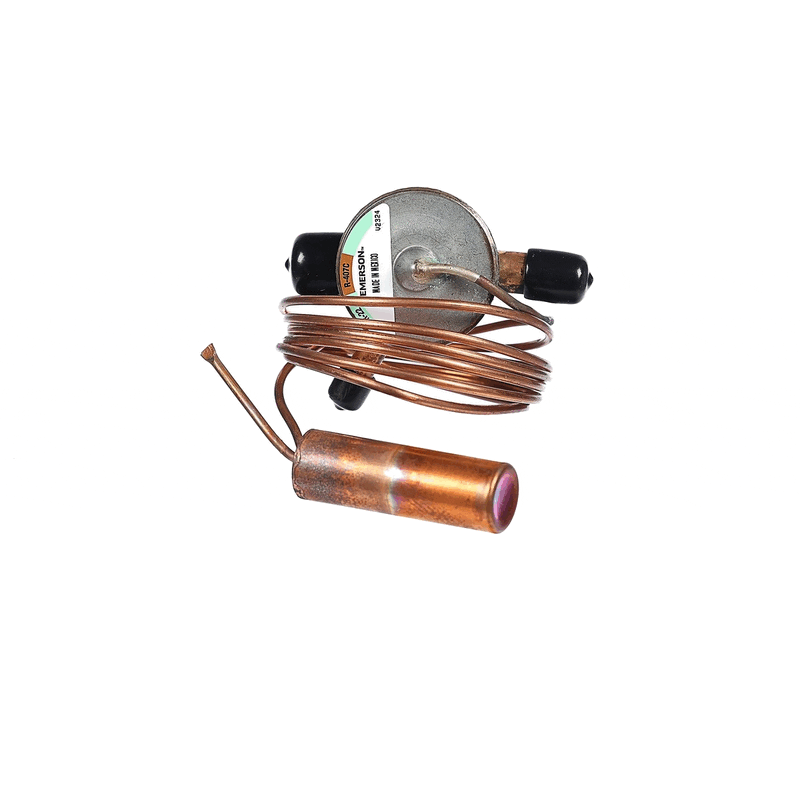

The Trane VAL02370 is a thermostatic expansion valve designed to regulate refrigerant flow for steady cooling performance. This OEM component maintains balanced operation across the system, delivering precise metering and tight sealing. It is compatible with various HVAC equipment types, including Packaged Unit/RTU, Heat Pump, Air Handler, and Central Air Conditioner systems, and uses R-22 refrigerant. It features a 2 ton nominal capacity and a straight-through configuration.

• Regulates refrigerant flow for steady cooling performance.
• Maintains balanced operation across the system.
• Delivers precise metering and tight sealing.

Product Highlights

Reduces wear and erratic cycles, preventing breakdowns.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: VAL02370

Technical Specifications

• Brand: Trane
• MPN: VAL02370
• Manufacturer: Trane
• Valve Type: Thermostatic Expansion Valve
• Refrigerant: R-22
• Configuration: Straight Through
• Nominal Capacity: 2 ton
• Inlet/Outlet Size: 3/8" In, 1/2" Out, 1/4" Ext Equ
• Pressure Rating: 450#
• Previous Part Number: TRNVAL2370
• Compatible Equipment Types: Packaged Unit/RTU, Heat Pump, Air Handler, Central Air Conditioner
• Compatible With Models: BWV030A100A0, TCY024G100AB, TCY024G100AC, TWE060B100BA, TWE060B100EA, TWE060B100EL, TWE060B300EA, TWE060B300EL, TWE060B400AB, TWE060B400BA, TWE060B400EA, TWE060B400EL, WCX030A100BB
