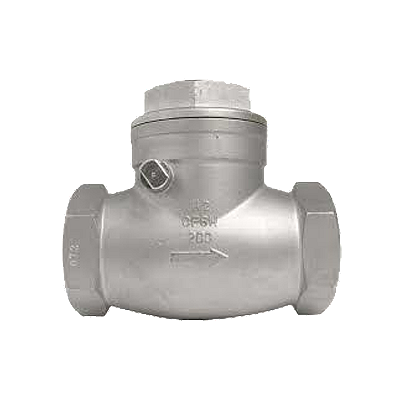

Trane VAL00060 Valve; Oil Check

Product Description

The TRANE VAL00060 is an oil check valve, an automatic flow control device designed to permit fluid flow in one direction only. Constructed with a steel body, this valve can be mounted horizontally or vertically. It features a ball flow control device and threaded internal pipe connections, suitable for various industrial applications requiring precise unidirectional flow management.

• Permits flow in one direction only
• Does not have a stem (unless equipped with lever and weight)
• No pressure adjustment

Product Highlights

Automatic steel body check valve for unidirectional flow control.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: VAL00060

Technical Specifications

• MPN: VAL00060
• Brand: TRANE
• Material: Steel Body
• Style Designator: A6 Straight Thru
• Flow Control Device: Ball
• Valve Operation Method: Automatic
• Connection Type: Threaded Internal Pipe 1st End, Unthreaded Internal Tube 2nd End
• Connection Style: B9 Plain 1st End, B28 Grooved Inside 2nd End
• Nominal Outside Diameter Tube Accommodated: 0.125 Inches (2nd End)
• Thread Series Designator: NPT (1st End)
• Nominal Thread Size: 0.125 Inches (1st End)
• Thread Direction: Right-Hand (1st End)
• Mounting Position: Horizontal Or Vertical
• Renewable Seat Ring Type: Retaining Screw
• Special Features: Steel, 0.375 In. ID Retaining Ring Provided
• Nominal Width Across Flats: 0.562 Inches
