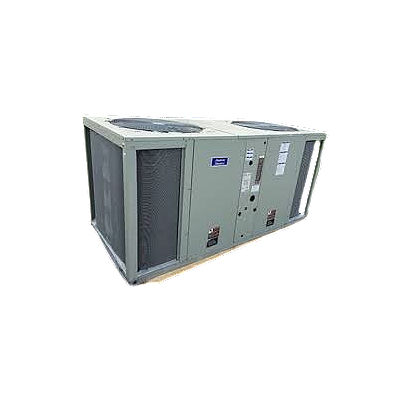

Trane TWA07244DAAE02P Odyssey 6 Ton Two Stage R-410A Commercial Heat Pump Condenser

TRANE
Brand: TRANE
SKU: TWA07244DAAE02P
Availability: In Stock

Ships via freight in 1-3 business days

Final Sale / No Returns
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$4,488.03
$4,488.03

This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.

LTL Delivery

This product weighs 356 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The TRANE TWA07244DAAE02P Odyssey�� is a 6 Ton two-stage R-410A commercial heat pump condenser designed for HVAC applications. It features a broad distribution network, providing easy access to equipment for emergency replacements or new construction projects. Condensing units can be installed on the ground or rooftop.

  • Wide network availability
  • Flexible applications
  • Easy to install
  • Built-in reliability
  • Easy to service

Product Highlights

This Trane condenser offers flexible applications with easy installation and reliable operation. Its design ensures minimum service times and costs.

Product Information

Standard Information

  • Brand: TRANE
  • Manufacturer Part Number: TWA07244DAAE02P

Technical Specifications

  • A2L Compatible: No
  • BTU: 72000
  • BTU Cooling Rating: 82000 Btu/h
  • BTU Heat Rating: 64000 Btu/h
  • CFM: 6530 ft3/min
  • Coil Type: Lanced
  • Collection: Odyssey��
  • Compressor Stages: Two Stage
  • Compressor Type: Scroll
  • Configuration: Horizontal, Vertical
  • Decibel Rating (dB): 84 dB
  • Depth: 52 in
  • Height: 39-1/16 in
  • Horsepower: 1/2 hp
  • IEER: 12.2
  • Liquid Line (OD): 1/2 in
  • Max Fuse Size: 15
  • Phase: Three Phase
  • Refrigerant: R-410A
  • Suction Line (OD): 7/8 in
  • Tonnage: 6 Ton
  • Volts: 460V
  • Width: 40 in
  • RPM: 1100
