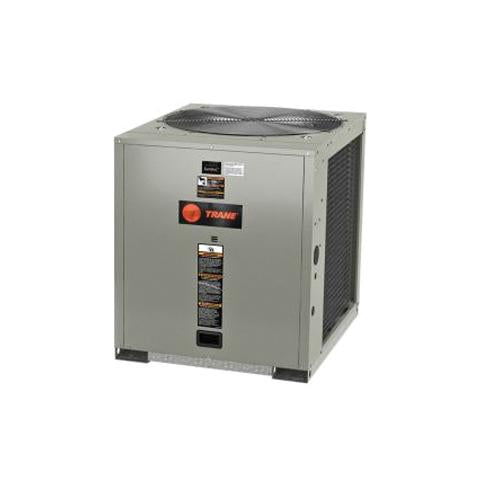

Trane TTA18043DABE001 TTA18043D Air Conditioner 15 ton

Product Description

The TRANE TTA18043DABE001 Odyssey™ split systems offer a wide range of options, allowing you to easily match unit tonnage with the right load requirements. This split-system air conditioner with Symbio® controls has a 15 ton nominal capacity and a cooling capacity of 192000 Btu/hr. It operates at 208-230 V.

• 15 ton Nominal Capacity
• Cooling Capacity: 192000 Btu/hr
• Voltage Rating: 208-230 V

Product Highlights

The TRANE TTA18043DABE001 is a versatile and reliable split-system air conditioner with smart building capabilities.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TTA18043DABE001

Technical Specifications

• Additional Information: 12.4 IEER Rating, 25 ft L Maximum Piping
• Amperage Rating: 74 A
• CFM Rating: 15500 cfm
• Compressor Type: Scroll
• Connection Type: Wired
• Cooling Capacity: 192000 Btu/hr
• Drive Type: Direct
• EER Rating: 13
• Face Area: 44.3 sq-ft
• Finish: Galvanized/Zinc-Plated
• Fins per Inch: 23 FPI
• Frequency Rating: 60 Hz
• Fuse Rating: 100 A
• HP Rating: 1 hp
• Liquid Line Size: 1/2 in
• Material: Steel
• Model: TTA18043D
• Motor Type: Propeller
• Nominal Capacity: 15 ton
• Number of Stages: 2
• Phase: 3 ph
• Refrigerant Type: R-140A
• Rotational Speed: 1125 rpm
• Suction Line Size: 1-3/8 in
• Temperature Rating: 50 to 125 deg F
• Voltage Rating: 208-230 V
• Wattage: 15.4 kW
