Trane TTA18043DAAE02P Odyssey 15 Ton 1 hp Single Stage R-410A Commercial Air Conditioner Condenser

Product Description

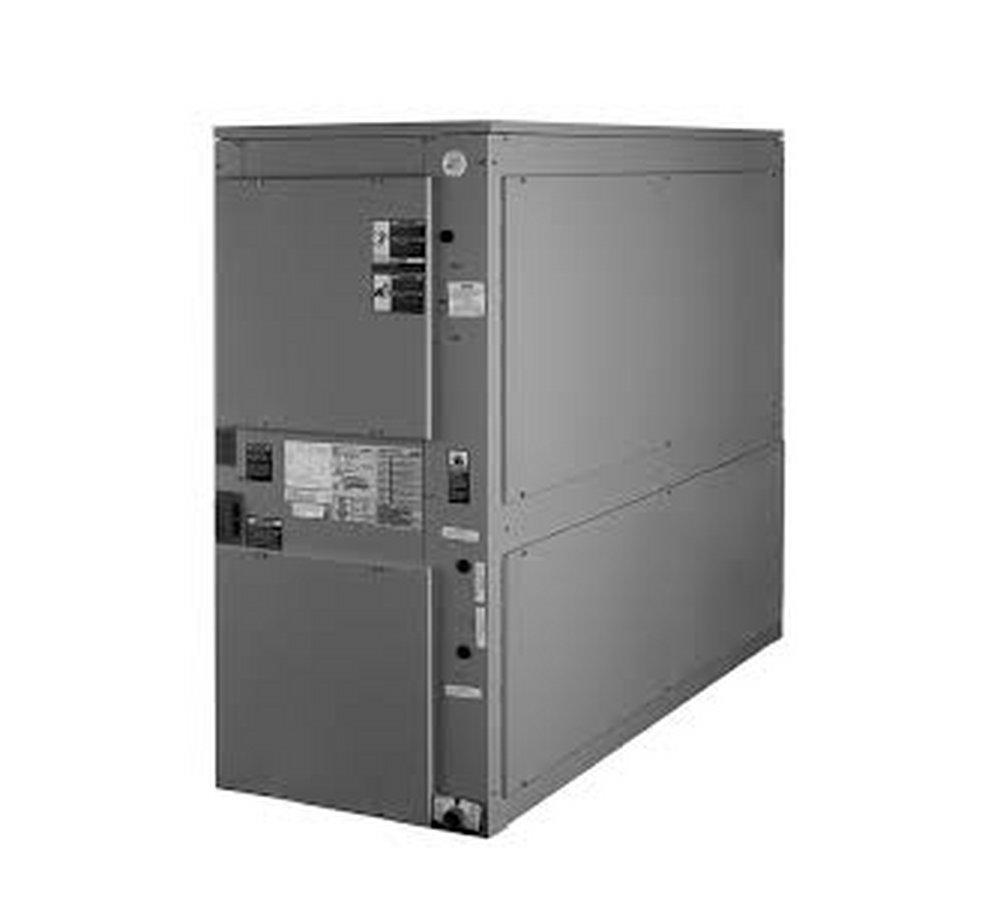

The TRANE TTA18043DAAE02P Odyssey™ is a 15-ton commercial air conditioner condenser with a 1 hp single-stage compressor and R-410A refrigerant. It features a 2-speed VFD, improving comfort through better airflow distribution. The unit includes belt drive motors, convertible air handlers, and crankcase heaters for improved compressor reliability. Single-side service and single-point power are standard.

• 2-speed VFD reduces supply fan motor speed during part load cooling.
• Belt Drive Motors meet a wide range of airflow needs.
• Crankcase Heaters provide improved compressor reliability.

Product Highlights

This Trane Odyssey condenser offers efficient and reliable cooling for commercial applications, with features designed for enhanced performance and ease of service.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TTA18043DAAE02P

Technical Specifications

• A2L Compatible: No
• BTU: 180000
• BTU Cooling Rating: 180000 Btu/h
• Coil Type: Micro-channel
• Collection: Odyssey
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Configuration: Horizontal, Vertical
• ETL Listed: No
• Energy Star Compliant: No
• Horsepower: 1 hp
• IEER: 12.4
• Liquid Line (OD): 1/2
• MBH: 180
• Max CFM: 15500
• Max Fuse Size: 90
• Phase: Three Phase
• Power Source: Electric
• Refrigerant: R-410A
• Refrigeration Control Type: TXV
• Suction Line (OD): 1-5/8
• Tonnage: 15 Ton
• UL Listed: No
• Input Voltage: 230V
