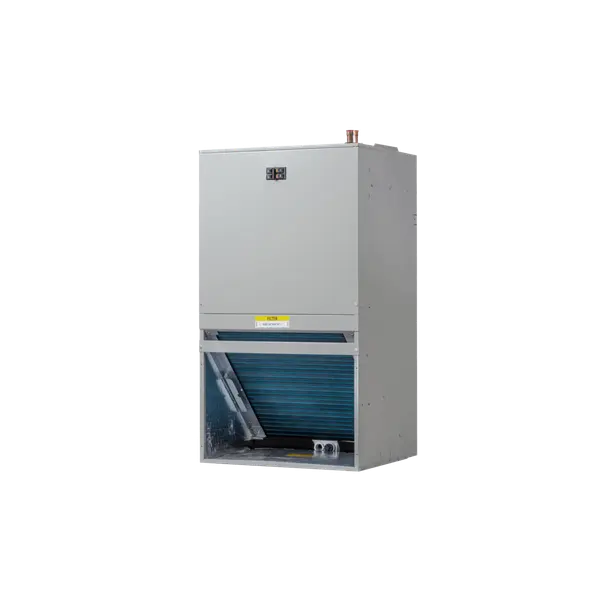

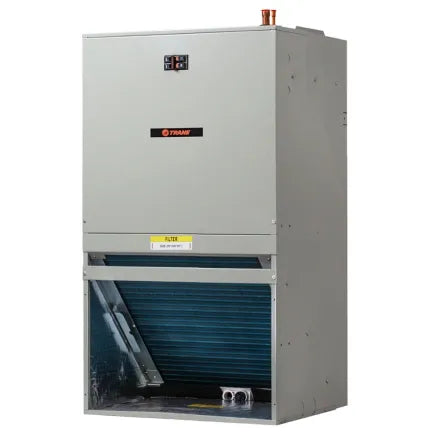

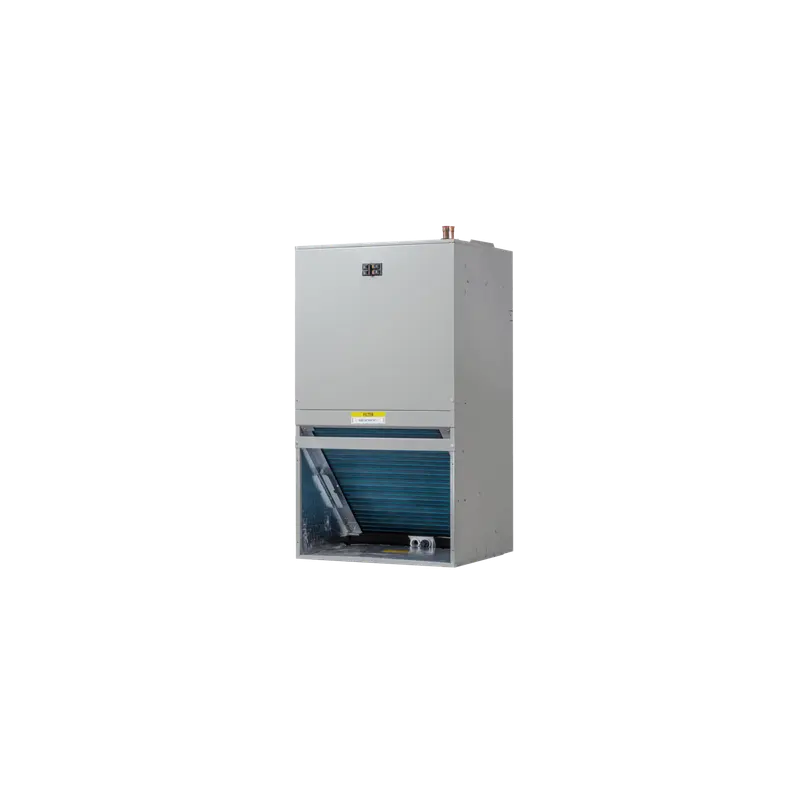

Trane TMM4B0B30S21SA Air Handler 2.5 Ton

Product Description

The RunTru by Trane TMM4B0B30S21SA is a 2.5 ton wall-mount air handler with an efficient multi-speed direct drive blower motor. It provides stable temperatures and enhances comfort. Designed for wall or frame-mount installations with included hanging brackets. Compatible with AC-only and heat pump condensers. Features a sturdy, fully insulated cabinet and is approved for mobile home installation.

• 2.5 ton wall-mount air handler
• Proudly Made in the USA: High-quality HVAC equipment crafted with precision and reliability
• Multi-speed direct drive blower motor

Product Highlights

The Trane TMM4B0B30S21SA air handler ensures quality and comfort with its versatile installation options and durable design.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TMM4B0B30S21SA
• Country of Origin: USA

Technical Specifications

• SKU: TMM4B0B30S21SA
• Depth: 19"
• Width: 22"
• Height: 40"
• Motor RPM: 1075
• Electrical: 208/230v 1 Phase 60Hz
• Horsepower: 1/3 HP
• Liquid Line: 3/8"
• Refrigerant: R410A
• Blower Motor: Multi Speed PSC Motor
• Brand/Manufacturer: Trane
• Suction Line: 3/4"
• Max Breaker Size: 15 Amps
• Min. Breaker Size: 1.6 Amps
• Tonnage: 2.5 Ton
• Product Height (in): 39.5
• Configuration: Floor Mounted
• Air Flow Direction: Upflow
• Cooling Capacity: 2.5 Ton
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 10 kW
• Line Set Connection Type: Sweat
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: Less than 5,000 BTU
• Series: TMM
• Voltage: 240
