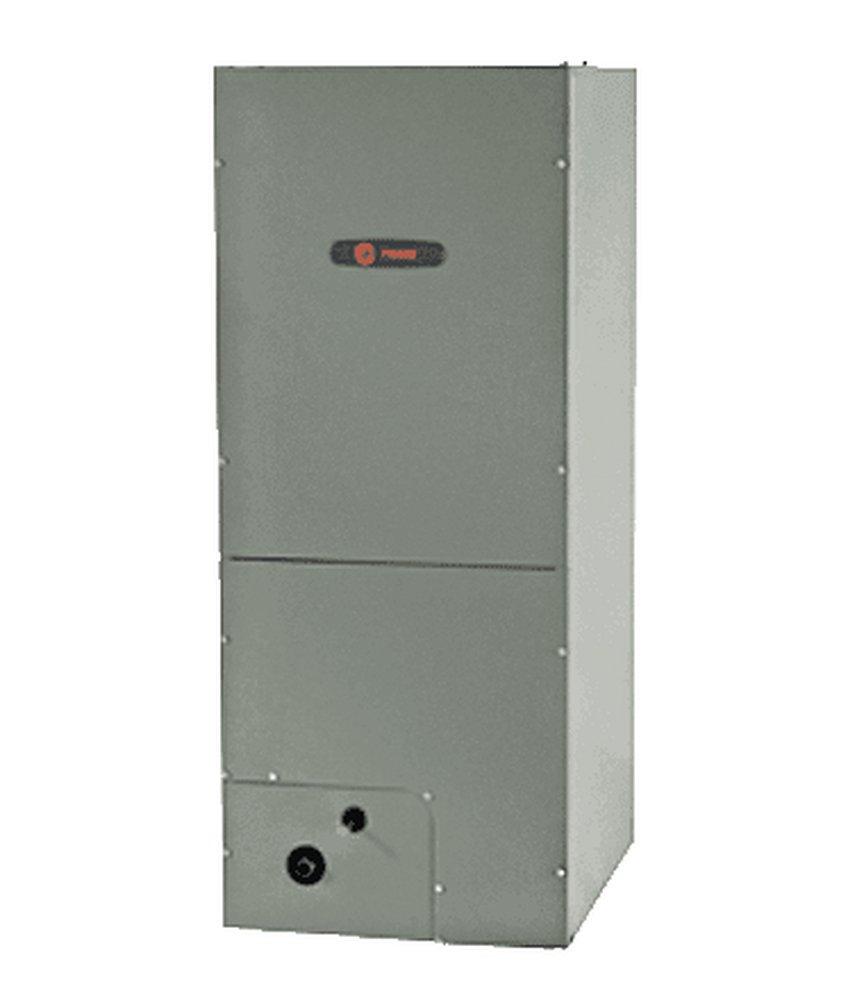

Trane TEM6A0B24H21SC M Series Air Handler 2 Ton

Product Description

The TRANE TEM6A0B24H21SC M Series air handler offers an ideal blend of affordability and compatibility with air conditioners and heat pumps. It provides quiet, consistent airflow and is designed for long-term performance with durable components, including all-aluminum coils, corrosion-resistant cabinet finishes, and polymer drain pans. This air handler is a four-way convertible, perfectly fit for different installation scenarios.

• Variable speed blower motor
• Comfort-R humidity control
• No-rust polymer drain pan

Product Highlights

Durable all-aluminum coils are more resistant to rust and corrosion than standard copper coils. With a variable speed ECM motor, experience a more quiet and cooler home with even temperatures from room to room.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TEM6A0B24H21SC

Technical Specifications

• Additional Information: 24 VAC Standard System Control
• BTU Rating: 24,000 Btu/hr
• CFM Rating: 800 cfm
• Finish: Painted
• Frequency Rating: 60 Hz
• Material: Metal
• Model Number: TEM6A
• Model: TEM6
• Motor Type: ECM
• Nominal Capacity: 2.0 Ton
• Number of Stages: Single
• Phase: 1 ph
• Refrigerant Control: TXV
• Refrigerant Type: R-410A
• Rotational Speed: Variable rpm
• Series: Silver Series
• Voltage Rating: 208/230 V
• A2L Compatible: No
• AMP: 2.5
• BTU: 24000
• Blower Type: Variable Speed
• Coil Type: Aluminum Fin
• Collection: TEM6 M Series
• Configuration: Convertible, Downflow, Horizontal Left, Horizontal Right, Multi-Position, Upflow, Variable
• Depth: 21-1/8
• Height: 46-3/4
• Liquid Line (OD): 3/8
• MBH: 24
• Power Source: Electric
• Refrigerant: R-410A
• Refrigeration Control Type: TXV
• Stages: Variable
• Suction Line (OD): 3/8
• Tonnage: 1.5 - 2 Ton
• UL Listed: Yes
• Volts: 208/230V
• Weight: 117
• Width: 18-1/2
