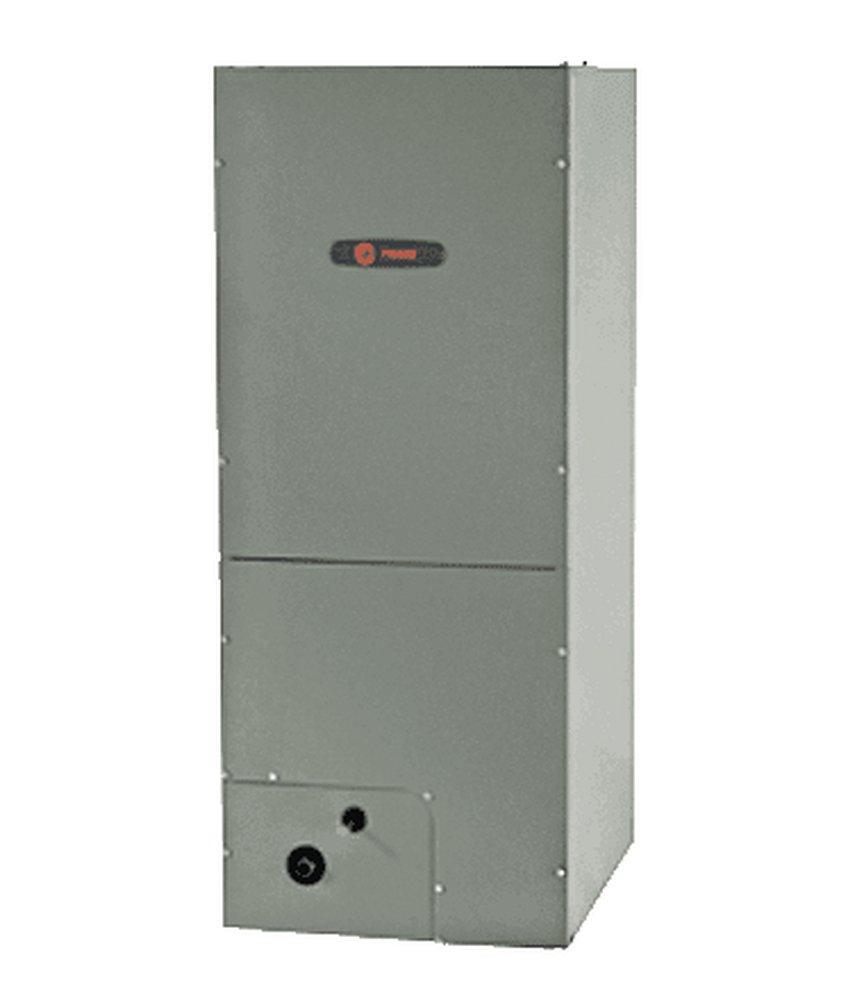

Trane TEM4A0C48S41SC M Series Air Handler 4 Ton

Product Description

The Trane TEM4A0C48S41SC M Series 4 Ton Convertible Air Handler features a variable speed blower motor and Comfort-R humidity control. Designed with a no-rust polymer drain pan, optional electric heat, and an all-aluminum coil. The galvanized steel cabinet and 4-way convertible line enhance its versatility. Ideal for HVAC applications.

• Variable speed blower motor
• Comfort-R humidity control
• No-rust polymer drain pan

Product Highlights

High-efficiency air handling unit designed for optimal climate control with advanced features and robust construction.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TEM4A0C48S41SC

Technical Specifications

• MODEL: TEM4A0C48S41SC
• Rated Volts /PH/HZ: 208-230/1/60
• INDOOR COIL Type: Plate Fin
• Rows F.P.I.: 3-14
• Face Area (sq. ft.): 5.50
• Tube Size (in.): 3/8
• Refrigerant Control: TXV
• Drain Conn. Size (in.): 3/4 NPT
• INDOOR FAN Type: Centrifugal
• Diameter-Width (In.): 11X8
• No. Used: 1
• Drive - No. Speeds: Direct - 3
• No. Motors H.P.: 1-3/4
• Motor Speed R.P.M.: 1050
• Volts/Ph/Hz: 208-230/1/60
• F.L. Amps: 6.0
• Filter Furnished?: No
• REFRIGERANT: R-410A
• Ref. Line Connections: Brazed Coupling
• Conn. Size in. Gas: 7/8
• Conn. Size in. Liq.: 3/8
