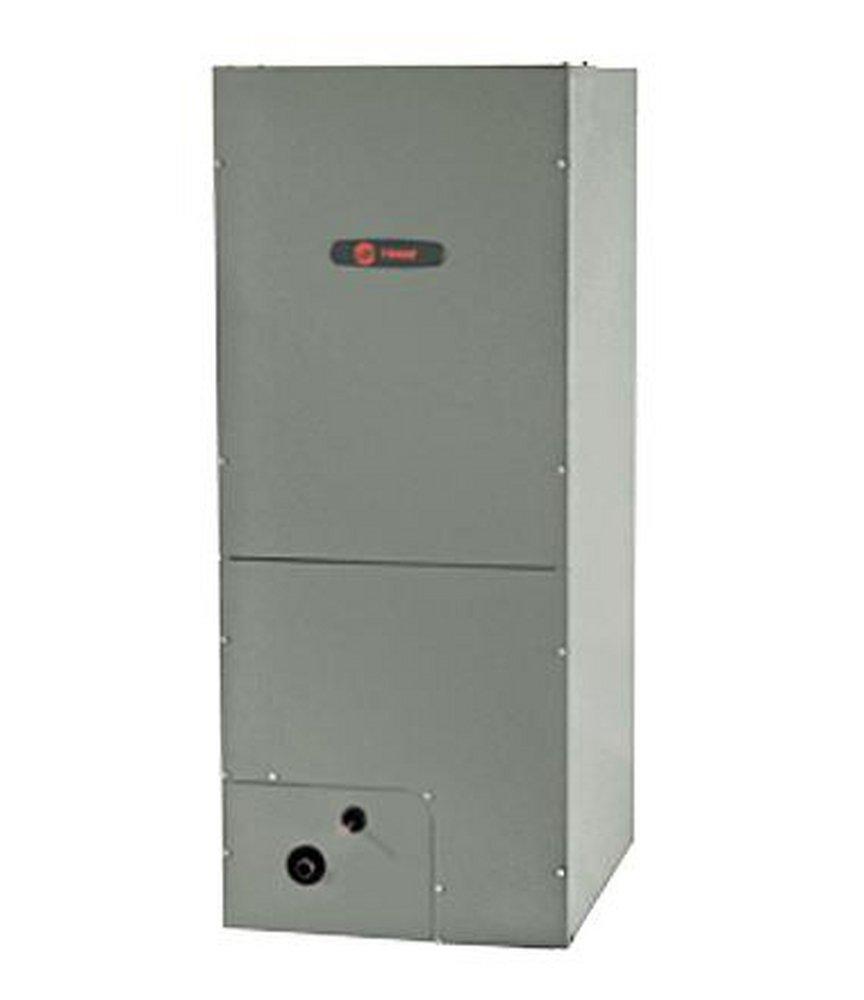

Trane TEM4A0B31M31SB M Series 2.5 Ton Convertible Air Handler

Product Description

The TRANE TEM4A0B31M31SB M Series convertible air handler offers efficient and consistent airflow. Designed for long-term performance, it features all-aluminum coils, a corrosion-resistant galvanized steel cabinet, and a no-rust polymer drain pan. It provides quiet operation and reduces energy costs. This air handler is compatible with air conditioners and heat pumps.

• Features a variable speed blower motor
• Offers Comfort-R humidity control
• Equipped with an all-aluminum coil

Product Highlights

Durable construction ensures long-term performance and efficient operation. Ideal for residential HVAC systems.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TEM4A0B31M31SB

Technical Specifications

• Blower Type: Multispeed
• Refrigerant: R-410A
• Tonnage: 1.5 - 2.5 Ton
• Volts: 208/230V
• Width: 18-1/2 in
• Cooling Capacity (btu/h): 30,000
• Cooling Capacity (Tons): 2.5
• Height (in): 46.75
• Length (in): 21.13
• Liquid Line Size (in): 3/8
• Metering Device: TXV
• Product Sector: Residential
• Refrigerant Type: R410a
• Return Air Opening (in): 16.75 X 18.75
• Series: TEM4
• Suction Line Size (in): 3/4
• Supply Air Opening (in): 16.50 X 12.15
• Voltage Rating (VAC): 208-230/1
• Communicating: No
• A2L Compatible: No
• AMP: 2.8
• BTU: 30000
• BTU Cooling Rating: 30000 Btu/h
• CFM: 1200 ft3/min
• Coil Type: Plate Fin
• Collection: M Series
• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Depth: 21-1/10 in
• Fan Speeds: 5
• Horsepower: 1-1/3 hp
• Liquid Line (OD): 3/8 in
• MBH: 30
• Material: Steel
• Max CFM: 1200 cfm
• Phase: Single Phase
• Power Source: Electric
• Refrigeration Control Type: TXV
• Stages: Single
• Suction Line (OD): 3/4 in
• UL Listed: Yes
